Rittal VX 8608.000 Enclosure - IP55 protection
Part Number: 8608000
Manufacturer
Rittal
Part number
8608000
Alt Part Number
VX 8608.000
Quick Summary
Rittal VX 8608.000 Enclosure protects electrical installations in industrial automation environments. When space is tight or maintenance cycles are long, this enclosure design minimizes interior installation time and reduces downtime. It meets IP55 ingress protection, IK10 impact resistance, and UL 50E Type 1/NEMA 1 conformity, supporting safe, compliant operation in harsh environments. Built from sheet steel with a primed finish and powder-coated exterior, it pairs with standard mounting rails and Rittal accessories to optimize panel builds and lifecycle costs.
Product Information
Extended Description

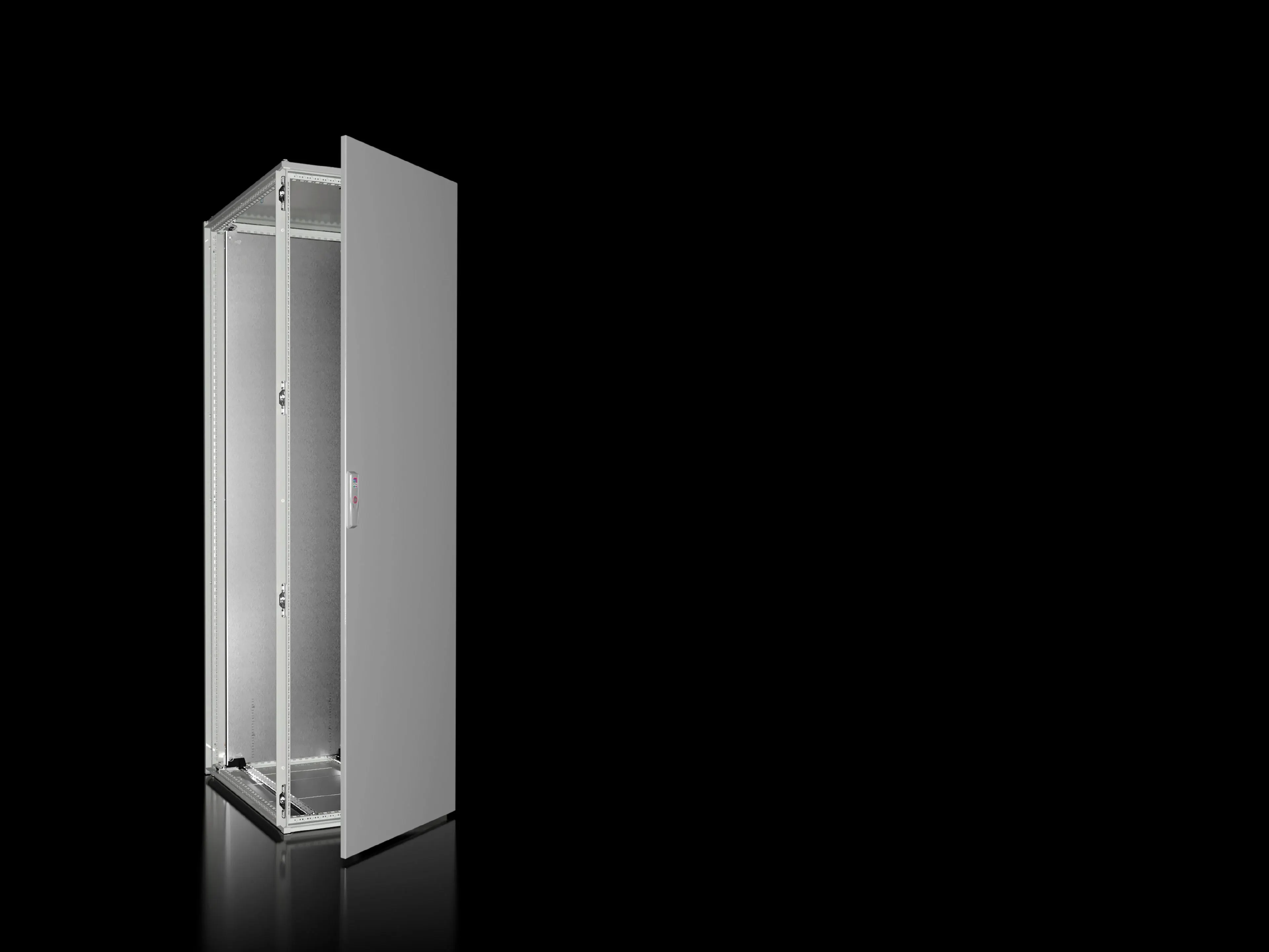

8608000 Rittal: VX Baying enclosure system, WHD: 600x2000x800 mm, sheet steel, with mounting plate, single door at the front
Article number
VX 8608.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 800 mm
Dimensions mounting plate (W x H)
499 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
106 kg
PCF per pack (cradle-to-gate)
261.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177813748
ETIM 8
EC000261
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 600x2000x800 mm, sheet steel, with mounting plate, single door at the front
The VX 8608.000 Baying Enclosure System provides a compact, efficient interior layout with a front-opening door, mounting plate, and gland plates that streamline panel assembly and serviceability. This feature drives measurable efficiency gains by reducing field labor and accelerating commissioning on automation lines, while maintaining a robust enclosure standard for control panels in manufacturing environments. The sheet-steel construction (1.5 mm framing, 1.5 mm roof, 2.0 mm door) delivers predictable mechanical strength, aiding reliability in high-vibration settings and enabling straightforward heat-management planning in standard industrial cabinets. Its powder-coated exterior (textured) and zinc-plated gland plates extend maintenance intervals and lower corrosion-related costs. The included 2 punched rails (18 x 39 mm) and mounting plate enable rapid integration of subassemblies and PLC/drive components with minimized enclosure footprint. Color is RAL 7035 to ensure visibility and compatibility with plant engineering standards. Door orientation is flexible—hinged on the right by default but swappable to the left—allowing best-fit installation on existing layouts. Overall, the enclosure supports scalable panel builds for evolving automation architectures while preserving compliance with UL 50E Type 1, NEMA 1, and IK10 requirements.
Get a Quick Quote for a Rittal 8608000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8608000?
Enquire Now
FAQs
The VX 8608.000 ships with a mounting plate, two punched rails (18 x 39 mm), gland plates, and a door that hinges on the right by default but can be swapped to the left. This flexible configuration supports rapid integration of PLCs, drives, and terminal blocks, while allowing installation to adapt to existing plant layouts. The front door design provides straightforward access for maintenance without disturbing wiring behind the rear panel, minimizing panel downtime during servicing.
IP55 denotes protection against dust ingress to a level that won’t interfere with operation and protection against water jets from any direction. In practical terms, VX 8608.000 is well-suited for clean rooms and moderately exposed indoor environments, and it can withstand wash-down or splashes in non-outdoor factory settings. For harsh outdoor exposure, additional sealing or enclosure placement planning should be considered, but the core enclosure provides reliable protection for standard industrial controls.
Yes. The supply includes a door hinged on the right, with the option to swap to the left. This flexibility makes it easier to adapt to confined spaces, cable routing routes, and existing panel designs without requiring a full enclosure replacement. The process is supported by the included mounting hardware and gland plate arrangement, ensuring a clean reorientation with minimal downtime.
The VX 8608.000 is designed to meet UL 50E Type 1 and NEMA 1 requirements, with IK10 impact resistance and IP55 protection. It is constructed to satisfy typical European and North American industry standards for industrial control cabinets, delivering reliable compliance for safety and performance in automated facilities. The powder-coated exterior and primed interior also support long-term reliability in harsh manufacturing environments.
Each VX 8608.000 enclosure unit weighs about 106 kg, as specified per pack. This weight informs shipping planning, crane or pallet handling, and on-site installation scheduling. While heavy, the included rails and mounting plate simplify pre-assembly, and the sturdy sheet-steel construction minimizes the risk of damage in transit. Proper lifting gear and team coordination should be used to optimize delivery and installation efficiency.
