Rittal VX 8608.450 Enclosure System - C4-H, IP55, IK10
Part Number: 8608450
Manufacturer
Rittal
Part number
8608450
Alt Part Number
VX 8608.450
Quick Summary
Rittal VX 8608.450 enclosure system delivers rugged, ready-to-install housing for electrical panels in industrial automation applications. Engineers often struggle with corrosion risk, tight install space, and complex interior wiring when upgrading control cabinets. It features corrosion protection to DIN EN ISO 12944 C4-H, IP55 sealing, and IK10 impact resistance to safeguard critical assets. UL 50E Type 1 compatibility supports safety and regulatory compliance in North American environments. Combined with flexible mounting, door orientation, and standard rails, it accelerates installs and reduces maintenance costs for OEMs and integrators. Its baying enclosure system design also aids efficient interior installation for panel builders.
Product Information
Extended Description

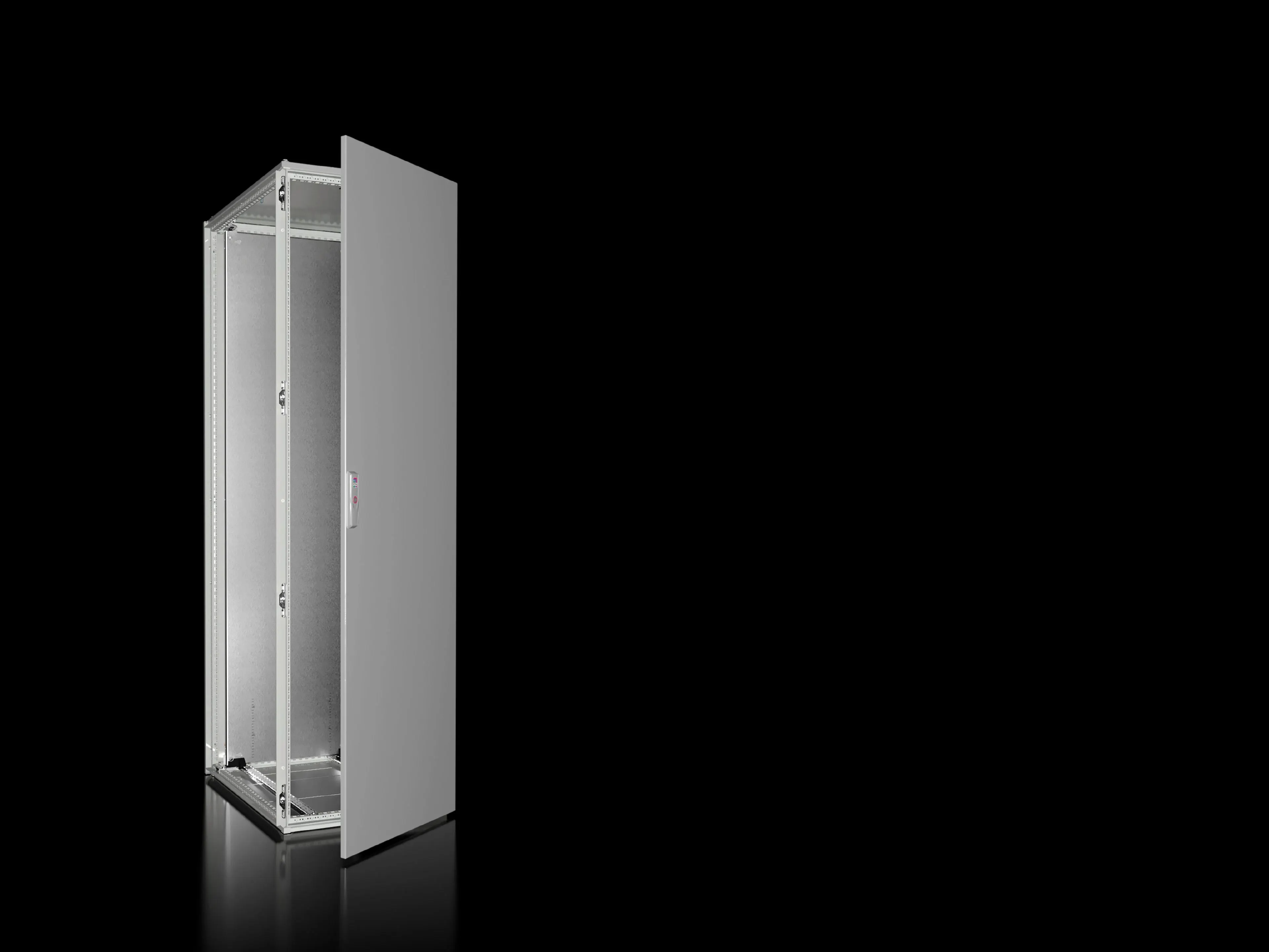

8608450 Rittal: VX baying enclosure system C4-H, WxHxD: 600x2000x800 mm, sheet steel, with mounting plate, single door at the front
Article number
VX 8608.450
Design
Surface coating to DIN EN ISO 12944, corrosion protection class C4-H
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Zinc-magnesium and powder coating | Door, roof and rear panel: Powder-coated, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 800 mm
Dimensions mounting plate (W x H)
499 mm x 1,896 mm
Protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
EAN
4028177993600
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX baying enclosure system C4-H, WxHxD: 600x2000x800 mm, sheet steel, with mounting plate, single door at the front
Material and protection are engineered for longevity in harsh environments; the enclosure frame, roof, door, rear panel, gland plates, and mounting plate use sheet steel with precise thicknesses, delivering durable structure that minimizes maintenance. This translates to lower lifecycle costs and dependable performance in factory floors, outdoor kiosks, or harsh industrial spaces. Surface finish combines zinc-magnesium coating and powder coating for corrosion resistance and consistent aesthetics, helping meet industry standards while reducing repaint cycles. The IP55 ingress protection and IK10 impact rating protect internal components from dust, water jets, and physical shocks, improving uptime and safety for critical automation panels. Dimensions and a dedicated mounting plate (499 x 1,896 mm) simplify layout planning and enable rapid interior wiring with two punched rails (18 x 39 mm), streamlining installation. The right-handed door can be swapped to left, offering flexible mounting options for confined or retrofitted cabinets. This enclosure is compatible with baying configurations, enabling scalable growth across assembly lines and data centers while maintaining compliance with DIN EN ISO 12944 and UL 50E.
Get a Quick Quote for a Rittal 8608450
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8608450?
Enquire Now
FAQs
It includes a mounting plate (499 x 1,896 mm) and two punched rails (18 x 39 mm). The door hinges on the right by default and can be swapped to the left to suit space constraints and cabling routes.
Yes. The enclosure supports UL 50E Type 1 ratings, enabling safe enclosure use in North American electrical installations and helping meet regulatory requirements for control cabinets.
It offers IP55 protection against dust and water ingress, IK10 impact resistance, and a C4-H corrosion protection finish, ensuring durability in demanding industrial environments.
Industrial automation, machine-building, OEM panel shops, and data-center cabinet applications benefit from its robust protection, flexible mounting, and scalable baying design for future expansion.
Door orientation flexibility, included mounting rails, and a pre-defined mounting plate layout shorten install time, while the corrosion-protected finish reduces repaint and maintenance costs over the cabinet lifecycle.
