Rittal 8609040 TS Divider Panel System - IP54 CE
Part Number: 8609040
Quick Summary
The TS divider panel 8609040 protects individual enclosure cells while preserving cooling paths in TS enclosures. Engineers often wrestle with space constraints and heat management inside compact control cabinets. IP54 protection helps guard against dust and splashes, while CE conformity supports European compliance; ETIM 9 EC002525 and ECLASS 8.0 provide streamlined procurement data. By standardizing interior layouts with this divider, maintenance is simpler, service intervals are predictable, and spare parts are reduced. The product’s symmetry enables rear mounting of components when needed, delivering flexible cooling and cleaner cabinet finishes. Used with enclosure accessories and modular frame systems, it supports scalable automation projects and clearer total-cost-of-ownership improvements.
Product Information
Extended Description

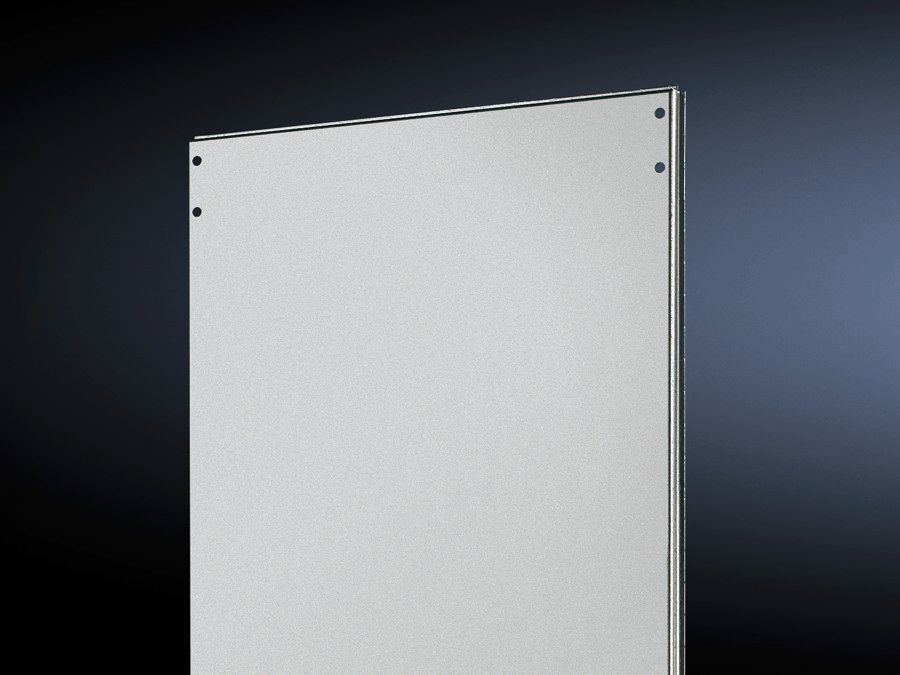

8609040 Rittal: TS Divider panel, for TS, for WD: 2000x400 mm
Article number
TS 8609.040
Product description
For shielding individual enclosure cells. All-round, double fold for stability and to hold the seal. Thanks to the symmetry of the enclosure frame, divider panels may also be fitted at the rear, dimensions permitting.
Applications
Notches in the corners and half-way up the sides permit the use of angular baying brackets and baying brackets, even with a divider panel fitted.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type:Â TS 8 | Height:Â = 2,000 mm | Depth:Â = 400 mm
Installation options
For mounting on the outer mounting level
Assembly instruction
The divider panel may also be fitted at the rear. This allows, e.g. frequency converters for heat dissipation to be installed in a divider panel with the cooling units facing outwards and protected/finished off with a cover.
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
9 kg
Customs tariff number
94039910
EAN
4028177208735
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
TS Divider panel, for TS, for WD: 2000x400 mm
Feature: 1.5 mm thick sheet steel, zinc-plated divider panel. Impact: Delivers durable shielding with corrosion resistance suitable for harsh industrial environments, minimizing replacement costs. Application: Designed to fit TS 8 enclosures with WD 2000x400 mm, ensuring reliable performance across production lines. Feature: All-round, double fold for stability and seal retention. Impact: Increases structural rigidity and maintains enclosure seals, reducing air leakage and moisture ingress. Application: Compatible with angular baying brackets and standard TS mounting on outer or rear positions. Feature: Symmetrical frame system enables rear mounting. Impact: Enables efficient space utilization and allows cooling units to face outward for better heat dissipation. Application: Particularly useful when installing VFDs or power supplies behind the divider. Feature: IP protection category IP 54. Impact: Provides dust and splash resistance suitable for industrial protection requirements. Application: Applies to enclosures up to height 2000 mm and depth 400 mm. Feature: Supply includes assembly parts; packs of 1. Impact: Simplifies installation and reduces procurement steps. Application: Ready-to-install for TS 8, WD 2000x400 mm.
Get a Quick Quote for a Rittal 8609040
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609040?
Enquire Now
FAQs
The TS 8609040 divider panel is designed to fit TS 8 enclosures with a 2000x400 mm working depth. Start by aligning the panel on the outer mounting level, secure using standard TS hardware, and ensure the double-fold edge seals are engaged to preserve IP54 protection. If rear mounting is required for cooling modules, position the divider accordingly and attach with the provided assembly parts.
Key specs include TS 8609.040 article number, 1.5 mm sheet steel, zinc-plated finish, IP54 protection per IEC 60 529, weight 9 kg per pack, and 1 piece per pack. It is designed for TS enclosures with WD 2000x400 mm and is compatible with outer mounting level installations.
Yes. The panel’s symmetry enables rear mounting of cooling components and its IP54 rating provides protection against dust and splashes, supporting cooling strategies for drives and VFDs. The option to fit the panel rearward helps direct airflow away from sensitive devices while maintaining enclosure integrity.
IP54 protection is specified per IEC 60 529, ensuring dust and splash resistance. The product data also references ETIM 9 EC002525 and ECLASS 8.0 classifications, with CE conformity where applicable to European markets, aiding compliant procurement and integration in automation projects.
By standardizing interior layouts, the divider panel reduces spare parts variety and simplifies maintenance, improving uptime and serviceability. Its durable zinc-plated steel and ready-to-install packaging cut installation time, while rear-mounting options optimize cooling, contributing to lower total cost of ownership over the system’s life cycle.
