Rittal TS 8609.050 Divider Panel for TS Enclosures - IP54
Part Number: 8609050
Quick Summary
Rittal TS 8609.050 Divider Panel shields individual enclosure cells, keeping control circuits neatly separated within TS enclosures. Without a robust divider, wiring tangles, heat zones, and maintenance planning become unpredictable. Its IP54 protection, zinc-plated surface, and ETIM/ECLASS alignment help you meet industry standards. By standardizing interior layouts and simplifying mounting, you reduce assembly time and warranty risk. This makes it a reliable choice for TS 8 enclosures in automation bays where space and heat management matter. Customers gain predictable maintenance schedules and improved fault isolation, reducing downtime. Key features align with your factory's preventive maintenance programs and space planning. Operational efficiency improves as conductor routing remains clear and accessible.
Product Information
Extended Description

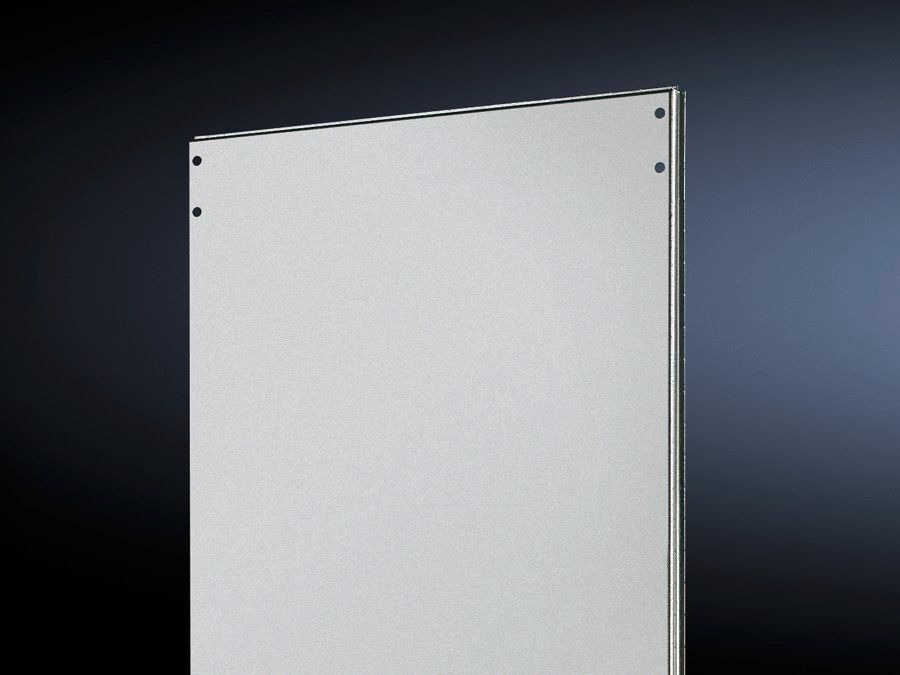

8609050 Rittal: TS Divider panel, for TS, for WD: 2000x500 mm
Article number
TS 8609.050
Product description
For shielding individual enclosure cells. All-round, double fold for stability and to hold the seal. Thanks to the symmetry of the enclosure frame, divider panels may also be fitted at the rear, dimensions permitting.
Applications
Notches in the corners and half-way up the sides permit the use of angular baying brackets and baying brackets, even with a divider panel fitted.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type: TS 8 | Height: = 2,000 mm | Depth: = 500 mm
Installation options
For mounting on the outer mounting level
Assembly instruction
The divider panel may also be fitted at the rear. This allows, e.g. frequency converters for heat dissipation to be installed in a divider panel with the cooling units facing outwards and protected/finished off with a cover.
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
11.9 kg
Customs tariff number
94039910
EAN
4028177208742
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
TS Divider panel, for TS, for WD: 2000x500 mm
Feature → The divider panel uses a robust all-round design with a double fold to increase rigidity and seal integrity across the enclosure interior. Business Impact → This stability translates into fewer flex-related gaps and a more reliable barrier between control circuits, especially in dynamic industrial environments. Application → Ideal for shielded TS enclosures where interior organization directly influences performance and serviceability. Feature → Material and finish deliver long-term durability: 1.5 mm thick sheet steel with zinc plating. Business Impact → Reduces corrosion-related maintenance, lowers replacement frequency, and enhances hygiene and cleaning ease in manufacturing settings. Application → Suitable for dusty, humid or wash-down environments common in automation and electrical cabinets. Feature → Dimension compatibility for TS 8 WD 2000x500 mm. Business Impact → Standardizes cabinet configurations, streamlines BOM management, and minimizes on-site customization. Application → Works seamlessly across multi-bay systems with consistent interior partitioning. Feature → Installation options including outer mounting level and rear mounting. Business Impact → Speeds up installation, enables heat-dissipation-oriented layouts, and supports cooling unit orientation without compromising enclosure finish. Application → Facilitates flexible layouts in drives and control cabinet assemblies. Feature → Notches in corners and mid-sides support angular baying brackets. Business Impact → Enables scalable rack and bracket configurations without additional components, reducing lead times. Application → Helps designers realize complex layouts with minimal tool-on-site effort. Feature → IP54 protection and included assembly parts. Business Impact → Provides reliable dust and water spray protection, improving uptime in standard factory environments while simplifying procurement. Application → Ideal for typical TS 8 enclosure installations in industrial automation.
