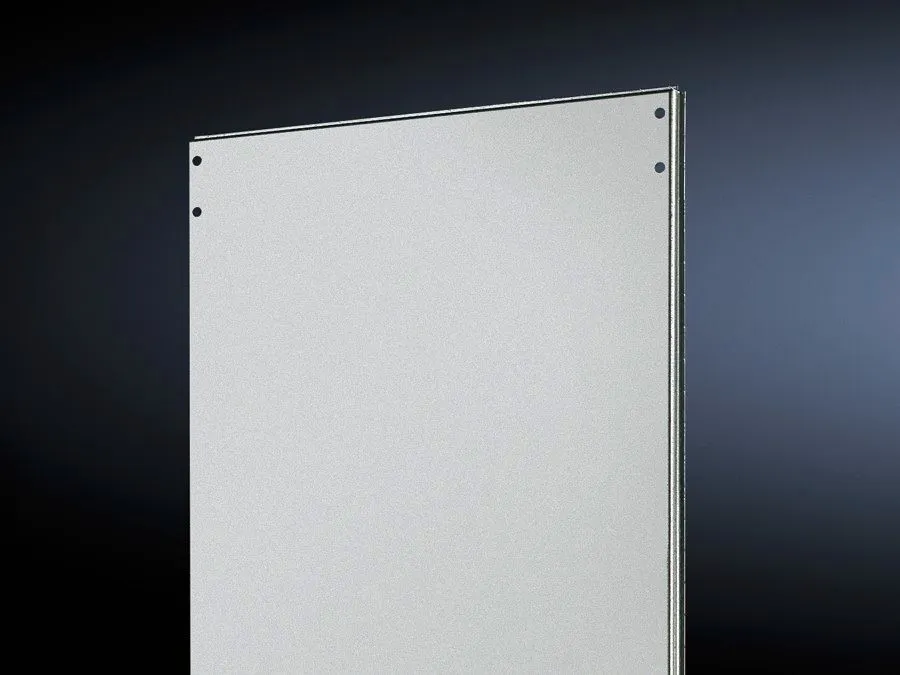

Rittal 8609.080 Divider Panel - IP54
Part Number: 8609080
Quick Summary
Rittal 8609.080 Divider Panel is a shielding component for TS enclosure cells, enabling clean separation within TS enclosures. This helps engineers prevent cross-talk and manage airflow in tight control-panel spaces. Key standards support robust performance, including IP 54 protection and corrosion-resistant zinc-plated steel, ensuring long-term reliability in harsh environments. The divider panel plugs into TS frames with an outer mounting option, delivering a cost-effective, scalable solution for organized enclosures. By integrating this accessory, you gain safer layouts, easier maintenance, and improved heat management without sacrificing accessibility or expansion potential.
Product Information
Extended Description
8609080 Rittal: TS Divider panel, for TS, for WD: 2000x800 mm
Article number
TS 8609.080
Product description
For shielding individual enclosure cells. All-round, double fold for stability and to hold the seal. Thanks to the symmetry of the enclosure frame, divider panels may also be fitted at the rear, dimensions permitting.
Applications
Notches in the corners and half-way up the sides permit the use of angular baying brackets and baying brackets, even with a divider panel fitted.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type:Â TS 8 | Height:Â = 2,000 mm | Depth:Â = 800 mm
Installation options
For mounting on the outer mounting level
Assembly instruction
The divider panel may also be fitted at the rear. This allows, e.g. frequency converters for heat dissipation to be installed in a divider panel with the cooling units facing outwards and protected/finished off with a cover.
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
19.2 kg
Customs tariff number
94039910
EAN
4028177208766
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
TS Divider panel, for TS, for WD: 2000x800 mm
Feature → Business Impact → Application: The divider panel is all-round and double-folded to enhance stability and seal retention, which translates to better enclosure integrity and reduced ingress risk in demanding environments. This supports compliance with enclosure standards while enabling faster, more predictable assembly on production lines where space is at a premium. It’s ideal for segregating components in TS 8 enclosures with WD 2000x800 mm, such as motor drives or frequency converters, where neat separation simplifies service and airflow control. Feature → Business Impact → Application: The symmetry of the TS frame system allows the divider to be mounted at the rear, enabling flexible layouts and more efficient heat dissipation by facing cooling units outward. This reduces hotspots and supports cleaner cable routing in compact control cabinets. Feature → Business Impact → Application: Material robustness—sheet steel 1.5 mm and zinc-plated finish—delivers corrosion resistance and long-term durability, lowering maintenance costs and downtime in industrial settings. Feature → Business Impact → Application: IP 54 protection provides reliable dust and splash resistance, meeting common factory floor requirements and protecting sensitive electronics behind the panel during routine maintenance and cleaning. Feature → Business Impact → Application: Assembly parts supplied simplify procurement and installation, reducing project lead times and enabling faster upgrades to existing TS-based systems, with predictable compatibility at the outer mounting level.
Get a Quick Quote for a Rittal 8609080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609080?
Enquire Now
FAQs
The TS 8609.080 divider panel is designed for TS 8 enclosures with WD 2000x800 mm. It installs on the outer mounting level and includes assembly parts, allowing straightforward addition to existing cabinets without major rework.
Constructed from 1.5 mm sheet steel and zinc-plated for corrosion resistance, the panel carries IP 54 protection, safeguarding enclosure interiors from dust ingress and splashes during routine factory cleaning and operation.
By enabling rear mounting of cooling units and separating heat-generating devices, the panel supports outward-facing cooling and better airflow, reducing hotspots and extending component life in drive cabinets and other heat-sensitive assemblies.
In addition to the IP 54 rating per IEC 60529, the divider panel is listed under ETIM EC002525 and ECLASS 27182102, helping procurement systems and technicians categorize and specify the part consistently across supply chains.
The supply includes assembly parts and notches that support bracket integration, enabling quick installation. The rear-fit option helps keep service access clear and maintains a neat, service-friendly layout for ongoing maintenance.
