Rittal 8609110 TS Divider Panel - 9 Cut-Outs
Part Number: 8609110
Quick Summary
The TS divider panel is a module-plate organizer designed for TS enclosures and 1800x600 mm bays. Engineers often struggle with limited mounting options and the need to rework interiors for different connectors or busbars. This part aligns with ETIM 9 EC002525 and ECLASS 8.0 27182102 classifications, offering robust, standardized compatibility through its zinc-plated 2.0 mm steel construction. By enabling modular plate configurations and straightforward mounting, it delivers faster assembly, improved wiring organization, and lower total cost of ownership, while supporting scalable upgrades and simplified spare-part management.
Product Information
Extended Description

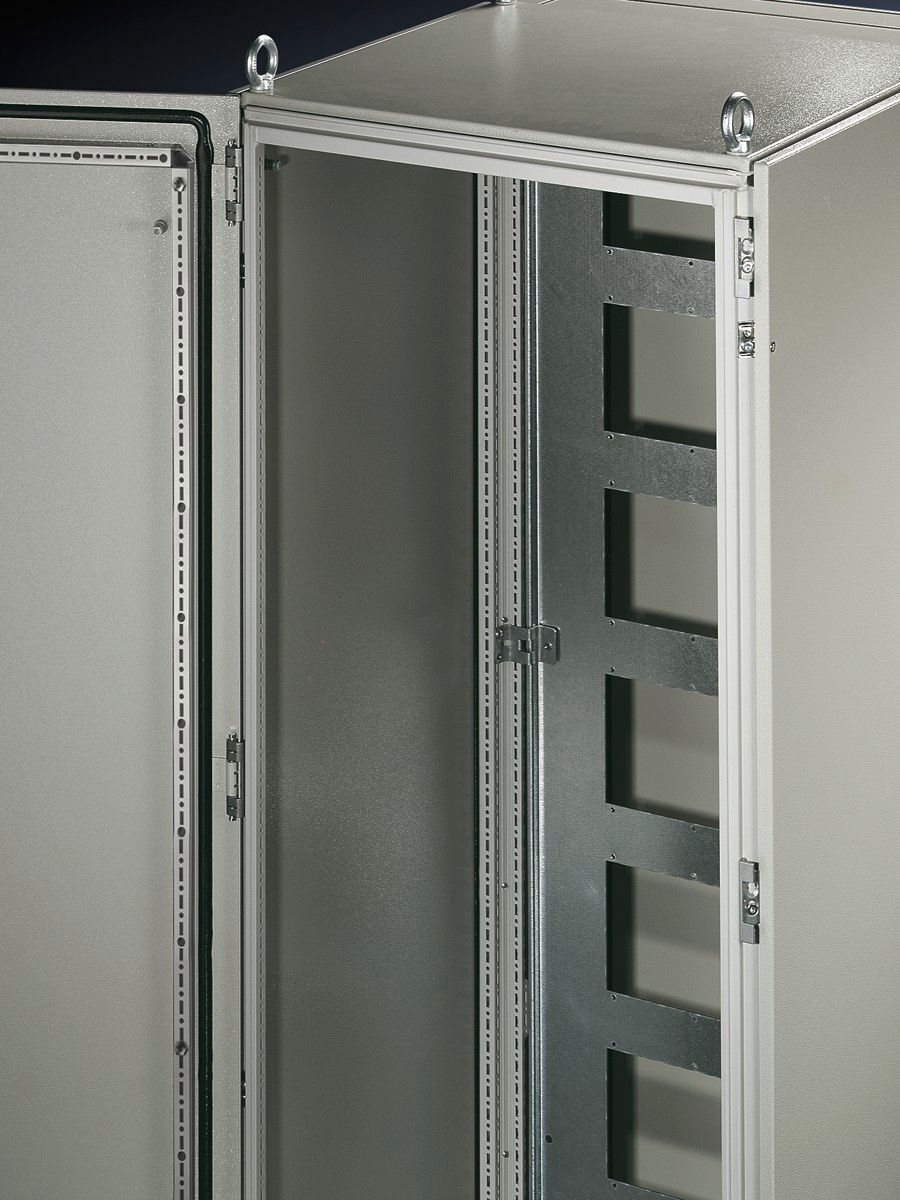

8609110 Rittal: TS Divider panel, for module plates, for WD: 1800x600 mm, Number of cut-outs: 9
Article number
TS 8609.110
Product description
With cut-outs for the installation of module plates for connectors or for cable entry, and also for the entry of busbar systems and other installed equipment. All-round, double fold for stability and to hold the seal. Thanks to the symmetry of the enclosure frame, divider panels may also be fitted at the rear, dimensions permitting.
Benefits
More options: The cut-outs of a divider panel are individually equipped with module plates for 16-pole or 24-pole connectors, with module plates for cable entry and with solid module plates.
Applications
Notches in the corners and half-way up the sides permit the use of angular baying brackets and baying brackets, even with a divider panel fitted.
Material
Sheet steel, 2.0 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts and multi-tooth screws M5 x 12 mm for mounting the module plates.
To fit
Enclosure type:Â TS | Height:Â = 1,800 mm | Depth:Â = 600 mm
Installation options
For mounting on the outer mounting level
Packs of
1 pc(s).
Weight/pack
9.95 kg
Customs tariff number
94039910
EAN
4028177211735
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
TS Divider panel, for module plates, for WD: 1800x600 mm, Number of cut-outs: 9
Feature: Cut-outs for module plates, cable entry, and busbar integration provide a highly adaptable interior. Business Impact: This flexibility reduces bespoke machining, speeds configuration, and cuts rework costs. Application: Ideal for TS enclosures sized 1800x600 mm in automated control cabinets. Feature: All-round double fold around the panel delivers stability and seals against dust and moisture. Business Impact: Improves enclosure integrity in harsh environments, reducing maintenance and the risk of unplanned downtime. Application: Suitable for service bays where module plates and sealed interfaces are essential. Feature: Symmetric frame design enables rear mounting of divider panels when space permits. Business Impact: Increases mounting flexibility and simplifies cable routing and diagnostics. Application: Supports flexible layouts in mid-sized TS enclosures. Feature: 2.0 mm sheet steel with zinc-plated finish delivers robust strength and corrosion resistance. Business Impact: Extends panel life in factory environments, reducing replacement costs and downtime. Application: Suitable for industrial automation cabinets exposed to humidity and washdowns. Feature: Supplied with assembly parts and M5 x 12 mm multi-tooth screws. Business Impact: Speeds installation, ensures connector compatibility, and minimizes sourcing delays. Application: Ideal for rapid panel retrofit and OEM assembly lines. Feature: Designed to fit TS enclosure type with WD 1800 x 600 mm and nine cut-outs. Business Impact: Streamlines procurement with a ready-to-install divider panel and standard footprint. Application: Useful for integrators building scalable, modular control cabinets.
Get a Quick Quote for a Rittal 8609110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609110?
Enquire Now
FAQs
The divider panel is designed for TS enclosures with a 1800x600 mm footprint and comes with mounting hardware suitable for the outer mounting level. Begin by aligning the panel, secure with the included M5 x 12 mm screws, and attach module plates or busbar accessories as required. The design supports rear mounting if space permits, enabling flexible layouts.
Key specifications include a 1800x600 mm footprint, nine cut-outs for module plates and cable entry, 2.0 mm sheet steel construction, and a zinc-plated surface. It weighs 9.95 kg per pack and is supplied with mounting parts and M5 x 12 mm screws for quick installation on TS enclosures.
Yes. The panel is engineered with cut-outs that support installation of module plates for 16 or 24-pole connectors, cable entry plates, and solid module plates. This flexibility enables organized busbar layouts and cleaner cable management within TS enclosures.
The product aligns with ETIM 9 EC002525 and ECLASS 8.0 27182102 for interoperability. It also carries the EAN 4028177211735 and customs tariff 94039910, supporting accurate procurement, cataloging, and cross-referencing in supply chains.
By standardizing interior layouts, the TS 8609110 reduces bespoke fabrication, speeds assembly, and lowers rework costs. The robust zinc-plated steel resists corrosion in industrial environments, extending service life and decreasing downtime, which translates to faster project delivery and lower long-term maintenance expenses.
