Rittal 8609120 TS Divider panel - 2.0 mm zinc-plated
Part Number: 8609120
Quick Summary
Rittal TS Divider panel is designed to divide enclosures and host module plates for connectors in WD 2000x500 mm systems. Installers often face crowded panels, limited mounting options, and messy cable entries; this divider panel adds symmetry and dedicated cut-outs to simplify wiring. The data ties to ETIM EC002525 and ECLASS 27182102 classifications, supporting standardized procurement and integration, while the zinc-plated 2.0 mm sheet steel delivers durability in demanding electrical installations. Designed for module plates, cable entry, and busbar integration, it enhances installation flexibility, reduces time-to-assemble, and improves maintenance accessibility in control panels and switchgear. With compatibility for outer mounting levels and ready-to-fit assembly parts, it delivers measurable life-cycle value for industrial automation projects.
Product Information
Extended Description
8609120 Rittal: TS Divider panel, for module plates, for WD: 2000x500 mm, Number of cut-outs: 10
Article number
TS 8609.120
Product description

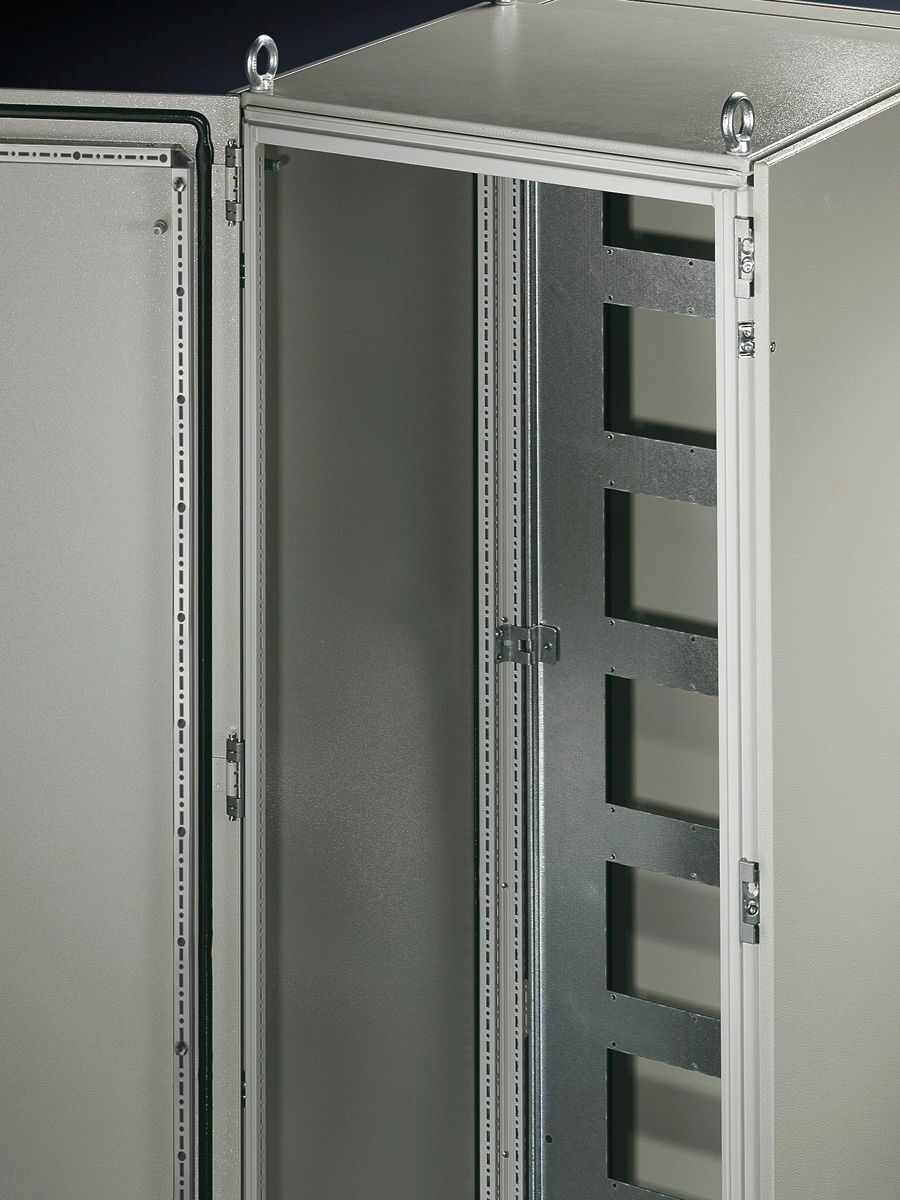

With cut-outs for the installation of module plates for connectors or for cable entry, and also for the entry of busbar systems and other installed equipment. All-round, double fold for stability and to hold the seal. Thanks to the symmetry of the enclosure frame, divider panels may also be fitted at the rear, dimensions permitting.
Benefits
More options: The cut-outs of a divider panel are individually equipped with module plates for 16-pole or 24-pole connectors, with module plates for cable entry and with solid module plates.
Applications
Notches in the corners and half-way up the sides permit the use of angular baying brackets and baying brackets, even with a divider panel fitted.
Material
Sheet steel, 2.0 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts and multi-tooth screws M5 x 12 mm for mounting the module plates.
To fit
Enclosure type:Â TS | Height:Â = 2,000 mm | Depth:Â = 500 mm
Installation options
For mounting on the outer mounting level
Packs of
1 pc(s).
Weight/pack
7.8 kg
Customs tariff number
94039910
EAN
4028177211742
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
TS Divider panel, for module plates, for WD: 2000x500 mm, Number of cut-outs: 10
Feature → Business Impact → Application: Cut-outs for module plates and cable entry, plus for busbar systems, provide flexible wiring and secure mounting, reducing rework and ensuring reliable connections in TS enclosures. This supports faster initial builds and easier future upgrades in control panels and electrical cabinets. Feature → Business Impact → Application: All-round, double fold for stability and seal ensures long-lasting enclosure integrity, lowering maintenance costs and improving environmental protection in harsh industrial settings. Feature → Business Impact → Application: 2.0 mm sheet steel with zinc-plated finish delivers durable, corrosion-resistant panels suitable for factory floors and outdoor installations where moisture and dust are concerns. Feature → Business Impact → Application: Includes assembly parts and M5 x 12 mm screws streamlines installation, cuts procurement steps, and standardizes hardware across projects, which reduces lead times and inventory complexity. Feature → Business Impact → Application: Ten cut-outs support module plates for 16-pole or 24-pole connectors, cable-entry plates, and solid module plates, providing versatile configuration options for automation skids and panel boards. Feature → Business Impact → Application: Notches for baying brackets enable angular mounting compatibility with existing rack systems, expanding layout options without additional components, which translates to faster deployment and scalable expansions.
