Rittal TS 8609.130 Divider Panel - 2.0 mm Zinc-Plated
Part Number: 8609130
Quick Summary
The TS 8609.130 Divider Panel is a Rittal divider panel that provides ready-cut spaces for module plates and cable entry in TS enclosures. Engineers often struggle with misaligned cut-outs and time-consuming modifications when installing controls in large cabinets. While the data references ETIM 9 EC002525 and ECLASS 8.0 27182102, it does not explicitly list SIL, CE, or IP ratings. This divider panel offers efficient modularity with an all-round double fold for stability and a symmetrical frame that permits rear mounting where space allows. Its zinc-plated 2.0 mm steel construction supports robust, long-term installations, complementing module-plate configurations and busbar systems to reduce downtime and procurement complexity.
Product Information
Extended Description

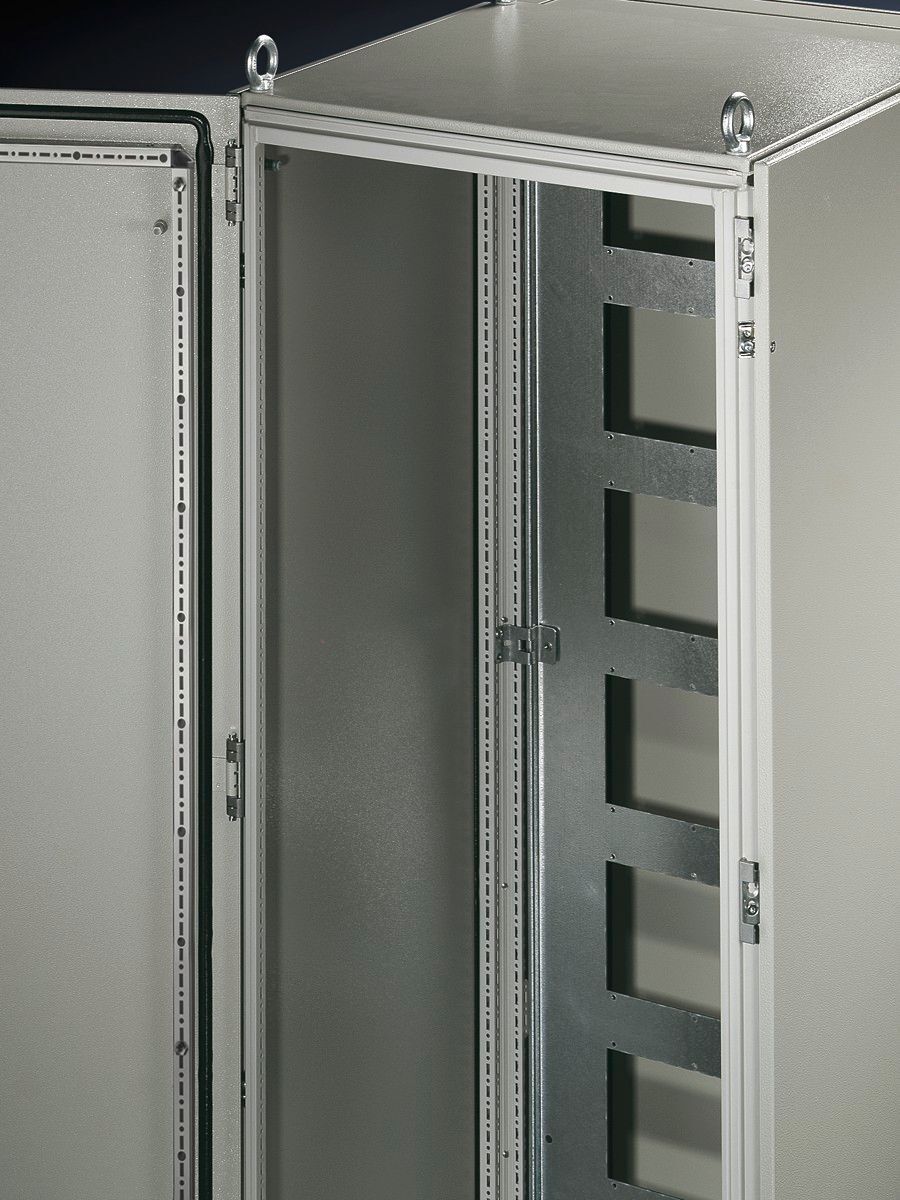

8609130 Rittal: TS Divider panel, for module plates, for WD: 2000x600 mm, Number of cut-outs: 10
Article number
TS 8609.130
Product description
With cut-outs for the installation of module plates for connectors or for cable entry, and also for the entry of busbar systems and other installed equipment. All-round, double fold for stability and to hold the seal. Thanks to the symmetry of the enclosure frame, divider panels may also be fitted at the rear, dimensions permitting.
Benefits
More options: The cut-outs of a divider panel are individually equipped with module plates for 16-pole or 24-pole connectors, with module plates for cable entry and with solid module plates.
Applications
Notches in the corners and half-way up the sides permit the use of angular baying brackets and baying brackets, even with a divider panel fitted.
Material
Sheet steel, 2.0 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts and multi-tooth screws M5 x 12 mm for mounting the module plates.
To fit
Enclosure type:Â TS | Height:Â = 2,000 mm | Depth:Â = 600 mm
Installation options
For mounting on the outer mounting level
Packs of
1 pc(s).
Weight/pack
11.3 kg
Customs tariff number
94039910
EAN
4028177211759
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
TS Divider panel, for module plates, for WD: 2000x600 mm, Number of cut-outs: 10
Feature to business impact to application: The divider panel’s cut-outs are individually designed for module plates serving 16-pole or 24-pole connectors, cable-entry plates, and solid plates, enabling precise customization for control cabinets and reducing field modification time in routine panel builds. This translates to faster commissioning, improved wiring clarity, and lower installation labor costs during system upgrades and expansions. Application: Ideal for TS enclosure projects where space for module plates and busbar systems must be rapidly adapted without sacrificing enclosure integrity or seal quality. Feature: All-round, double-fold design for stability and sealing. Impact: Enhanced rigidity and weather-sealing performance decrease ingress risk and extend service life in harsh industrial environments. Application: Use on outer mounting levels where multiple access points are needed and robust enclosure performance is required. Feature: 2.0 mm sheet steel with zinc-plated finish. Impact: Superior durability and corrosion resistance, reducing maintenance cycles and total cost of ownership. Application: Suitable for factory floors, panel rooms, and automated lines requiring dependable metalwork. Feature: Includes assembly parts and M5 x 12 mm screws. Impact: Streamlined install with guaranteed mounting hardware, lowering procurement lead times. Application: Quick integration of module plates and cable-entry solutions, especially in projects with tight schedules. Feature: Compatible with WD 2000x600 mm TS enclosures and 10 cut-outs. Impact: Flexible fit across standard TS cabinets, enabling scalable configurations for future expansion. Application: Supports modular design strategies and easy reconfiguration of control panels.
Get a Quick Quote for a Rittal 8609130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609130?
Enquire Now
FAQs
The divider panel is designed for TS enclosures with WD 2000x600 mm dimensions and outer mounting level installation. It accommodates module plates, cable-entry, and busbar configurations, while including mounting hardware to streamline the fitment process and reduce field modification time.
Notches accommodate module plates for 16-pole or 24-pole connectors, plus plates for cable entry and solid module plates. The 10 cut-outs enable flexible distribution of components, simplifying wiring layouts and simplifying future reconfigurations.
Yes. The supply includes assembly parts and multi-tooth screws M5 x 12 mm to mount the module plates, ensuring a straightforward installation and consistent hardware across projects.
The all-round, double-fold construction provides enhanced stability and helps maintain a reliable seal. The symmetry of the enclosure frame also supports rear mounting when dimensions permit, improving overall enclosure integrity during vibration and thermal cycling.
The data lists ETIM 9 EC002525 and ECLASS 8.0 27182102, which aid procurement and classification. Explicit CE, SIL, or IP ratings are not specified in the provided data, so verify your project’s regulatory requirements against the enclosure system and regional standards before deployment.
