Rittal 8609150 TS Module Panel - for 16-pole connectors
Part Number: 8609150
Manufacturer
Rittal
Part number
8609150
Alt Part Number
SZ 8609.150
Quick Summary
The TS Module panel 8609150 is a modular mounting solution for 16-pole connectors used in industrial enclosures. Engineers often struggle with aligning module plates on divider panels, the 25 mm pitch pattern, and VX/TS rails during installation. It aligns with ETIM 7.0 EC000211 and ECLASS 8.0 27142421, delivering reliable data classification and interoperability across engineering and procurement workflows. With a zinc-plated 2 mm sheet steel construction and a seal included, this panel reduces field adjustments while supporting scalable, cost-efficient paneling for enclosures. Using this panel improves installation speed and reliability, enabling maintenance teams to swap connectors without reworking mounting hardware.
Product Information
Extended Description
8609150 Rittal: TS Module panel, for 16-pole connectors
Article number
SZ 8609.150
Design
for 16-pole connectors
Product description

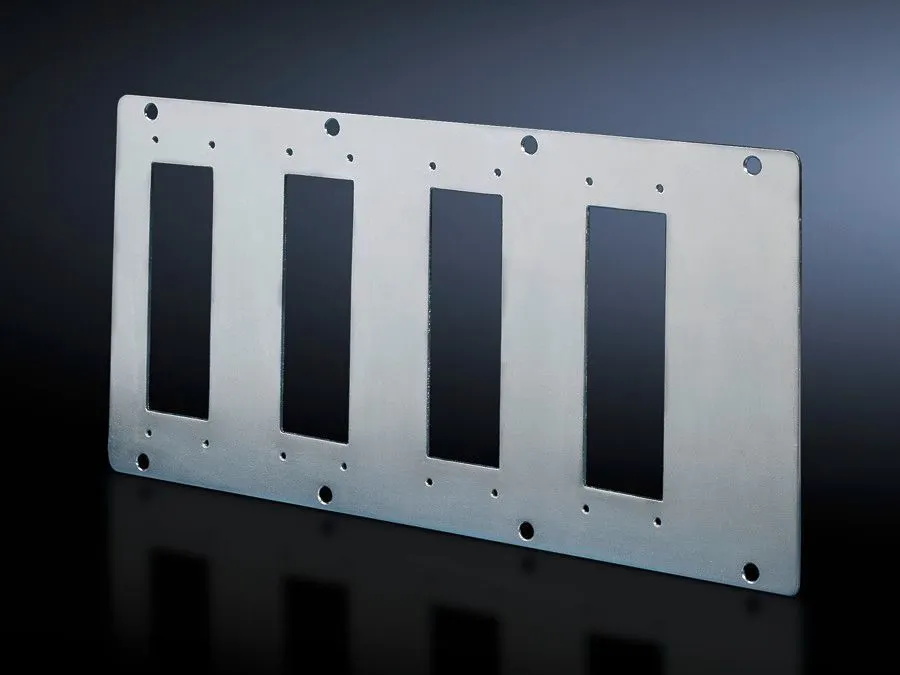

With cut-outs to accommodate connectors. Module plates can be attached to divider panels for module plates.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Seal included
Number of cut-outs
4
Packs of
1 pc(s).
Weight/pack
0.78 kg
PCF per pack (cradle-to-gate)
3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177211773
ETIM 7.0
EC000211
ECLASS 8.0
27142421
Product description
TS Module panel, for 16-pole connectors
The 2 mm sheet steel construction provides a rigid, corrosion-resistant backbone for enclosure interiors, and the zinc-plated finish enhances long-term durability in demanding environments. This robustness translates into reduced maintenance downtime and lower replacement costs, while a 0.78 kg pack weight simplifies handling on-site. Four cut-outs are precisely sized for 16-pole connectors, and the included seal preserves enclosure integrity, reducing the need for additional adapters and field modifications. The panel is designed for mounting on divider panels, the 25 mm pitch pattern of the enclosure, and VX/TS system rails, delivering installation flexibility that accelerates retrofits and expansions. Alignment with ETIM 7.0 EC000211 and ECLASS 8.0 27142421 supports seamless data exchange for procurement and engineering. Sustainability metrics show cradle-to-gate PCF of 3 kg CO2 eq (Cat B). Seal, packaging, and standard tariff and EAN codes further streamline logistics. Overall, the solution reduces wiring complexity, speeds assembly, and enables scalable enclosure configurations for control cabinets and industrial enclosures.
