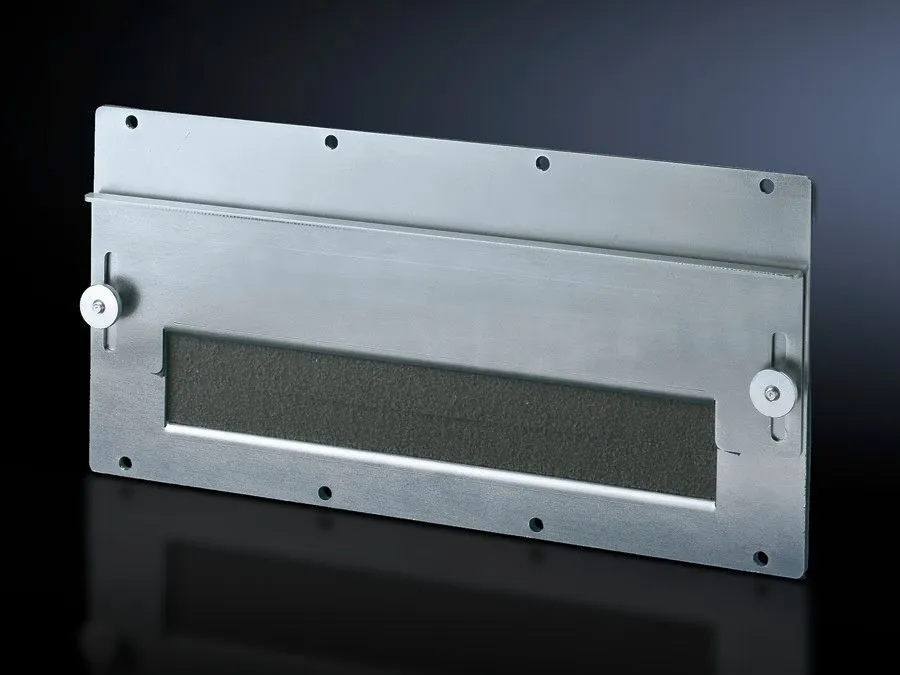

Rittal 8609170 TS Module Panel - for cable entry
Part Number: 8609170
Manufacturer
Rittal
Part number
8609170
Alt Part Number
SZ 8609.170
Quick Summary
Rittal 8609170 TS Module Panel is designed for cable entry in electrical enclosures. Engineers often wrestle with unsealed entry, cramped routing, and time-consuming installation. Notes: ETIM 9 EC000211 and ECLASS 8.0 27142421 are listed for classification, but CE, IP, or SIL certifications are not provided here—verify with the official datasheet. This module uses sheet steel, 2 mm thick, and zinc-plated surface with adjustable brackets and a foam cable clamp strip to ensure sealed, secure routing. Together, these features reduce field labor, improve cable management, and support scalable deployments in industrial infrastructure. For procurement and lifecycle planning, the compact 1.5 kg per-pack weight and included seal parts add practical value.
Product Information
Extended Description
8609170 Rittal: TS Module panel, for cable entry
Article number
SZ 8609.170
Design
for cable entry
Product description
For the entry of pre-assembled cables. Sealed, secure routing is achieved via adjustable angle brackets with inserted foam cable clamp strip. Fixed bracket, punched, for cable clamping.
Material
Sheet steel, 2 mm
Surface finish
Zinc-plated
Supply includes
Seal and assembly parts
Packs of
1 pc(s).
Weight/pack
1.5 kg
PCF per pack (cradle-to-gate)
5.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177211797
ETIM 9
EC000211
ECLASS 8.0
27142421
Product description
TS Module panel, for cable entry
Feature → Business Impact → Application: The SZ 8609.170 TS Module Panel provides sealed, secure routing through adjustable angle brackets and a foam cable clamp strip, delivering improved ingress protection and cleaner cable organization. This translates to faster installation, lower rework risk, and more reliable control-panel performance in demanding environments. Application-wise, it supports the entry of pre-assembled cables in Rittal enclosures, reducing field wiring time and ensuring consistent seal integrity. Feature → Business Impact → Application: Made from sheet steel, 2 mm thick, with a zinc-plated finish, the panel offers durable construction and corrosion resistance, improving long-term reliability and reducing maintenance costs in harsh settings. Application: Ideal for industrial automation cabinets where durability and predictable performance matter. Feature → Business Impact → Application: The kit includes seal and assembly parts and uses fixed punched brackets for robust cable clamping, enabling scalable deployments across multi-pack installations with predictable labor costs. Application: Supports standardized, repeatable mounting during panel upgrades. Feature → Business Impact → Application: PCF data (5.7 kg CO2 eq per pack, Cat B) provides a transparent sustainability footprint, assisting procurement teams with lifecycle assessments and compliance reporting. Application: Suitable for sustainability-focused projects and regulated environments.
Get a Quick Quote for a Rittal 8609170
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609170?
Enquire Now
FAQs
Yes. The SZ 8609.170 is a TS Module panel designed for cable entry in Rittal enclosure systems. It uses 2 mm sheet steel, zinc-plated finish, and includes a seal and assembly parts. It features adjustable angle brackets and a fixed punched bracket for cable clamping, enabling straightforward integration with common mounting plates and standard conduit entries.
Key specs include a design for cable entry, a sheet steel body of 2 mm thickness, zinc-plated surface, and a weight of 1.5 kg per pack. Supply includes a seal and assembly parts. The product is designed for sealed, secure routing of pre-assembled cables using adjustable brackets and a foam cable clamp strip, ensuring reliable ingress protection and organization.
Industries relying on robust control panels and electrical infrastructure, such as manufacturing automation, process industries, and data centers, benefit from this panel. It simplifies entry for pre-assembled cables, improves sealing and routing, reduces field wiring time, and supports scalable cabinet upgrades in environments demanding durability and consistent installation quality.
The data set references ETIM 9 EC000211 and ECLASS 8.0 27142421 for classification, but it does not list CE, IP, or SIL certifications. For regulatory compliance specifics, consult the official datasheet and confirm with your procurement or compliance team before certification-dependent deployments.
The module offers sealed, secure routing with adjustable brackets and a foam clamp, reducing maintenance risk and rework. With a weight of 1.5 kg per pack and included seals, the solution enables faster upgrades and consistent installations. PCF data (5.7 kg CO2 eq per pack, Cat B) supports lifecycle assessments and sustainability reporting.
