Rittal VX 8609.201 Divider panel - IP54
Part Number: 8609201
Quick Summary
Rittal VX 8609.201 Divider panel shields individual enclosure cells in VX enclosures, enabling clean separation and efficient cooling. For engineers facing tight space and heat management challenges, misaligned panels and inadequate sealing can throttle performance. With IP 54 protection and standard data references such as ETIM EC002525 and ECLASS 27182102, this divider supports reliable procurement and cross‑system compatibility. Constructed from 1.5 mm zinc‑plated sheet steel and shipped with assembly parts, it delivers durable service, easy installation, and scalable integration for evolving control architectures. This makes it a practical, cost‑effective choice for panelized protection in factory automation and process control environments.
Product Information
Extended Description

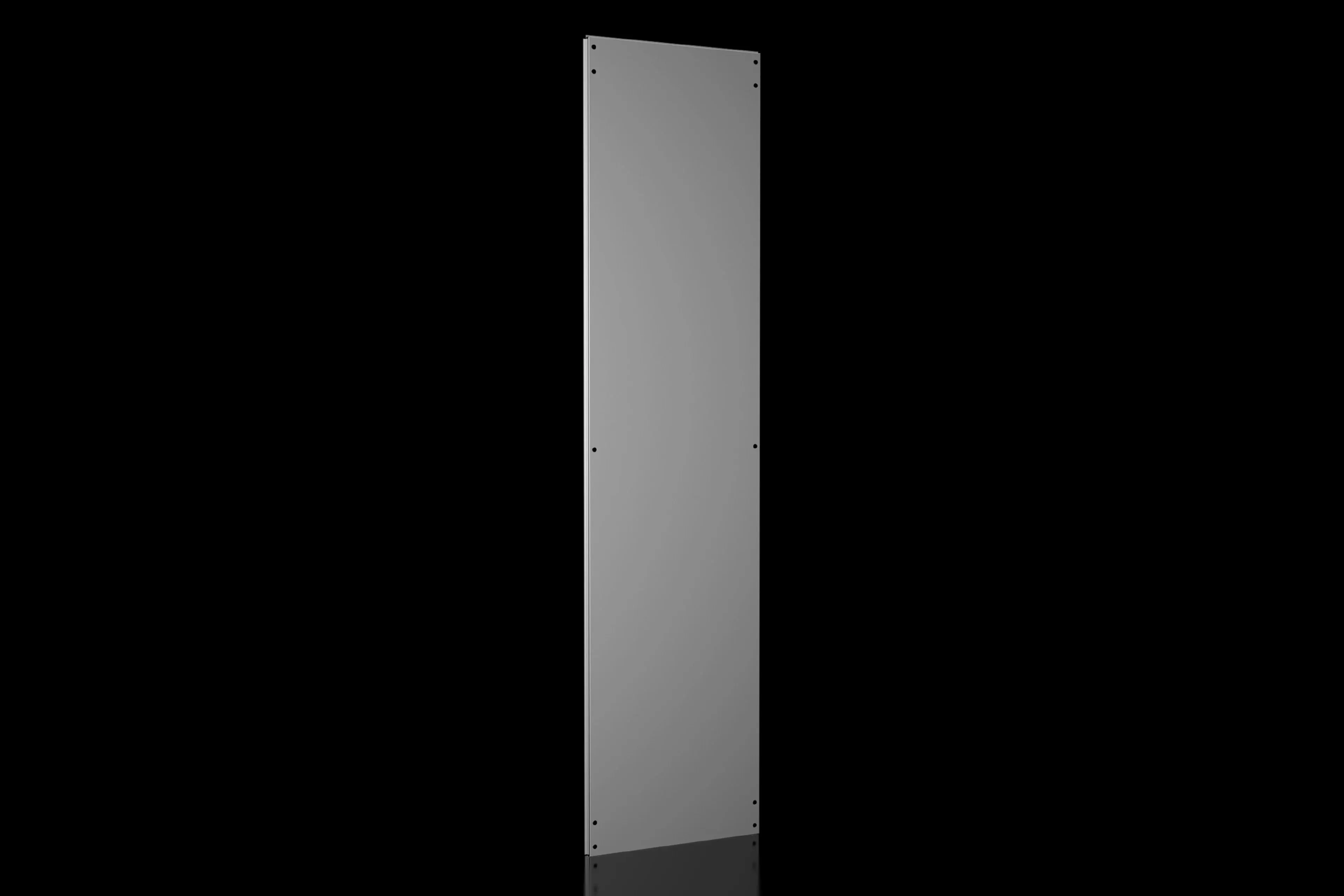

8609201 Rittal: VX Divider panel, for HD: 1800x500 mm
Article number
VX 8609.201
Product description
For shielding individual enclosure cells. Thanks to the symmetry of the frame system, the divider panel can also be used at the rear. All-round, double fold for stability and to hold the seal.
Benefits
The divider panel may also be fitted at the rear. This allows, e.g. frequency converters for heat dissipation to be installed in a divider panel with the cooling units facing outwards and protected/finished off with a cover.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type: VX | Height: = 1,800 mm | Depth: = 500 mm
Installation options
For mounting on the outer mounting level
Assembly instruction
For baying in combination with a divider panel, an internal baying bracket 8617500 or external baying bracket 8617502 is required
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
10 kg
Customs tariff number
94039910
EAN
4028177817753
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
VX Divider panel, for HD: 1800x500 mm
Feature: Symmetric frame system allows the divider to be used at the rear, enabling flexible cooling and service access. Business Impact: Improves heat management and facilitates maintenance by enabling access from multiple sides without reconfiguring the enclosure. Application: VX HD enclosures in process automation where cooling units face outward and component spacing must be optimized. In practice, this reduces downtime during service and supports scalable cabinet designs. Feature: All-round, double fold design for stability and to hold the seal. Business Impact: Enhances structural integrity and sealing performance, reducing ingress paths for dust and moisture. Application: Critical in harsh manufacturing environments where reliability and enclosure integrity are paramount, especially with frequency converters or drive units nearby. This results in longer service intervals and lower replacement costs. Feature: Material and finish — sheet steel, 1.5 mm, zinc-plated. Business Impact: Delivers durable, corrosion-resistant panels suitable for factory floors and damp locations. Application: Suitable for outdoor-rated or damp indoor installations without frequent maintenance cycles, lowering total cost of ownership. Feature: IP protection category IP 54. Business Impact: Provides dust and splash protection for internal components, supporting safe operation and compliance with standard industrial protections. Application: Essential for VX enclosures used in humid or dusty environments, ensuring consistent performance of mounted equipment. Feature: Installation options and mounting compatibility — outer mounting level, with assembly parts included. Business Impact: Simplifies field installation and reduces project lead times. Application: Compatible with internal baying bracket 8617500 or external baying bracket 8617502 for bayed setups; minimizes special tooling and training. Feature: Pack and weight — 1 pack, weight 10 kg; EAN 4028177817753; Customs tariff 94039910. Business Impact: Manageable logistics and straightforward stocking in procurement catalogs. Application: Ideal for one-off replacements or modular growth of existing VX systems, with predictable handling in warehousing.
