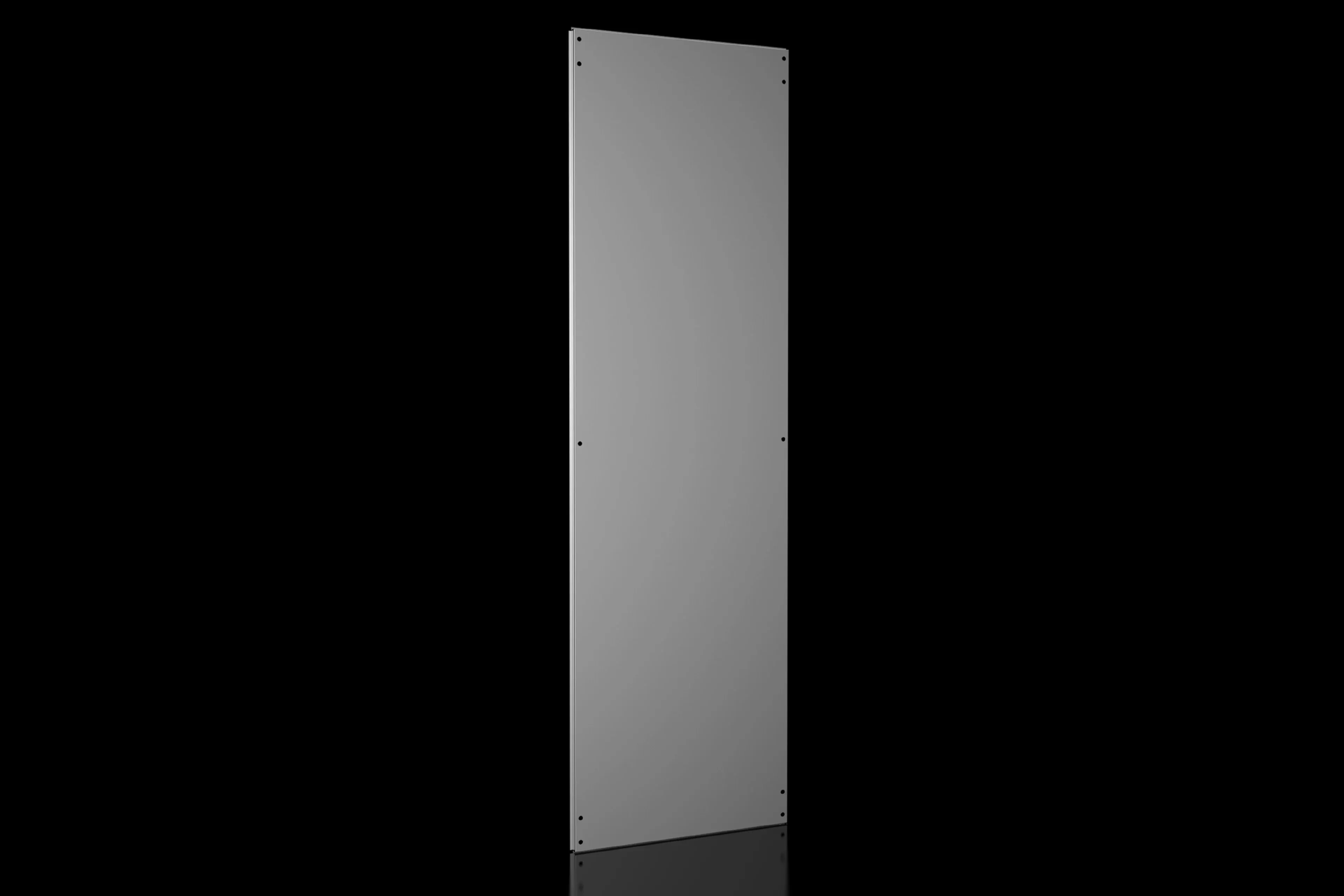

Rittal VX 8609.202 Divider Panel for VX Enclosures - IP54
Part Number: 8609202
Quick Summary
Rittal VX 8609.202 divider panel shields individual enclosure cells within VX enclosures. Engineers frequently contend with crowded panels, uneven cooling, and sealing challenges that complicate commissioning. Rittal VX 8609.202 supports rear mounting, outer mounting level installation, and compatibility with internal or external baying brackets, addressing layout constraints. Its IP 54 protection, zinc-plated 1.5 mm steel, and standard supply of assembly parts ensure durable performance in industrial environments. Together with VX enclosure compatibility and long-term cost savings from reduced maintenance, this divider panel fits as a strategic enclosure accessory for automation projects.
Product Information
Extended Description
8609202 Rittal: VX Divider panel, for HD: 1800x600 mm
Article number
VX 8609.202
Product description
For shielding individual enclosure cells. Thanks to the symmetry of the frame system, the divider panel can also be used at the rear. All-round, double fold for stability and to hold the seal.
Benefits
The divider panel may also be fitted at the rear. This allows, e.g. frequency converters for heat dissipation to be installed in a divider panel with the cooling units facing outwards and protected/finished off with a cover.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type:Â VX | Height:Â = 1,800 mm | Depth:Â = 600 mm
Installation options
For mounting on the outer mounting level
Assembly instruction
For baying in combination with a divider panel, an internal baying bracket 8617500 or external baying bracket 8617502 is required
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
12.5 kg
Customs tariff number
94039910
EAN
4028177817760
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
VX Divider panel, for HD: 1800x600 mm
Feature: Shielding and rear-mount capability. Business Impact: Improves cooling efficiency and enclosure integrity by allowing heat-generating components to be positioned with cooling units facing outward, while maintaining a sealed exterior. Application: Ideal for frequency converters and other heat-sensitive devices within VX enclosures, enabling better airflow management and easier service access. Feature: Robust material and finish. Business Impact: The 1.5 mm sheet steel with zinc-plated surface delivers corrosion resistance and long-term durability in harsh industrial environments. Application: Suitable for factory floors and outdoor-controlled environments where reliability matters. Feature: Flexible installation options. Business Impact: Outer mounting level compatibility plus optional internal or external baying brackets (8617500 / 8617502) reduce integration time and minimize wiring disruption. Application: Streamlines modular enclosure configurations in growing systems. Feature: IP54 protection. Business Impact: Ensures reliable operation against dust ingress and water splashes, lowering risk of downtime. Application: Supports applications with moderate moisture or splash exposure in electrical cabinets. Feature: Complete procurement package. Business Impact: Includes assembly parts and clearly defined packs (1 pc) with traceable GTIN and EAN for hassle-free purchasing. Application: Simplifies stocking, reordering, and ERP integration in maintenance plans.
Get a Quick Quote for a Rittal 8609202
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609202?
Enquire Now
FAQs
Yes. The panel is designed to fit VX enclosures at 1800 mm height and 600 mm depth. For baying in combination with a divider panel, internal baying bracket 8617500 or external baying bracket 8617502 is required to secure the assembly and maintain sealing integrity.
The panel uses sheet steel 1.5 mm thick with a zinc-plated surface for corrosion resistance. It carries an IP protection rating of IP 54, and ships in packs of 1 piece with a weight of 12.5 kg per pack, including assembly parts for installation.
Yes. The divider panel can be fitted at the rear to enable cooling units to face outward, with a cover for a finished appearance. This accommodates heat dissipation needs while preserving enclosure integrity.
Key standards include IP 54 protection and procurement classifications ETIM 9 EC002525 and ECLASS 8.0 27182102, which facilitate cross-system compatibility and supplier qualification within ERP workflows.
The divider panel ships as 1 piece per pack, with a weight of 12.5 kg per pack. Supplies include necessary assembly parts, and the GTIN/EAN is 4028177817760, with customs tariff 94039910 to aid logistics and customs clearance.
