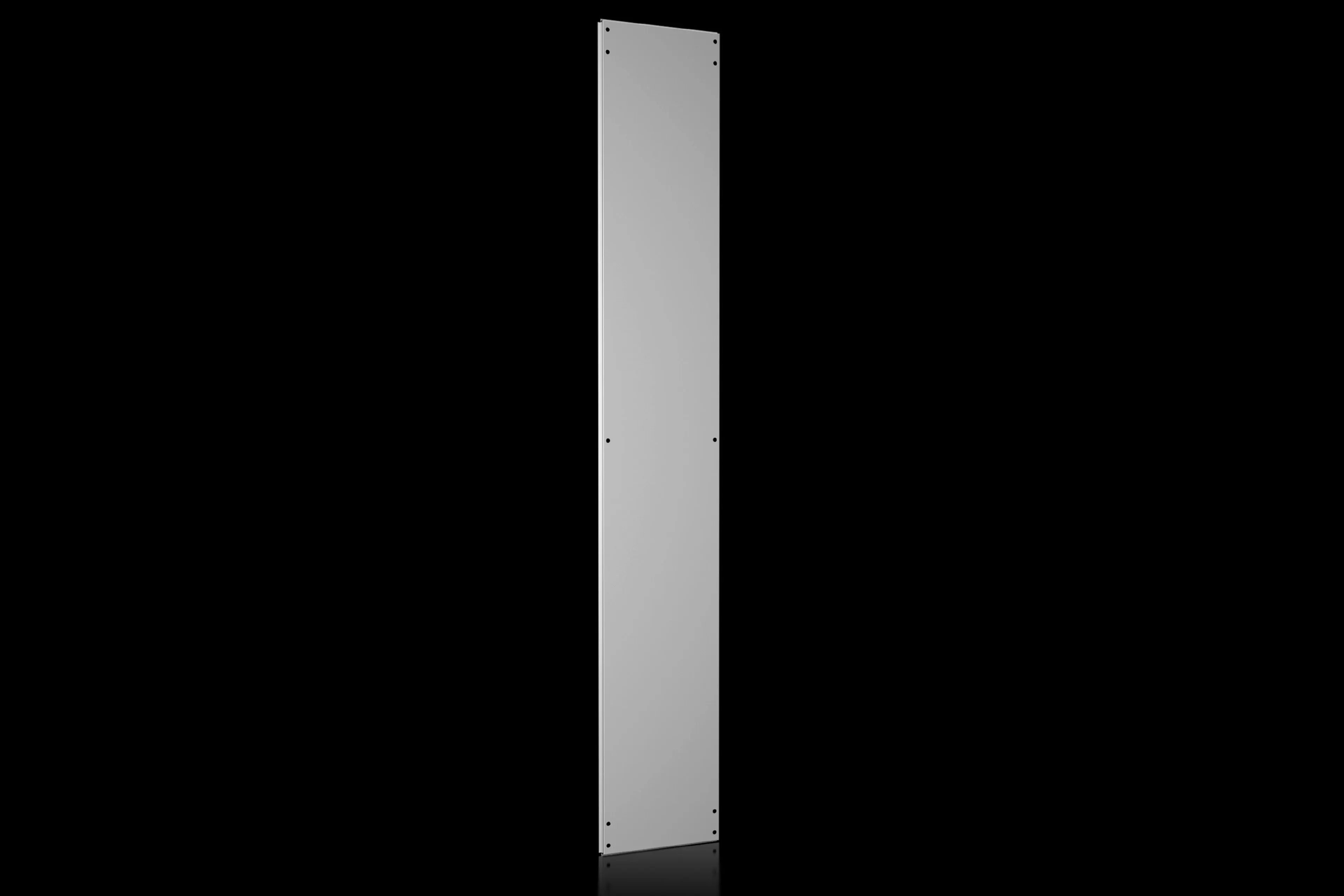

Rittal VX 8609.203 Divider Panel - IP54
Part Number: 8609203
Quick Summary
Rittal VX 8609.203 divider panel shields individual enclosure cells, enabling clean separation in compact switchgear enclosures. In crowded cabinets, heat buildup and signal cross-talk can drive maintenance costs and downtime, complicating lifecycle management. Designed for rugged industrial environments, this panel delivers IP54 protection under IEC 60529, uses 1.5 mm zinc-plated sheet steel, and fits VX frames. Aligned with ETIM EC002525 and ECLASS 27182102 classifications, it supports consistent part data and easier procurement, while its rear-mount versatility speeds installs and reduces retrofit risk. In practice, users gain predictable heat dissipation and a cleaner, serviceable enclosure layout that improves maintenance planning and uptime.
Product Information
Extended Description
8609203 Rittal: VX Divider panel, for HD: 2000x400 mm
Article number
VX 8609.203
Product description
For shielding individual enclosure cells. Thanks to the symmetry of the frame system, the divider panel can also be used at the rear. All-round, double fold for stability and to hold the seal.
Benefits
The divider panel may also be fitted at the rear. This allows, e.g. frequency converters for heat dissipation to be installed in a divider panel with the cooling units facing outwards and protected/finished off with a cover.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type:Â VX | Height:Â = 2,000 mm | Depth:Â = 400 mm
Installation options
For mounting on the outer mounting level
Assembly instruction
For baying in combination with a divider panel, an internal baying bracket 8617500 or external baying bracket 8617502 is required
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
8.92 kg
Customs tariff number
94039910
EAN
4028177817777
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
VX Divider panel, for HD: 2000x400 mm
Feature → Business Impact → Application: The VX divider panel offers symmetrical frame compatibility, enabling rear mounting when needed. This flexibility reduces cabinet depth constraints and simplifies heat management for complex assemblies such as frequency converters. Feature → Business Impact → Application: Material and surface quality—1.5 mm sheet steel with a zinc-plated finish—delivers rugged durability in harsh environments. By resisting corrosion and wear, it lowers replacement costs and extends service intervals in critical control cabinets. Feature → Business Impact → Application: IP54 protection provides reliable performance against dust and splashes in mixed climates. This protective level supports stable operation when cooling units face outward or when divider panels shield sensitive drives. Installation flexibility is enhanced by mounting on the outer mounting level and choosing internal 8617500 or external 8617502 baying brackets as needed. The included assembly parts reduce on-site sourcing and speed up project timelines. Compatibility and dimensions ensure a precise fit for VX enclosures sized at 2000x400 mm; each pack contains 1 panel and ships with a known weight of 8.92 kg, aiding logistics and inventory control. This predictability supports standardization across lines. Practical use-cases include shielding enclosure cells while allowing rear mounting for heat-dissipating components; covers protect seals and finish, improving aesthetics and serviceability. In real-world installations, this translates to lower maintenance risk and smoother upgrades.
Get a Quick Quote for a Rittal 8609203
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609203?
Enquire Now
FAQs
To install, mount the divider panel on the outer mounting level of the VX enclosure and align with the enclosure’s mounting holes. For baying in groups, use internal baying bracket 8617500 or external baying bracket 8617502 as required. The unit ships with assembly parts to streamline on-site mounting and ensure proper seal and rigidity.
Key specs include 1.5 mm sheet steel construction with a zinc-plated finish, IP54 protection under IEC 60529, and suitability for VX enclosures sized 2000x400 mm. Each pack is 1 piece and weighs 8.92 kg, with EAN 4028177817777 and Customs tariff 94039910 for international shipments.
Yes. The panel can be rear-mounted or rear-fitted to position cooling units outward, improving heat dissipation for devices like frequency converters while maintaining a sealed and finished enclosure face, which is especially valuable in heat-sensitive automation lines.
The product aligns with IP54 protection per IEC 60529. It also corresponds to ETIM 9 EC002525 and ECLASS 8.0 27182102 classifications, supporting standardized data exchange and procurement workflows.
The divider panel offers a durable 1.5 mm zinc-plated steel build, reduces risk of dust ingress with IP54, and enables rear mounting for better heat management. These features translate to lower maintenance downtime, safer operation, and a cleaner, more maintainable cabinet layout, contributing to a lower total cost of ownership over the system lifecycle.
