Rittal VX 8609.204 Divider Panel - IP54 Zinc-Plated
Part Number: 8609204
Quick Summary
Rittal VX 8609.204 divider panel shields individual enclosure cells in VX frames, enabling clean, modular cabinet layouts for VX enclosures. For engineers, heat buildup and wiring clutter are common pain points; this panel supports rear mounting to optimize cooling while keeping a finished exterior. The solution carries IP54 protection and CE-compliance, with ETIM 9 EC002525 and ECLASS 8.0 classifications that simplify procurement data. By enabling flexible baying and easy installation, it delivers faster assembly, easier service access, and improved reliability in automated machinery and industrial control panels. The VX divider panel is a practical, value-added accessory that aligns with modern standards for safe, scalable cabinet design.
Product Information
Extended Description

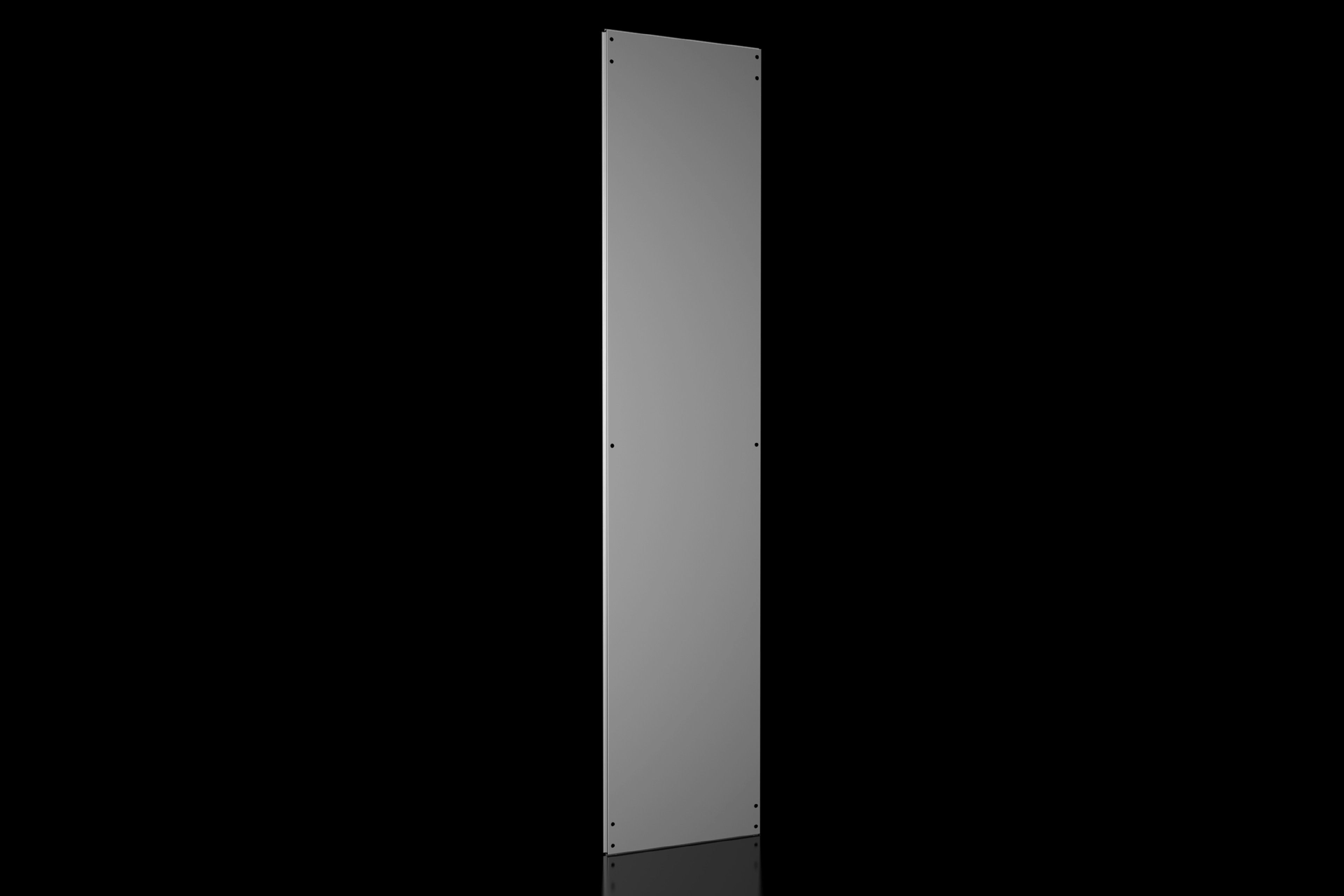

8609204 Rittal: VX Divider panel, for HD: 2000x500 mm
Article number
VX 8609.204
Product description
For shielding individual enclosure cells. Thanks to the symmetry of the frame system, the divider panel can also be used at the rear. All-round, double fold for stability and to hold the seal.
Benefits
The divider panel may also be fitted at the rear. This allows, e.g. frequency converters for heat dissipation to be installed in a divider panel with the cooling units facing outwards and protected/finished off with a cover.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type: VX | Height: = 2,000 mm | Depth: = 500 mm
Installation options
For mounting on the outer mounting level
Assembly instruction
For baying in combination with a divider panel, an internal baying bracket 8617500 or external baying bracket 8617502 is required
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
11 kg
Customs tariff number
94039910
EAN
4028177817784
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
VX Divider panel, for HD: 2000x500 mm
Feature: Symmetric VX frame design enables rear mounting. Business impact: greater layout flexibility and improved cooling integration for compact racks. Application: ideal when shielding individual cells while allowing heat-dissipating components to be positioned behind the panel. Feature: All-round, double-fold construction for stability and sealing. Business impact: enhances enclosure integrity and maintains IP protection in demanding environments. Application: supports dust and moisture control on factory floors where reliability matters. Feature: Material with 1.5 mm sheet steel and zinc-plated finish. Business impact: durable, corrosion-resistant panels reduce maintenance and replacement cycles. Application: suitable for harsh industrial cabinets in automation and process industries. Feature: Precise fit for VX enclosures, 2000 mm height and 500 mm depth, with mounting on the outer level. Business impact: simplifies installation and reduces custom fabrication; supports consistent baying across multiple cabinets. Application: common in standardized VX lineups and modular systems. Feature: Assembly parts included and clear installation guidance; compatibility with internal 8617500 or external 8617502 baying brackets. Business impact: minimizes additional purchases and speeds up project timelines. Application: quick integration into existing VX bays and upgrade paths. Feature: IP54 protection rating and compatibility with rear-facing cooling strategies. Business impact: guards against dust and water ingress while enabling efficient heat management. Application: suitable for manufacturing cells, servo drives, and frequency converters within enclosed cabinets.
Get a Quick Quote for a Rittal 8609204
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609204?
Enquire Now
FAQs
Install the divider panel on the outer mounting level of the VX enclosure. The kit includes assembly parts and requires baying brackets 8617500 (internal) or 8617502 (external) for proper baying. Follow the installation instruction to align with the enclosure’s 2000 mm height and 500 mm depth—ensuring a secure, sealed fit.
Yes. The divider panel can be positioned to face cooling units outward when baying is used, enabling effective heat dissipation while maintaining panel protection. This design supports configurations where frequency converters or heat-generating components are mounted behind the panel with the cooling system positioned for optimum airflow.
Key specs include a 2000 x 500 mm size, 1.5 mm sheet steel construction, zinc-plated surface, IP54 protection, and a weight of 11 kg per pack. Each pack contains 1 piece, designed to fit VX enclosure types with height 2000 mm and depth 500 mm.
Industries with automated machinery, packaging lines, and process automation benefit from the VX 8609.204. It provides robust shielding for individual cells, supports rear mounting for heat management, and simplifies baying in standardized VX cabinet systems, improving reliability and serviceability.
The panel offers IP54 protection and is CE-compliant, supporting European machinery directives. It also aligns with ETIM 9 (EC002525) and ECLASS 8.0 (27182102) classifications to ease procurement data and system integration.
