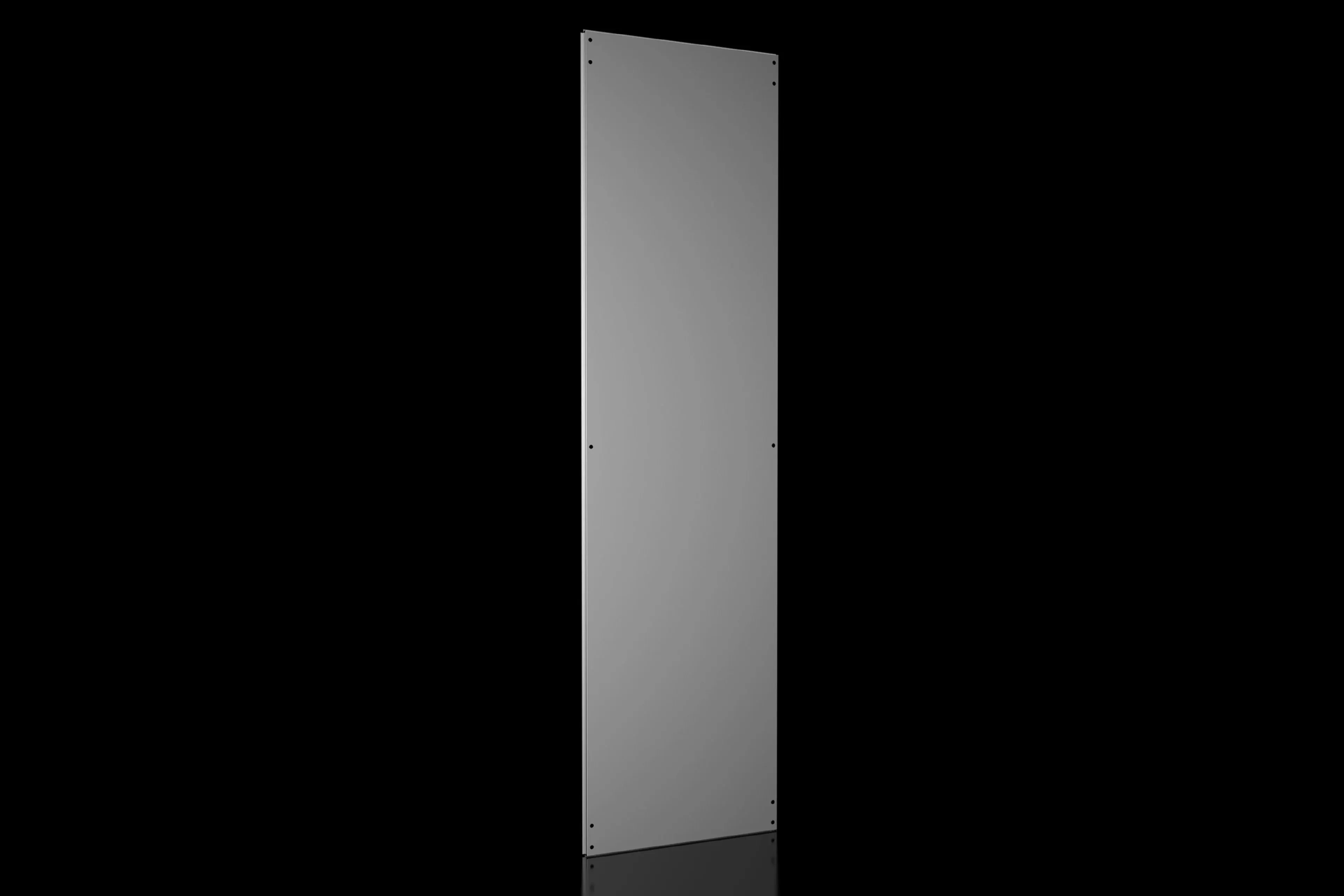

Rittal VX 8609.205 Divider Panel for HD 2000x600 - IP54
Part Number: 8609205
Quick Summary
Rittal VX 8609.205 divider panel shields individual enclosure cells inside VX enclosures. In practice, engineers face heat and airflow challenges when packing drives and converters; this panel provides a symmetrical, rear-usable barrier that maintains clear cooling paths. The product delivers IP54 protection per IEC 60529 and aligns with ETIM EC002525 and ECLASS 27182102, ensuring reliable cataloging and compliance. As a VX enclosure accessory, it streamlines installation on the outer mounting level and supports flexible baying with internal or external brackets, reducing enclosure downtime. This divider panel also enables efficient space management and protected finishes for industrial automation setups, supporting long-term reliability and simplified maintenance.
Product Information
Extended Description
8609205 Rittal: VX Divider panel, for HD: 2000x600 mm
Article number
VX 8609.205
Product description
For shielding individual enclosure cells. Thanks to the symmetry of the frame system, the divider panel can also be used at the rear. All-round, double fold for stability and to hold the seal.
Benefits
The divider panel may also be fitted at the rear. This allows, e.g. frequency converters for heat dissipation to be installed in a divider panel with the cooling units facing outwards and protected/finished off with a cover.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type:Â VX | Height:Â = 2,000 mm | Depth:Â = 600 mm
Installation options
For mounting on the outer mounting level
Assembly instruction
For baying in combination with a divider panel, an internal baying bracket 8617500 or external baying bracket 8617502 is required
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
14 kg
Customs tariff number
94039910
EAN
4028177817791
ETIM 7.0
EC002525
ECLASS 8.0
27182102
Product description
VX Divider panel, for HD: 2000x600 mm
Feature: Shielding with symmetrical frame enables rear mounting and flexible placement. Business Impact: Improves cooling path integrity and enables heat-dissipating layouts without disassembly. Application: Use in VX enclosures to separate cells and support heat management for mounted frequency converters. Feature: 1.5 mm zinc-plated sheet steel provides durable, corrosion-resistant construction. Business Impact: Extends service life in harsh environments and reduces replacement costs. Application: Suitable for factory floors and outdoor-rated installations. Feature: IP54 protection per IEC 60529 protects against dust ingress and water splashes. Business Impact: Maintains enclosure integrity in challenging conditions, reducing unplanned downtime. Application: Ideal for environments with dust, humidity, or wash-downs. Feature: Installation options include mounting on the outer mounting level with internal or external baying brackets. Business Impact: Speeds up deployment and minimizes field modifications. Application: Works with baying brackets 8617500 or 8617502 for scalable cell configurations. Feature: Packs include assembly parts; weight per pack is 14 kg; to fit VX height 2000 mm and depth 600 mm. Business Impact: Predictable handling, straightforward logistics, and accurate planning for project scopes. Application: Supports standard VX enclosure configurations and simplifies procurement.
Get a Quick Quote for a Rittal 8609205
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609205?
Enquire Now
FAQs
The VX 8609.205 divider panel is designed for mounting on the outer mounting level of VX enclosures and can be fitted at the rear when needed. For baying, use internal baying bracket 8617500 or external baying bracket 8617502. Each pack contains assembly parts and is sized for VX enclosures of 2000 mm height and 600 mm depth, facilitating quick, reliable installation.
Yes. The divider panel is IP54 rated per IEC 60529, offering protection against dust ingress and water splashes in challenging industrial environments. It is constructed from 1.5 mm sheet steel with a zinc-plated finish, combining durability with corrosion resistance suitable for demanding installations.
Absolutely. The divider panel can be used with the cooling units facing outward, and it supports heat-dissipating layouts by providing a stable barrier between compartments. When paired with appropriate covers, it helps maintain optimal airflow around frequency converters, reducing hotspots and improving system reliability in automation setups.
The panel carries IP54 protection per IEC 60529 and is cataloged with ETIM EC002525 and ECLASS 27182102 for procurement clarity. While CE certification specifics aren’t listed in the datasheet, the product aligns with common industry standards for enclosure accessories, supporting compliant integration within VX systems.
By enabling rear mounting options, improving cooling pathways, and offering durable, corrosion-resistant construction, the VX 8609.205 reduces maintenance cycles and downtime. Its 1-pack-per-box packaging and 14 kg weight facilitate straightforward logistics, while the included assembly parts expedite fast deployment in scalable VX configurations.
