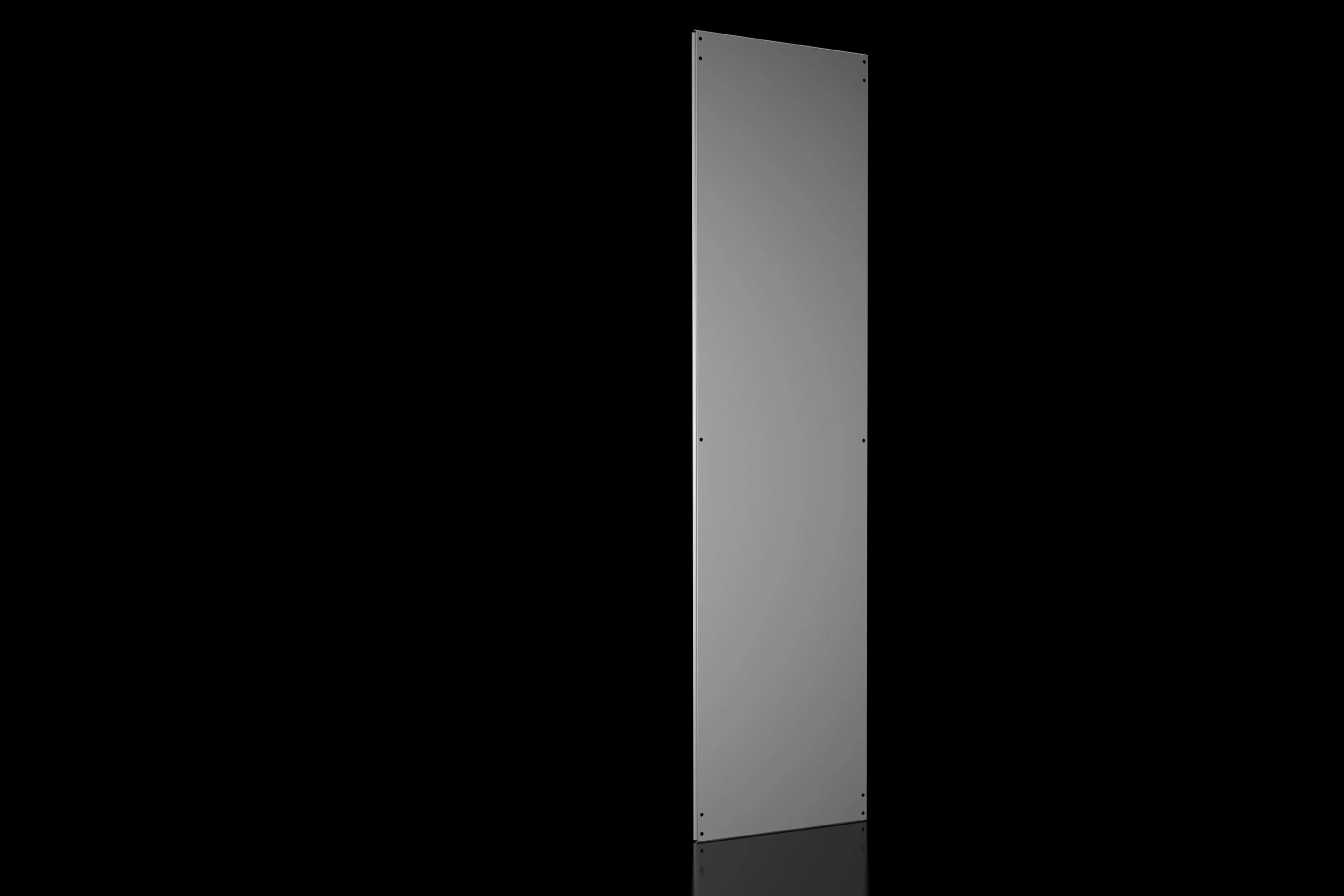

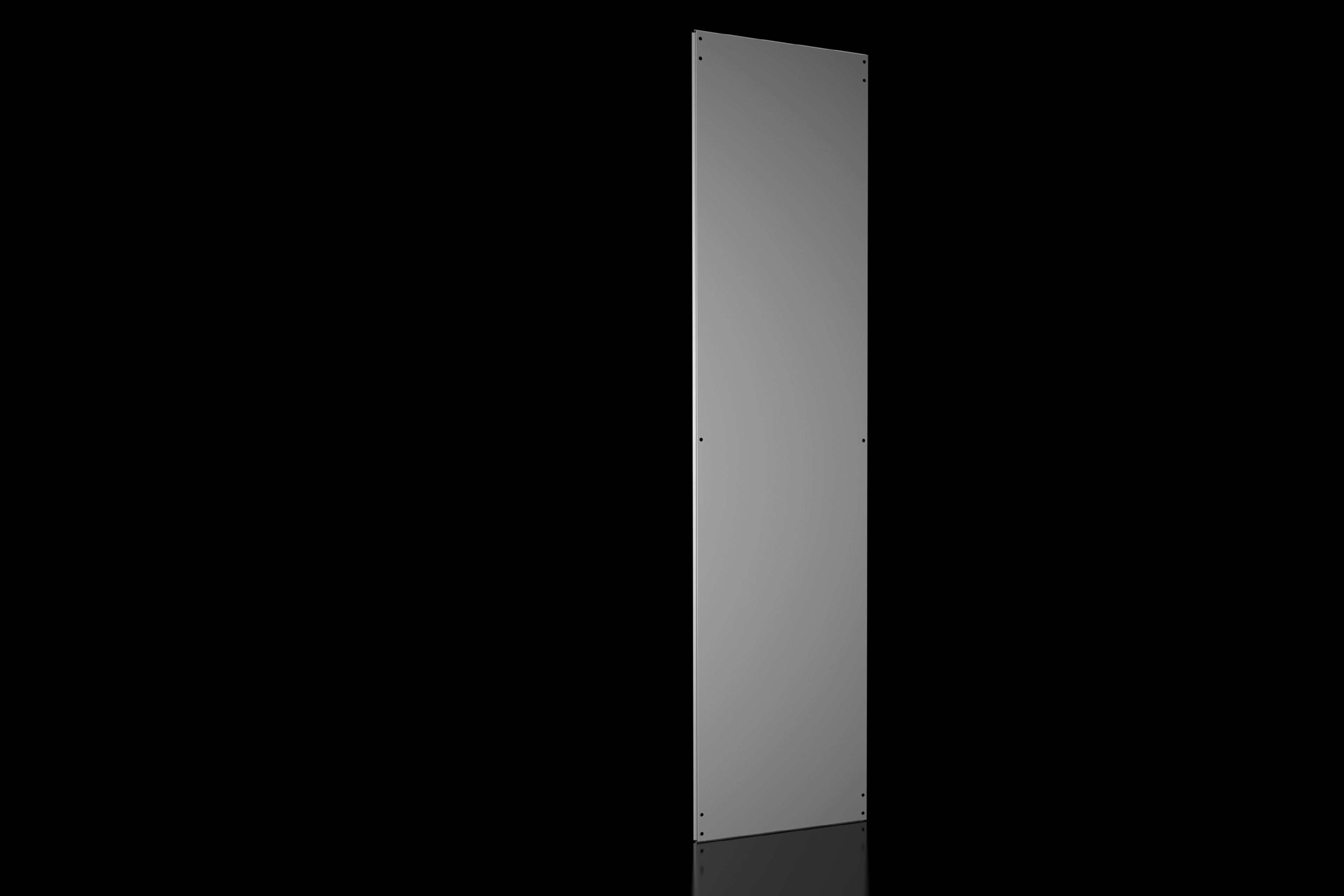

Rittal 8609207 VX divider panel - IP54
Part Number: 8609207
Quick Summary
Rittal 8609207 VX divider panel shields enclosure cells and enables rear mounting in VX enclosures. This flexibility helps you optimize cooling layouts and protect wiring without reconfiguring the cabinet. The product carries IP54 protection and aligns with ETIM EC002525 and ECLASS 27182102 classifications for straightforward procurement. Its zinc-plated sheet steel construction and included assembly parts reduce field installation time and support reliable, scalable panelized systems for automation and drive applications.
Product Information
Extended Description
8609207 Rittal: VX Divider panel, for HD: 2200x600 mm
Article number
VX 8609.207
Product description
For shielding individual enclosure cells. Thanks to the symmetry of the frame system, the divider panel can also be used at the rear. All-round, double fold for stability and to hold the seal.
Benefits
The divider panel may also be fitted at the rear. This allows, e.g. frequency converters for heat dissipation to be installed in a divider panel with the cooling units facing outwards and protected/finished off with a cover.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type: VX | Height: = 2,200 mm | Depth: = 600 mm
Installation options
For mounting on the outer mounting level
Assembly instruction
For baying in combination with a divider panel, an internal baying bracket 8617500 or external baying bracket 8617502 is required
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
15.5 kg
Customs tariff number
94039910
EAN
4028177817814
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
VX Divider panel, for HD: 2200x600 mm
Feature: The VX divider panel employs a symmetrical frame system that can be mounted at the rear. Business impact: This flexibility enables heat sources such as frequency converters to be positioned for efficient cooling while protecting seals. Application: Use in crowded VX enclosures where rear-mounted modules and outward-facing cooling units maximize airflow. Feature: All-round, double fold design provides stability and a robust seal. Business impact: Improves enclosure integrity against dust ingress and vibration, reducing maintenance and part failures. Application: Suitable for harsh industrial environments and cabinets with frequent door access. Feature: Material is sheet steel 1.5 mm with zinc-plated surface. Business impact: Delivers durable, corrosion-resistant panels that withstand factory floors and washdown risks. Application: Typical in manufacturing lines, packaging, and automation panels. Feature: IP protection category is IP54 per IEC 60529. Business impact: Ensures reliable operation in environments with limited dust and splash exposure. Application: Recommended for general purpose enclosure shielding in VX racks. Feature: Specifications to fit VX height 2,200 mm and depth 600 mm; packs include assembly parts; installation requires internal baying bracket 8617500 or external baying bracket 8617502. Business impact: Clear install path reduces complexity and downtime; compatible with existing VX accessories. Application: Streamlines upgrade projects and modular system deployments. Feature: Packaging is one pack with a weight of 15.5 kg. Business impact: Simplifies inventory management and shipping workflows. Application: Ideal for single-cabinet upgrade scenarios and controlled stock.
Get a Quick Quote for a Rittal 8609207
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609207?
Enquire Now
FAQs
To install the VX 8609.207 divider panel, align it with the VX enclosure frame (height 2,200 mm, depth 600 mm) and secure using the appropriate baying brackets: internal 8617500 or external 8617502 as required. The panel comes with assembly parts to simplify mounting on the outer mounting level and ensure a stable, sealed fit while allowing rear placement of components if needed.
The divider panel is designed for 2,200 mm high and 600 mm deep VX enclosures, constructed from 1.5 mm sheet steel with a zinc-plated finish for corrosion resistance. It weighs 15.5 kg per pack and is supplied as a single pack with assembly parts included, ensuring straightforward handling and installation in standard VX racks.
Yes. The panel supports rear mounting and outward-facing cooling units, enabling heat-generating drives to be positioned for better convection. Its flexible mounting options help you maintain enclosure integrity while optimizing airflow, which is particularly advantageous when integrating frequency converters and other heat sources inside a VX enclosure.
The panel carries IP54 protection per IEC 60529, providing reliable dust and splash resistance. It is also classified within ETIM 9 EC002525 and ECLASS 8.0 27182102, ensuring compatibility with procurement systems and standardized part categorization for industrial automation projects.
By improving sealing and reducing dust ingress, the divider panel lowers maintenance needs and extends component life in automated cabinets. The rigid, corrosion-resistant construction and inclusion of assembly parts shorten installation times, delivering a faster return on investment through reduced downtime and more reliable operation of panelized control systems.
