Rittal VX 8609.210 Divider Panel for VX Enclosures - HD 1800x500 mm
Part Number: 8609210
Quick Summary
Rittal VX 8609.210 divider panel enables clean module plate mounting and cable entry inside VX enclosures. In practice, installers face cluttered interiors, misalignment, and seal integrity challenges when adding multiple modules. This accessory supports ETIM EC002525 and ECLASS 27182102 standards, improving interoperability and procurement consistency. Built from 2.0 mm zinc-plated sheet steel, it offers a durable, corrosion-resistant backbone for nine cut-outs and for symmetrical assembly that can accommodate rear divider panels where space allows. The design ships with assembly parts for fast integration and is compatible with baying brackets 8617500 and 8617502. Ideal for industrial cabinets and automation panels requiring modularity, busbar entry, and tidy cable routing, it reduces maintenance time and total cost of ownership.
Product Information
Extended Description

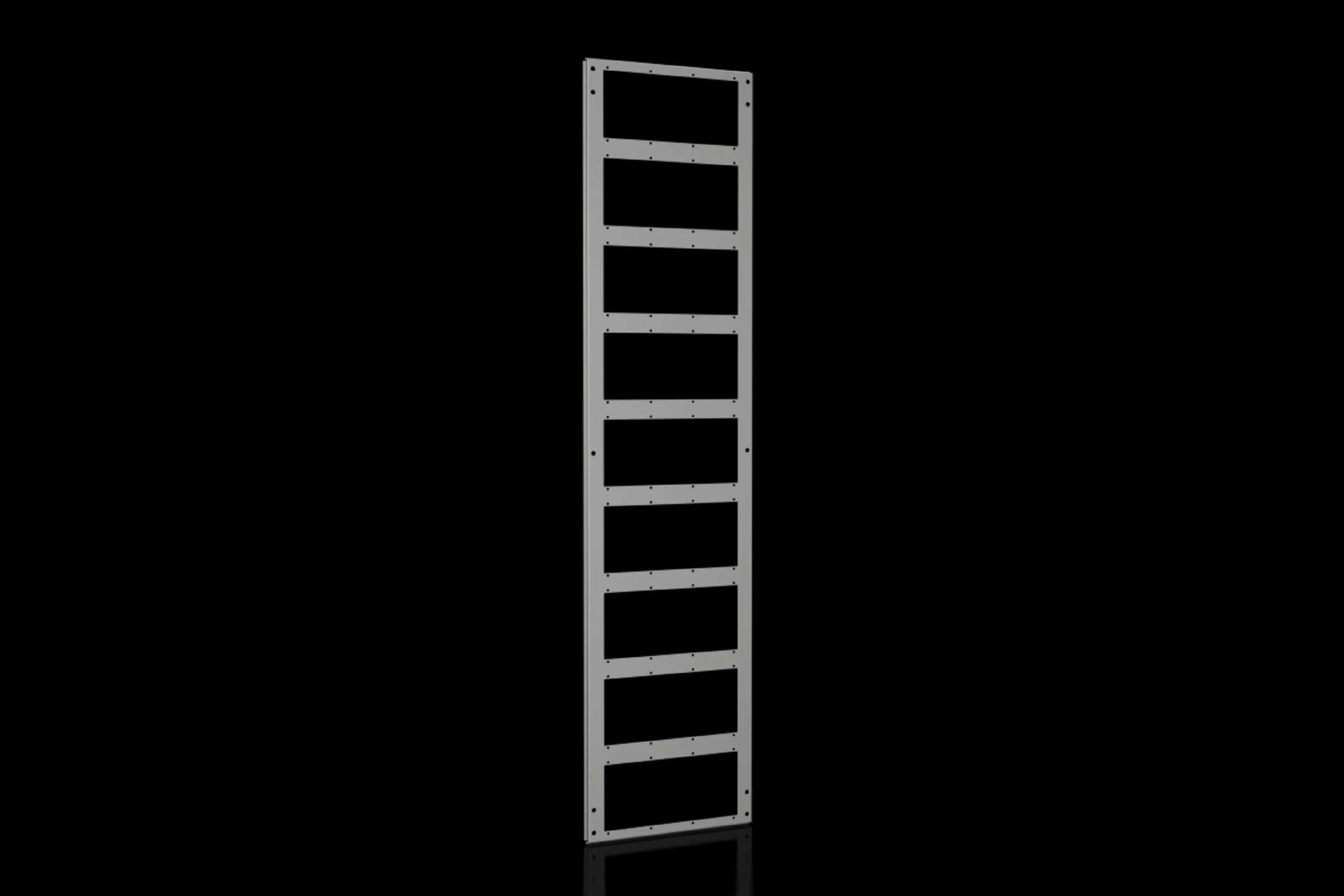

8609210 Rittal: VX Divider panel for module plates, for HD: 1800x500 mm
Article number
VX 8609.210
Product description
With cut-outs for the installation of module plates for connectors or for cable entry, and also for the entry of busbar systems and other installed equipment. All-round, double fold for stability and to hold the seal. Thanks to the symmetry of the enclosure frame, divider panels may also be fitted at the rear, dimensions permitting.
Material
Sheet steel, 2.0 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type:Â VX | Height:Â = 1,800 mm | Depth:Â = 500 mm
Number of cut-outs
9
Assembly instruction
For baying in combination with a divider panel, an internal baying bracket 8617500 or external baying bracket 8617502 is required
Packs of
1 pc(s).
Weight/pack
6.5 kg
Customs tariff number
94039910
EAN
4028177817821
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
VX Divider panel for module plates, for HD: 1800x500 mm
Feature: 2.0 mm zinc-plated sheet steel provides high durability and corrosion resistance for harsh factory environments. Business impact: extended service life and reduced maintenance costs. Application: module plates and mounted equipment in VX enclosures. Feature: Nine cut-outs enable flexible layouts for module plates, cable entries, and busbar systems. Business impact: faster configuration, simplified future upgrades, and scalable layouts. Application: space-constrained VX cabinets. Feature: All-round, double fold enhances stability and seal retention. Business impact: improved gasket performance and reduced ingress of dust or moisture during rapid baying. Application: automation cabinets and data-center enclosures. Feature: Symmetrical enclosure frame allows rear divider panels when space permits. Business impact: easier reconfiguration and cleaner rear management of cables. Application: modular VX setups. Feature: Assembly parts included and compatibility with internal/external baying brackets 8617500/8617502 streamline installation. Business impact: shorter commissioning times and lower installation risk. Application: common VX baying scenarios, with minimal downtime.
Get a Quick Quote for a Rittal 8609210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609210?
Enquire Now
FAQs
VX 8609.210 is designed specifically for VX enclosures with HD 1800x500 mm footprint. It uses nine cut-outs for module plates, supports internal baying with brackets 8617500 or 8617502, and ships as a single-pack accessory. This compatibility streamlines engineering, reduces mismatch risk, and simplifies stocking for VX-based control cabinets.
Key specs include 2.0 mm sheet steel, zinc-plated finish, nine cut-outs, and an all-round double fold that preserves seal integrity. The panel is intended to fit VX enclosure height 1800 mm and depth 500 mm, with a 1-pack configuration and assembly parts included.
Yes. The divider panel provides cut-outs for busbar entries and, due to the symmetrical VX frame, enables rear divider panels when dimensions permit. This flexibility supports modular expansion and tidy cable routing while keeping enclosure integrity intact.
Installation includes assembly parts and references internal/external baying brackets 8617500/8617502 for baying combinations. The weight per pack is 6.5 kg, with one pack per order. Ensure alignment with VX frame and module-plate positions for best results.
Using a single divider panel to organize module plates, cables, and busbars reduces wiring errors and commissioning time. The robust zinc-plated 2.0 mm steel construction withstands factory conditions, while compatibility with baying brackets supports future upgrades with minimal downtime. The result is lower total cost of ownership and steadier uptime in automated systems.
