Rittal VX 8609.212 Divider Panel - Zinc-plated 2.0 mm
Part Number: 8609212
Quick Summary
Rittal VX 8609.212 divider panel is a robust mounting solution for module plates inside VX enclosures. Engineers often struggle with maintaining seal integrity and stability when adding modules, cables, and busbars. The product supports CE-compliant enclosure assemblies and, when used with rated VX frames, contributes to IP-protected installations in demanding control-panel environments. In practice, it enables secure rear fitting of divider panels and straightforward baying with internal or external brackets, improving serviceability and future expansion. By pairing with standard VX components, it also reduces installation time and inventory diversity, while supporting reliable electrical layouts and straightforward maintenance workflows. The zinc-plated 2.0 mm steel construction helps resist corrosion in harsh industrial settings and accommodates up to ten cut-outs for flexible wiring and connectivity.
Product Information
Extended Description

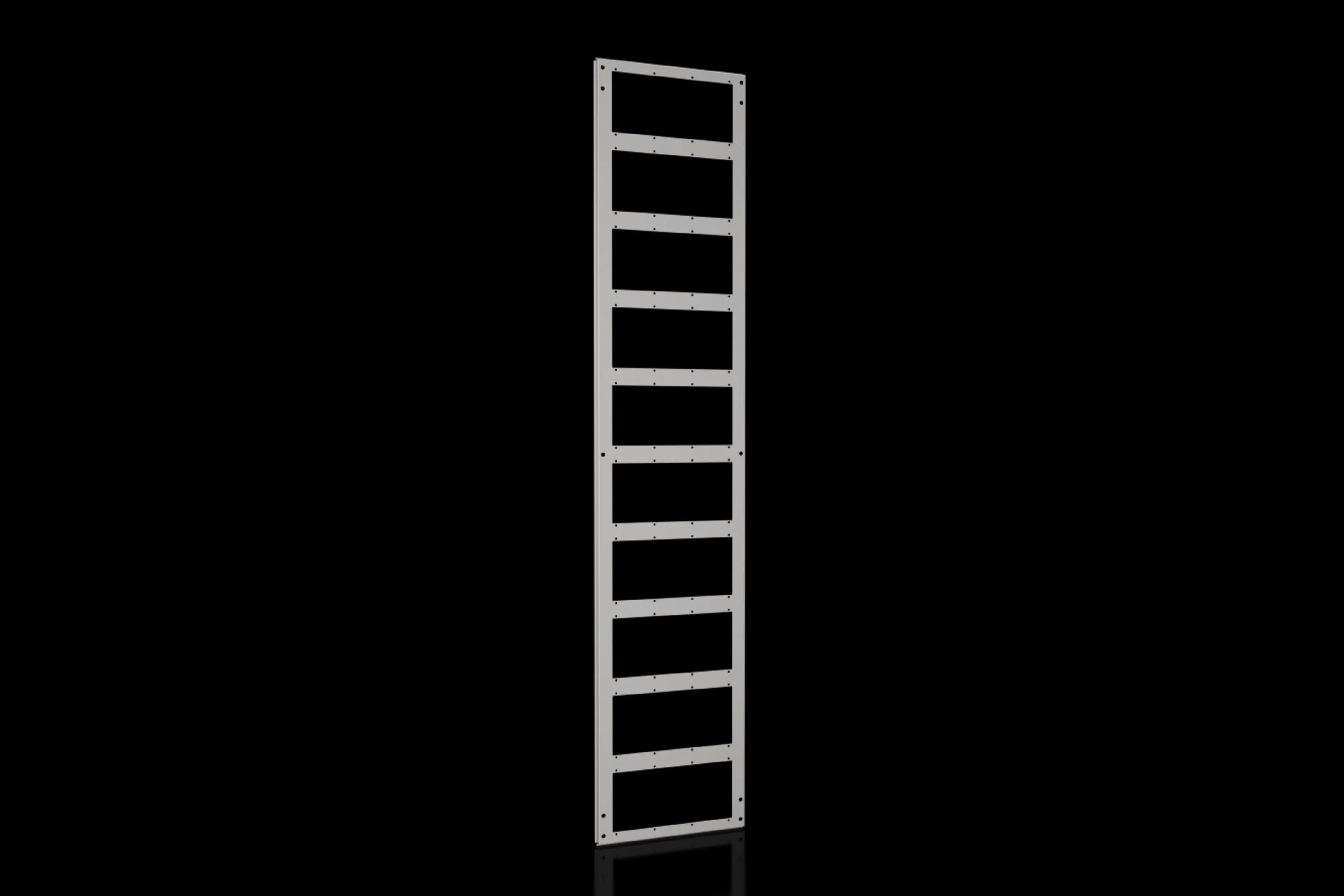

8609212 Rittal: VX Divider panel for module plates, for HD: 2000x500 mm
Article number
VX 8609.212
Product description
With cut-outs for the installation of module plates for connectors or for cable entry, and also for the entry of busbar systems and other installed equipment. All-round, double fold for stability and to hold the seal. Thanks to the symmetry of the enclosure frame, divider panels may also be fitted at the rear, dimensions permitting.
Material
Sheet steel, 2.0 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type:Â VX | Height:Â = 2,000 mm | Depth:Â = 500 mm
Number of cut-outs
10
Assembly instruction
For baying in combination with a divider panel, an internal baying bracket 8617500 or external baying bracket 8617502 is required
Packs of
1 pc(s).
Weight/pack
7.6 kg
Customs tariff number
94039910
EAN
4028177817845
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
VX Divider panel for module plates, for HD: 2000x500 mm
Feature: 2.0 mm sheet steel with zinc-plated finish → Business Impact: enhances corrosion resistance and long-term durability in harsh environments, reducing maintenance frequency; Application: ideal for VX enclosures in manufacturing floors and automation rooms. Feature: All-round double fold for stability and seal retention → Business Impact: improves enclosure integrity and gasket performance, lowering leakage risks in damp areas; Application: critical for clean, reliable electrical installations. Feature: 10 cut-outs for module plates, connectors, and cable entry → Business Impact: enables versatile wiring schemes and rapid reconfiguration without parts replacement; Application: supports future-ready control panels with busbar entries. Feature: Symmetrical VX enclosure frame allows rear-fitting divider panels → Business Impact: simplifies high-density layouts and scalable baying; Application: paired with internal baying bracket 8617500 or external baying bracket 8617502. Feature: Included assembly parts and 7.6 kg weight per pack → Business Impact: straightforward handling, fast installation, easier on-site logistics; Application: one-piece pack ready for quick deployment in VX systems. Feature: Custom fits for VX height 2000 mm and depth 500 mm → Business Impact: ensures precise integration with standard VX frames, reducing modification time and risk; Application: matches HD 2000x500 configurations for module plate layouts.
Get a Quick Quote for a Rittal 8609212
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609212?
Enquire Now
FAQs
VX 8609.212 is designed to fit VX series enclosures with a height of 2000 mm and depth of 500 mm. It uses the standard VX frame and is compatible with internal baying brackets 8617500 or external baying bracket 8617502 to create scalable divider configurations.
The divider panel includes 10 cut-outs intended for module plates, connectors, cable entries, and busbar system entries. This allows flexible wiring layouts and easy routing while preserving enclosure integrity and orderly cable management.
A double-fold, all-round edge design provides robustness and seal retention, while the zinc-plated 2.0 mm sheet steel resists corrosion. When paired with appropriate brackets and the VX enclosure, it supports stable baying and consistent sealing across maintenance cycles.
The panel is designed to work within CE-structured VX enclosure systems and contributes to a compliant, integrated assembly. Protection level and IP rating depend on the complete enclosure assembly and seals—not the panel alone—so ensure use within rated VX configurations for the desired protection class.
The product ships as a single pack containing the divider panel along with assembly parts. The typical weight per pack is 7.6 kg, facilitating on-site handling and reducing installation time while ensuring all necessary components are available for quick mounting.
