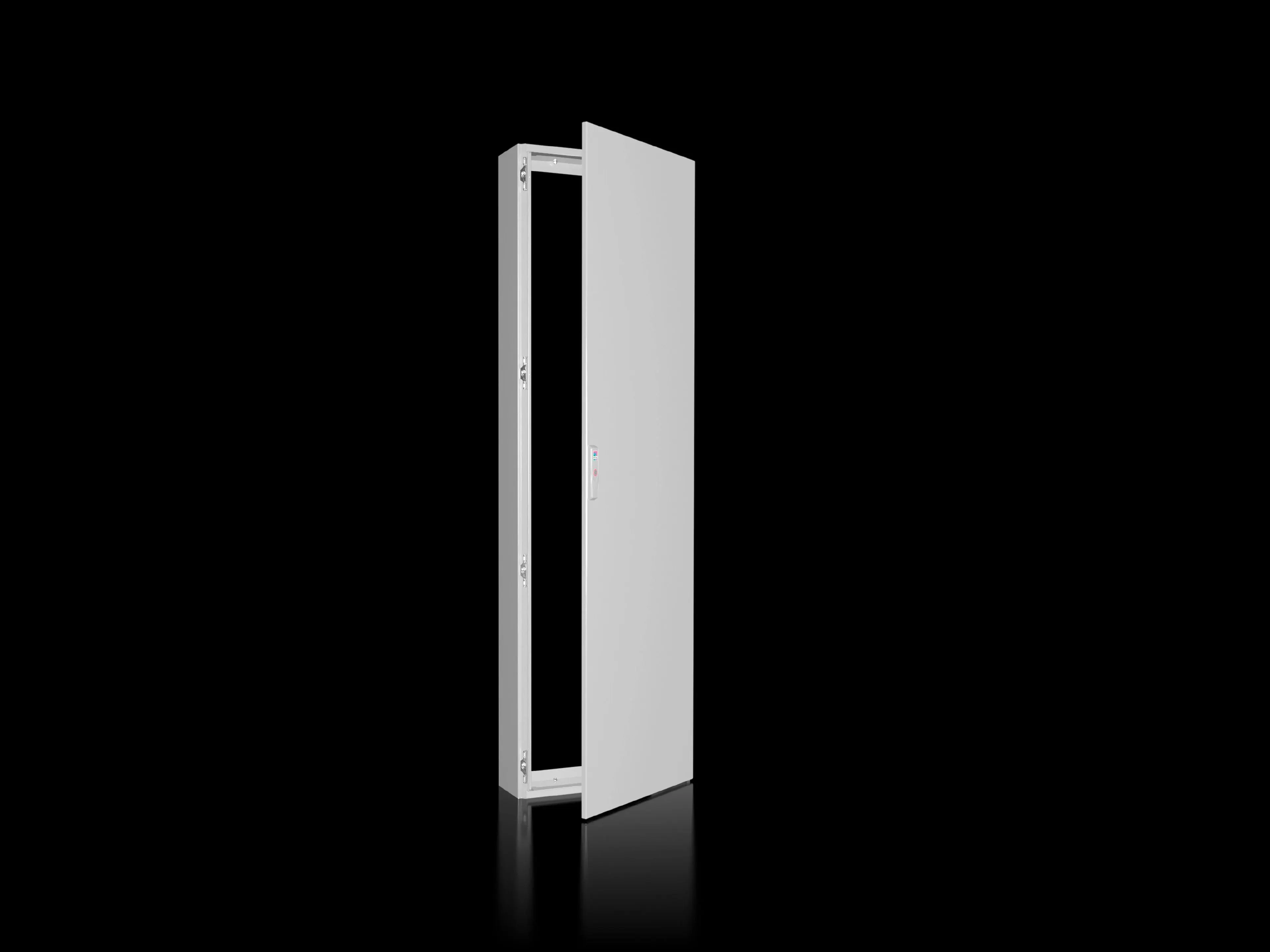

Rittal VX 8609.220 Cover with Door - IP 55 Protection
Part Number: 8609220
Quick Summary
The Rittal VX 8609.220 Cover with Door provides robust protection for connectors and installed equipment within VX enclosure systems. This accessory helps prevent moisture ingress, dust intrusion, and physical damage to sensitive interfaces, reducing maintenance and downtime. It is designed to deliver reliable performance in challenging industrial environments, backed by IP 55 protection when used with VX enclosures and compatibility with NEMA 12 configurations. The combination of durable steel construction and a powder-coated finish translates to longer service life and lower lifecycle costs. For engineers and buyers, this part supports faster installation, consistent aesthetics, and predictable total cost of ownership while preserving enclosure integrity and appearance.
Product Information
Extended Description
8609220 Rittal: VX Cover with door, for HD: 2000x500 mm
Article number
VX 8609.220
Benefits
To protect and finish off connectors or other installed equipment.
Material
Cover: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Cover | Door with locking rod and double-bit lock insert | 2 trim panels for top and bottom
Dimensions
Width: 202.7 mm | Height: 1,998 mm | Depth: 499 mm
To fit
Enclosure type: VX | Height: = 2,000 mm | Depth: = 500 mm
IP protection category to IEC 60 529
IP 55 in conjunction with enclosures from the VX series
Protection category NEMA
NEMA 12 (in conjunction with enclosures from the VX, VX IT series)
Packs of
1 pc(s).
Weight/pack
46.3 kg
PCF per pack (cradle-to-gate)
114.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177921672
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
VX Cover with door, for HD: 2000x500 mm
Feature → Business Impact → Application: Material and construction use 1.5 mm cover steel and 2.0 mm door steel for heightened rigidity and resilience, reducing flex and wear in vibration-prone environments; improves long-term reliability of cable terminations and connectors in exposed installations. Application: ideal for server racks and control cabinets in manufacturing floors where robust access protection is essential. Feature → Business Impact → Application: Surface finish is dipcoat-primed with powder coating on the outside, boosting corrosion resistance and ease of cleaning; reduces repainting frequency and maintenance costs. Application: suited for harsh environments where chemical exposure or dust contact is common. Feature → Business Impact → Application: Dimensions width 202.7 mm, height 1,998 mm, depth 499 mm ensure a precise fit for 2000x500 mm HD enclosures; supports predictable assembly and interchangeability. Application: compatible with VX series enclosures and standard VXHD layouts. Feature → Business Impact → Application: Supply includes Cover, Door with locking rod and double-bit lock insert, plus 2 trim panels for top and bottom; simplifies ordering and installation, lowering project procurement risk. Application: accelerates deployment in new builds and retrofits. Feature → Business Impact → Application: IP 55 in conjunction with VX enclosures and NEMA 12 compatibility when paired with VX; improves protection against dust and water, meeting industry standards. Application: ideal for damp, dusty, and outdoor-adjacent cabinets. Feature → Business Impact → Application: Weight per pack 46.3 kg and PCF 114.1 kg CO2 eq (Cat B) provide lifecycle and environmental footprint visibility; supports sustainability reporting and cost planning. Application: suitable for projects with environmental accounting requirements and material impact assessments.
Get a Quick Quote for a Rittal 8609220
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609220?
Enquire Now
FAQs
Install the cover over the enclosure opening, secure the door with the included locking rod and double-bit lock insert, and attach the top and bottom trim panels to complete a flush, finished look.
The cover is 202.7 mm wide, 1,998 mm high, and 499 mm deep. The cover uses 1.5 mm sheet steel and the door uses 2.0 mm sheet steel, with a dip coat primed and powder-coated finish.
Yes. When used in conjunction with VX series enclosures, the VX 8609.220 supports NEMA 12 configurations, offering enhanced protection for damp and dusty environments.
The assembly provides IP 55 protection when used with compatible VX enclosures, helping to protect connectors and installed equipment from dust and water ingress.
Packs contain 1 unit with a weight of 46.3 kg per pack. The PCF is 114.1 kg CO2 eq (Category B), aiding lifecycle and sustainability assessments for projects.
