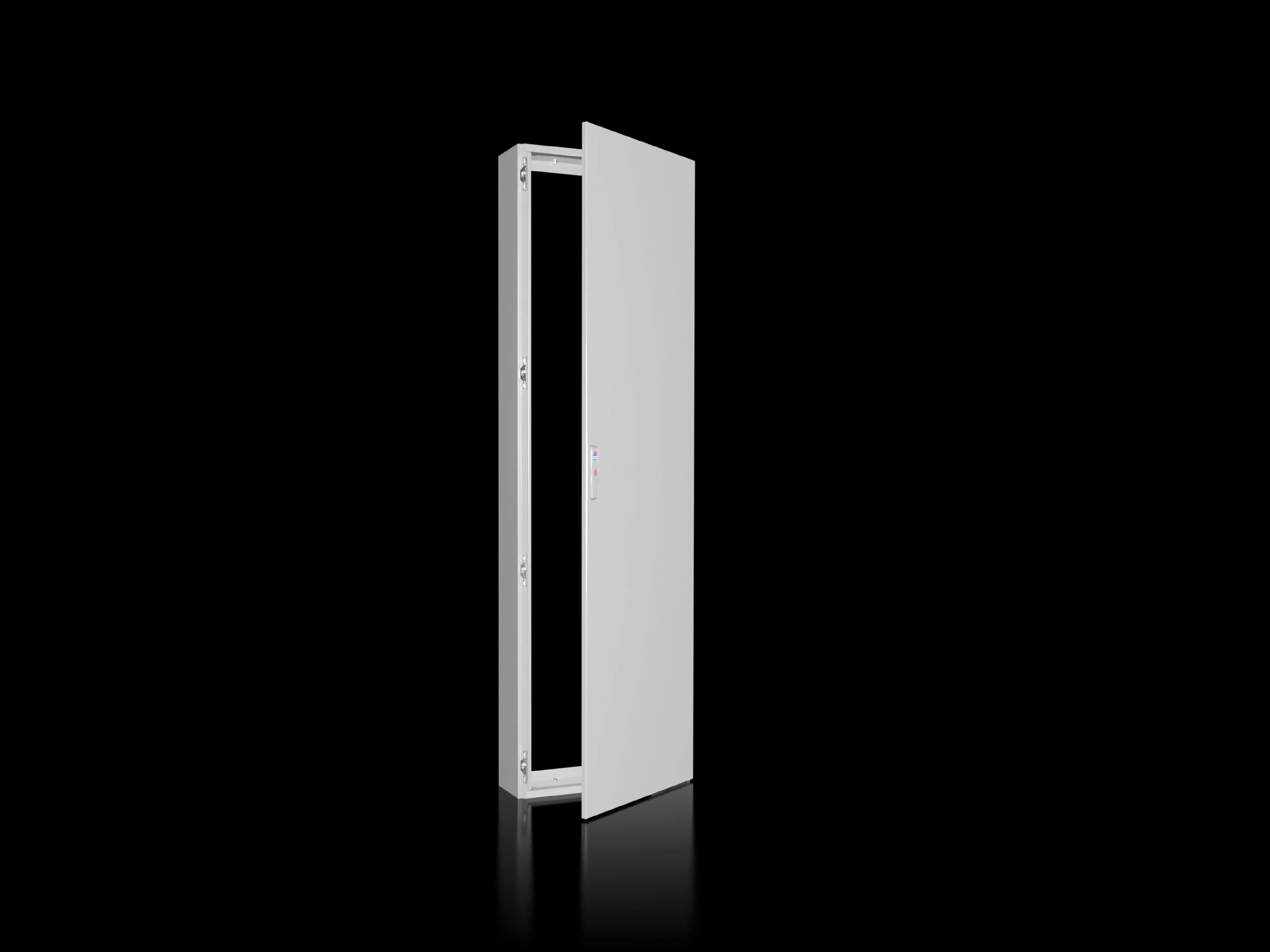

Rittal VX 8609.230 Cover with door - IP55 protection
Part Number: 8609230
Quick Summary
The Rittal VX 8609.230 Cover with door protects and finishes off connectors and installed equipment in VX enclosure systems. Without a dedicated cover, exposed wiring can be damaged during maintenance and the enclosure appearance can degrade. This accessory delivers IP 55 protection when used with VX enclosures and supports NEMA 12 compatibility in conjunction with VX/VX IT series, enhancing safety in harsh environments. Its dipcoat-primed, powder-coated outside provides a durable, color-matched finish in RAL 7035 for a professional look and easy integration with existing systems. Choosing this cover simplifies installation workflows, reduces maintenance overhead, and supports standardized color coding and accessory compatibility across your VX portfolio.
Product Information
Extended Description
8609230 Rittal: VX Cover with door, for HD: 2000x600 mm
Article number
VX 8609.230
Benefits
To protect and finish off connectors or other installed equipment.
Material
Cover: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
Cover | Door with locking rod and double-bit lock insert | 2 trim panels for top and bottom
Dimensions
Width: 202.7 mm | Height: 1,998 mm | Depth: 599 mm
To fit
Enclosure type: VX | Height: = 2,000 mm | Depth: = 600 mm
IP protection category to IEC 60 529
IP 55 in conjunction with enclosures from the VX series
Protection category NEMA
NEMA 12 (in conjunction with enclosures from the VX, VX IT series)
Packs of
1 pc(s).
Weight/pack
50.5 kg
PCF per pack (cradle-to-gate)
124.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177921689
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
VX Cover with door, for HD: 2000x600 mm
Feature: Durable, purpose-built construction using sheet steel for the cover (1.5 mm) and door (2.0 mm). Business Impact: Robust physical protection for mounted equipment and connectors, increasing enclosure reliability in demanding environments. Application: Fits VX enclosures with HD dimensions up to 2000x600 mm. Feature: Powder-coated exterior with dipcoat-primed base in RAL 7035. Business Impact: Long-lasting finish resistant to corrosion and dirt, reducing repaint cycles and upkeep costs. Application: Ideal for harsh industrial environments where aesthetics and protection matter. Feature: Integrated locking options and inclusions (locking rod and double-bit lock insert; two trim panels). Business Impact: Enhanced security and tamper resistance, streamlining maintenance workflows. Application: Quick access control on control panels and battery cabinets. Feature: Specific compatibility and sizing (Width 202.7 mm; Height 1,998 mm; Depth 599 mm). Business Impact: Precise fit minimizes gaps, simplifies mounting, and ensures consistent enclosure aesthetics. Application: Designed for VX series, height = 2,000 mm, depth = 600 mm. Feature: Sustainability and weight data (Weight per pack 50.5 kg; PCF 124.4 kg CO2 eq). Business Impact: Transparent environmental footprint supports green procurement and lifecycle planning. Application: Cradle-to-gate data informs sustainability metrics for panel builds. Feature: Supplied components (Cover; Door with locking rod and double-bit lock insert; 2 trim panels). Business Impact: Everything needed for a complete, ready-to-install finish reduces lead times. Application: Simplifies on-site installation and standardizes VX accessory kits.
Get a Quick Quote for a Rittal 8609230
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609230?
Enquire Now
FAQs
Installation begins by confirming the VX enclosure type and confirming the HD 2000x600 mm footprint. Mount the cover first, secure it with the provided locking rod and double-bit lock insert, then attach the two trim panels at the top and bottom. Ensure proper door alignment and test the locking mechanism for reliable access control.
Key specs include Width 202.7 mm, Height 1,998 mm, Depth 599 mm; Cover material 1.5 mm sheet steel; Door material 2.0 mm sheet steel; Finish is dipcoat-primed and powder-coated outside in RAL 7035; IP55 protection (with VX enclosures) and NEMA 12 compatibility; Weight per pack 50.5 kg; Supply includes cover, door with locking rod and double-bit lock insert, plus two trim panels.
Yes. The VX 8609.230 provides IP55 protection in conjunction with VX series enclosures and offers NEMA 12 compatibility when paired with VX or VX IT enclosures, delivering reliable protection for interiors in damp or dusty industrial environments.
This cover is ideal for finishing and protecting connectors and installed equipment inside VX enclosures used in industrial automation. It delivers a professional look, reduces maintenance risk, and supports fast, repeatable installation with included locking hardware and trim panels, making it well-suited for control panels, power distribution, and sensor assemblies.
The product lists cradle-to-gate PCF of 124.4 kg CO2 eq (Category B) and a weight of 50.5 kg per pack. These metrics support lifecycle assessment and green procurement decisions, helping quantify environmental impact alongside performance in VX-based panel assemblies.
