Rittal 8609260 TS Divider panel for TS enclosures - IP54
Part Number: 8609260
Quick Summary
Rittal 8609260 TS Divider panel shields individual enclosure cells within TS enclosures for organized control panels. This solution reduces wiring clutter and improves heat management by separating sections and enabling targeted airflow. The divider offers IP54 protection and a symmetrical frame design that allows rear mounting when space permits, enhancing serviceability. With assembly parts included, it supports scalable configurations and maintains sealing integrity. For engineers and procurement teams, this panel aligns with standard TS hardware while delivering robust protection, reliable fit, and reduced lifecycle costs in industrial environments. In practice, it complements other Rittal enclosure accessories to streamline installation and maintenance while preserving regulatory compliance and compact footprint.
Product Information
Extended Description

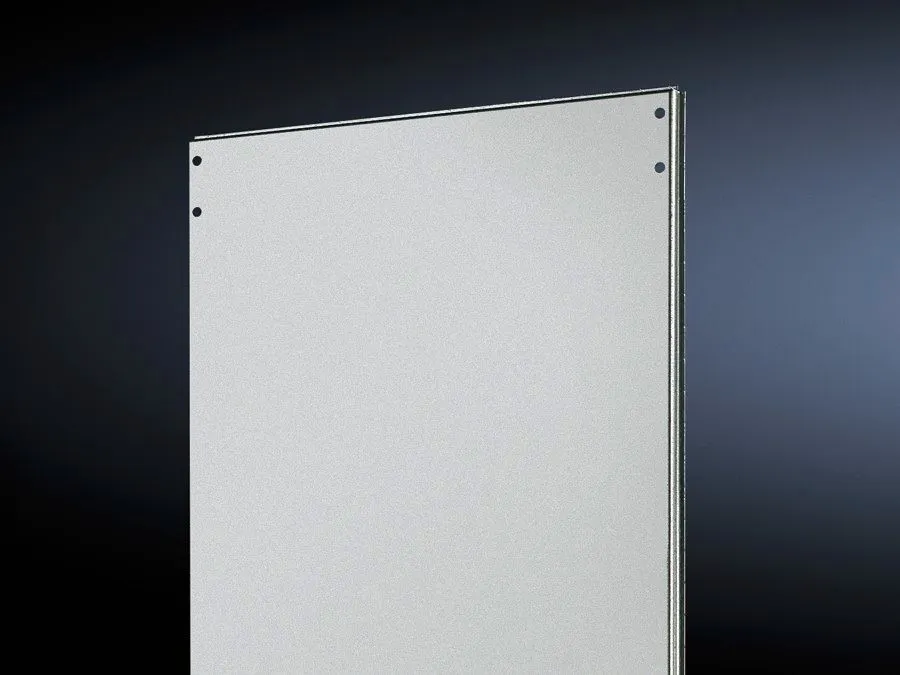

8609260 Rittal: TS Divider panel, for TS, for WD: 2200x600 mm
Article number
TS 8609.260
Product description
For shielding individual enclosure cells. All-round, double fold for stability and to hold the seal. Thanks to the symmetry of the enclosure frame, divider panels may also be fitted at the rear, dimensions permitting.
Applications
Notches in the corners and half-way up the sides permit the use of angular baying brackets and baying brackets, even with a divider panel fitted.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type: TS 8 | Height: = 2,200 mm | Depth: = 600 mm
Installation options
For mounting on the outer mounting level
Assembly instruction
The divider panel may also be fitted at the rear. This allows, e.g. frequency converters for heat dissipation to be installed in a divider panel with the cooling units facing outwards and protected/finished off with a cover.
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
15.6 kg
Customs tariff number
94039910
EAN
4028177208773
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
TS Divider panel, for TS, for WD: 2200x600 mm
Feature: Symmetrical TS frame divider enabling rear mounting. Business impact: Enables flexible cabinet layouts without custom fabrication, reducing project time and installation costs. Application: Install in TS 8 enclosures with WD 2200x600 mm to partition cells and improve cooling pathways. Feature: 1.5 mm zinc-plated sheet steel with double fold for stability and seal. Business impact:Improved durability and protection against dust and splash, leading to longer service intervals and lower replacement risk. Application: Use in indoor environments subject to routine washdowns or dust exposure while maintaining enclosure integrity. Feature: IP 54 protection per IEC 60 529. Business impact: Meets common industrial protection standards, ensuring safe operation in challenging environments and simplifying compliance documentation. Application: Ideal for proximity to motors, drives, or frequency converters where ingress protection is critical. Feature: Notches for corner and mid-side baying brackets. Business impact: Supports scalable enclosure configurations and easy integration with angular brackets, reducing installation complexity. Application: Enables modular expansions without dismantling existing panels. Feature: Includes assembly parts and supports rear-fitted configurations. Business impact: Streamlines procurement and field assembly, accelerating commissioning and ensuring consistent finishing. Application: Suitable for teams optimizing heat dissipation with rearward equipment mounting while keeping front-access panels intact.
Get a Quick Quote for a Rittal 8609260
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609260?
Enquire Now
FAQs
Install by aligning the panel with the TS 8 outer mounting level and securing with the included assembly parts. The design accommodates notches for angular baying brackets and supports rear mounting if required. The 2200x600 mm footprint ensures a clean, precise fit within standard TS enclosures, simplifying installation and reducing field adjustments.
IP54 is achieved through the 1.5 mm zinc-plated sheet steel construction and a double-fold seal that provides ingress protection against dust and splashes. This combination protects internal components in typical indoor industrial environments and supports compliant operation under common plant conditions.
Yes, the panel can be fitted at the rear to facilitate heat dissipation for mounted drives or frequency converters. This arrangement lets cooling units face outward, protected and finished with a cover, which improves airflow, reduces heat buildup, and maintains a tidy front panel appearance.
The divider provides better cell isolation, reducing cross-talk and wiring congestion, which shortens maintenance cycles and minimizes downtime. It also enables scalable enclosure configurations with minimal additional fabrication, translating to lower total cost of ownership and smoother upgrades in growing automation projects.
The product aligns with ETIM EC002525 and ECLASS 27182102 classifications and carries GTIN 4028177208773. It fits TS 8 enclosures (WD 2200x600 mm) and ships as a single pack, with a 15.6 kg weight per pack, supporting straightforward BOM inclusion and procurement processes.
