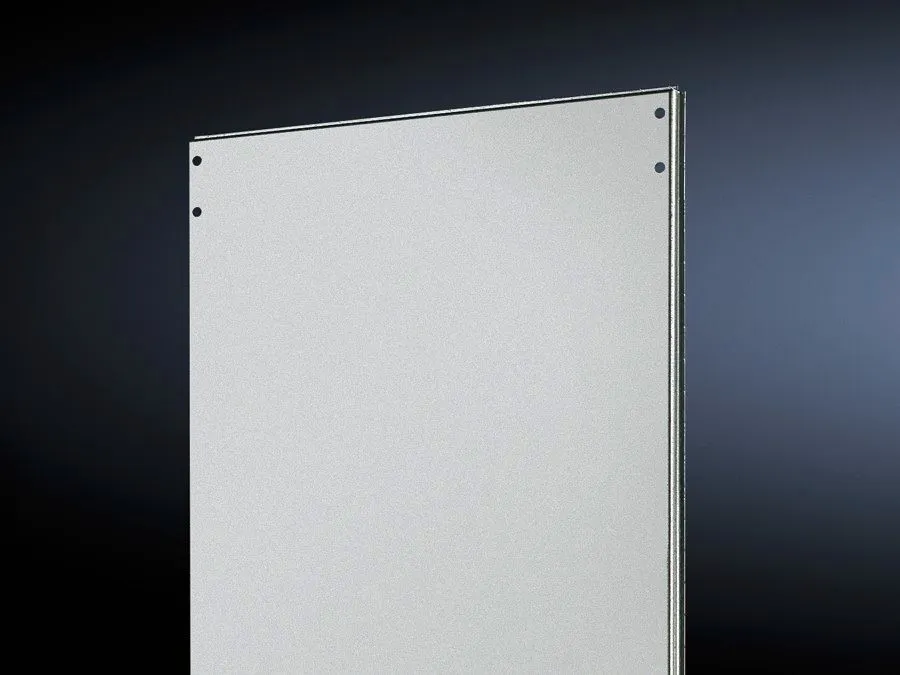

Rittal TS 8609.840 TS Divider Panel - IP54 rating
Part Number: 8609840
Quick Summary
The TS divider panel TS 8609.840 shields individual enclosure cells inside TS cabinets. Engineers rely on cleanly partitioned spaces to simplify wiring and maintenance while supporting reliable cooling management. It delivers IP 54 protection and a zinc-plated finish with 1.5 mm sheet steel, aligning with ETIM 9 EC002525 and ECLASS 8.0 27182102 standards. For businesses, this translates to faster assembly, reduced maintenance, and longer service life, with improved enclosure organization and predictable performance in demanding industrial environments.
Product Information
Extended Description
8609840 Rittal: TS Divider panel, for TS, for WD: 1800x400 mm
Article number
TS 8609.840
Product description
For shielding individual enclosure cells. All-round, double fold for stability and to hold the seal. Thanks to the symmetry of the enclosure frame, divider panels may also be fitted at the rear, dimensions permitting.
Applications
Notches in the corners and half-way up the sides permit the use of angular baying brackets and baying brackets, even with a divider panel fitted.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type: TS 8 | Height: = 1,800 mm | Depth: = 400 mm
Installation options
For mounting on the outer mounting level
Assembly instruction
The divider panel may also be fitted at the rear. This allows, e.g. frequency converters for heat dissipation to be installed in a divider panel with the cooling units facing outwards and protected/finished off with a cover.
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
8.15 kg
Customs tariff number
94039910
EAN
4028177208780
ETIM 9
EC002525
ECLASS 8.0
27182102
Product description
TS Divider panel, for TS, for WD: 1800x400 mm
Feature: All-round, double fold framing provides stability and a robust seal. Business Impact: Enhances panel rigidity and protects against dust and moisture ingress, reducing field adjustments and warranty claims. Application: Ideal for shielding individual enclosure cells in TS systems where reliability and seal integrity matter. Feature: Symmetric frame design allows rear mounting when dimensions permit. Business Impact: Enables flexible cooling and wiring layouts, including placing frequency converters or heat exchangers with outward-facing cooling units. Application: Suitable for TS enclosures that require rear-fitted components without sacrificing enclosure aesthetics. Feature: Material and finish—1.5 mm sheet steel, zinc-plated. Business Impact: Delivers durability and corrosion resistance in harsh industrial environments, lowering replacement costs and downtime. Application: Long-term enclosure partitioning in factory automation and control panels. Feature: IP protection rating IP54. Business Impact: Provides reliable dust and splash protection, supporting compliance with standard enclosure safety practices. Application: Critical for production lines and outdoor or semi-indoor installations where wash-downs occur. Feature: Installation options and included assembly parts. Business Impact: Simplifies on-site assembly, reduces installation time, and ensures correct fitment with outer mounting level. Application: Fast integration within TS 8 enclosures and when upgrading existing panels.
Get a Quick Quote for a Rittal 8609840
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8609840?
Enquire Now
FAQs
Yes. The divider panel fits TS enclosures up to TS 8 with a height of 1800 mm and depth of 400 mm. It is designed for mounting on the outer mounting level and includes assembly parts for straightforward installation; the notches and symmetry also allow flexible bracket placement for baying.
The panel is manufactured from 1.5 mm sheet steel with a zinc-plated surface for corrosion resistance. It carries an IP54 protection rating per IEC 60529, providing reliable dust and splash protection suitable for demanding industrial environments.
Yes. The assembly instructions note that the divider panel may be fitted at the rear, enabling rear-facing mounting of cooling units or other components while keeping the front area clean and accessible for maintenance.
Key standards and classifications include IP54 protection per IEC 60529, ETIM 9 EC002525, and ECLASS 8.0 27182102. The product also carries the HS/tariff designation 94039910 and uses the EAN 4028177208780 for cataloging.
Partitioning enclosures with the TS 8609.840 simplifies wiring layouts and access for inspections, reducing maintenance time. The robust zinc-plated steel and integrated assembly parts lower replacement costs and on-site labor, delivering a favorable return on investment over the panel’s service life.
