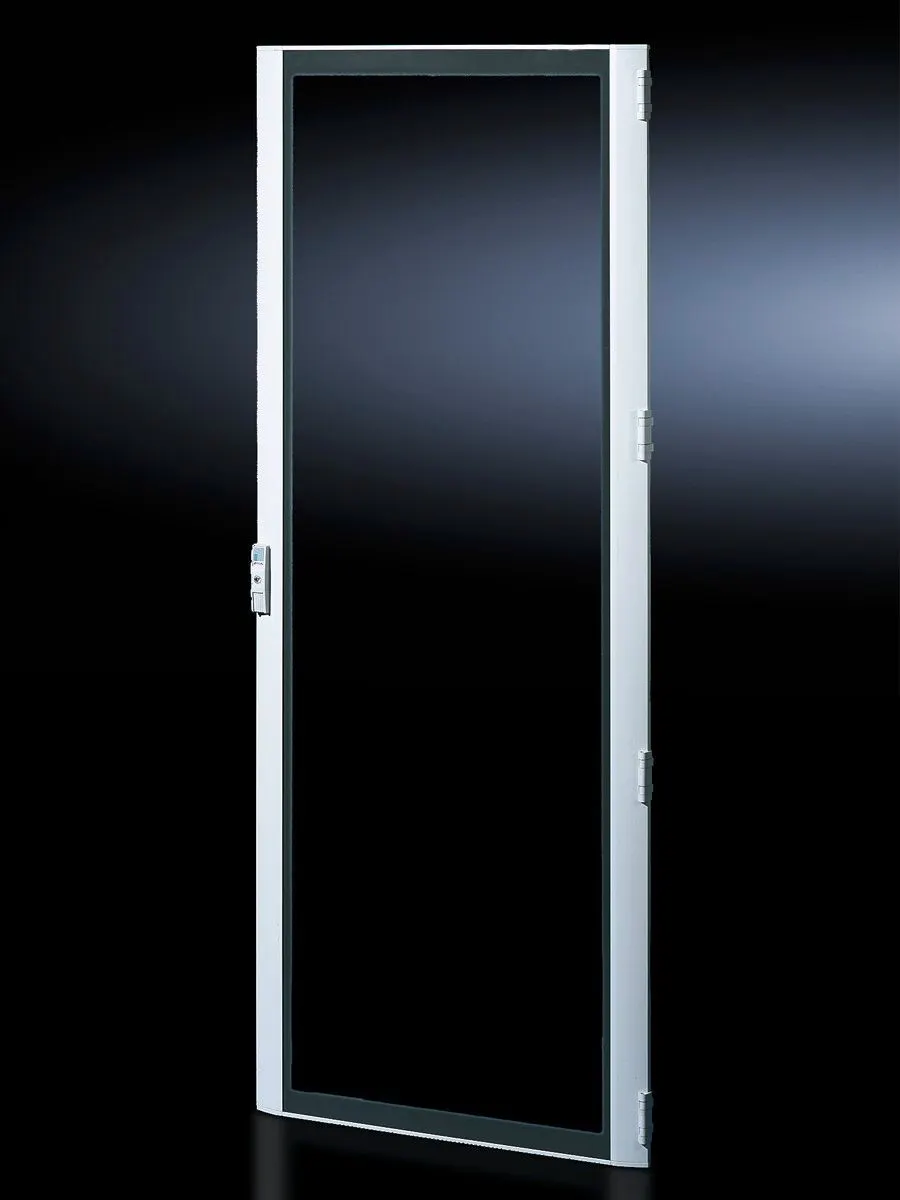

Rittal 8610625 TS Glazed Door - IP55 Viewing Window
Part Number: 8610625
Quick Summary
Rittal 8610625 TS Glazed Door provides a viewing access point for TS and VX SE enclosures, enabling quick inspections in electrical cabinets. Many installers struggle with bulky rear panels and limited visibility; this glazed door eliminates that pain by offering a large viewing area and a straightforward retrofit. Key certifications and standards for this solution include IP 55 protection, a 3 mm safety glass viewing window, and a rugged powder-coated aluminium frame designed for harsh industrial environments. The unit is compatible with TS, TS IT, and VX SE enclosures in the 600x2200 mm footprint, simplifying procurement and minimizing downtime. ETIM and ECLASS classifications further support accurate sourcing and seamless integration into maintenance workflows.
Product Information
Extended Description
8610625 Rittal: TS Glazed door, for TS, TS IT, SE, for WH: 600x2200 mm
Article number
TS 8610.625
Product description
Instead of a sheet steel door or rear panel.
Material
Frame: Extruded aluminium section | Corner pieces: Die-cast zinc | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
Colour
Frame: RAL 7035 | Corner pieces: RAL 7035 | Viewing window (printed mask on the inside): RAL 9005
Supply includes
Viewing door frame with safety glass | Locking rod with double-bit insert | 180° hinges (4)
Visible area
Viewing window width: 460 mm | Viewing window height: 2,040 mm
Viewing window height
2,040 mm
Assembly instruction
Lock components are required when mounting instead of the rear panel
IP protection category to IEC 60 529
IP 55
To fit
Enclosure type: TS | TS IT | VX SE | Width: = 600 mm | Height: = 2,200 mm
Packs of
1 pc(s).
Weight/pack
16.2 kg
EAN
4028177693869
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
TS Glazed door, for TS, TS IT, SE, for WH: 600x2200 mm
Viewing window and safety glass provide immediate visual access to internal components, reducing the need for unnecessary cabinet openings and accelerating maintenance cycles; this translates to lower mean time to repair and safer, more efficient inspections in live systems. The extruded aluminium frame with die-cast zinc corner pieces delivers a robust yet lightweight door that resists corrosion in demanding environments, while keeping installation simple and cost-effective. The powder-coated finish and colour coordination (Frame: RAL 7035; Corner pieces: RAL 7035; Inner printed mask: RAL 9005) ensure long-term aesthetics and consistent branding across installations. IP 55 protection supports compliance for outdoor- or factory-floor deployments, protecting against dust and water ingress during washdown or rain exposure. Locking rod with double-bit insert and 180° hinges (4) enable secure, wide-access mounting; assembly instructions note that mounting may replace the rear panel, reducing retrofit complexity. With a viewing window width of 460 mm and height of 2,040 mm, this door provides a substantial field of view for rapid line checks, while the 16.2 kg weight and single-pack configuration simplify on-site handling. The door is designed for TS, TS IT, VX SE enclosures with a 600x2200 mm footprint, enabling straightforward integration into existing architectures and procurement workflows.
Get a Quick Quote for a Rittal 8610625
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8610625?
Enquire Now
FAQs
The door uses four 180° hinges and a locking rod with a double-bit insert. When mounting in place of the rear panel, follow the assembly instructions to ensure the lock components are correctly positioned, guaranteeing the intended IP55 seal and hinge alignment for a reliable retrofit on TS, TS IT, and VX SE enclosures.
Yes. The glazed door is specified for enclosure types TS, TS IT, and VX SE with a 600×2200 mm footprint, providing a seamless retrofit option that preserves alignment with existing mounting rails and cable entries.
Key specs include a frame of extruded aluminium with die-cast zinc corner pieces, 3 mm safety viewing glass, powder-coated finish (Frame and Corner pieces in RAL 7035, printed mask in RAL 9005), IP55 protection, viewing window 460 mm wide by 2,040 mm high, and a weight of 16.2 kg per pack.
Yes. It adheres to IEC 60529 IP55 requirements, providing protection against dust ingress and water jets, which supports safe operation in typical industrial environments and during washdown cycles when properly installed.
Regularly inspect hinges and the locking rod for smooth operation, apply manufacturer-recommended lubrication, and ensure correct rear-panel mounting if specified. The door reduces downtime by enabling quick visual checks, eliminates the need for rear panels in certain upgrades, and aligns with standard TS enclosure footprints to streamline procurement and commissioning.
