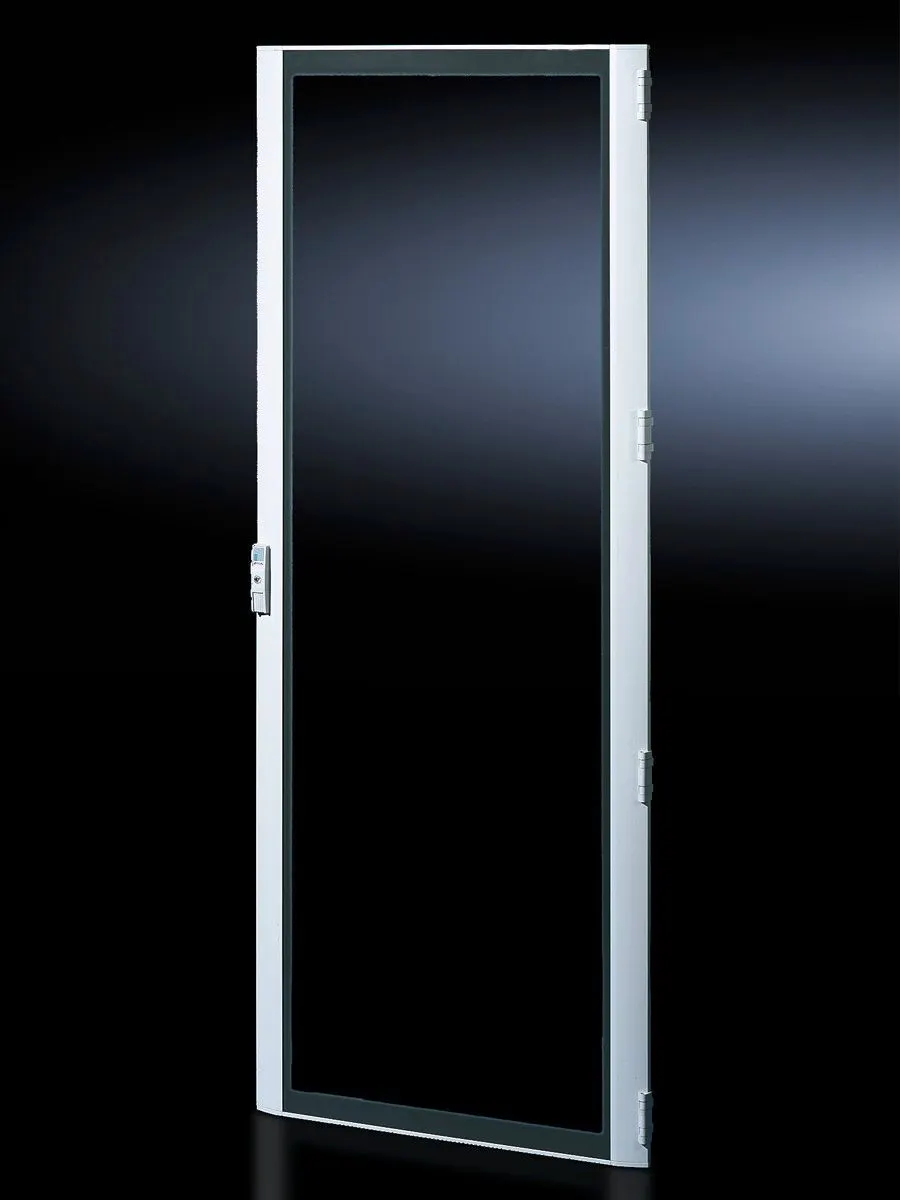

Rittal TS 8610.805 Glazed Door for TS/SE VX SE - IP55
Part Number: 8610805
Quick Summary
The TS 8610.805 glazed door from Rittal provides a clear viewing panel for TS enclosures. It helps reduce downtime by letting operators verify status without fully opening the cabinet, minimizing dust ingress and exposure. The accessory carries CE compliance and an IP 55 rating, supporting safe operation in industrial environments. With a powder-coated aluminium frame and a printed inner mask, it combines durability with clear visibility. For engineers and buyers, this door streamlines maintenance workflows, speeds routine checks, and simplifies installation across TS, TS IT, and VX SE families, delivering consistent performance and a lower total cost of ownership.
Product Information
Extended Description
8610805 Rittal: TS Glazed door, for TS, TS IT, SE, for WH: 800x2000 mm
Article number
TS 8610.805
Product description
Instead of a sheet steel door or rear panel.
Material
Frame: Extruded aluminium section | Corner pieces: Die-cast zinc | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
Colour
Frame: RAL 7035 | Corner pieces: RAL 7035 | Viewing window (printed mask on the inside): RAL 9005
Supply includes
Viewing door frame with safety glass | Locking rod with double-bit insert | 180° hinges (4)
Visible area
Viewing window width: 660 mm | Viewing window height: 1,840 mm
Viewing window height
1,840 mm
Assembly instruction
Lock components are required when mounting instead of the rear panel
IP protection category to IEC 60 529
IP 55
To fit
Enclosure type: TS | TS IT | VX SE | Width: = 800 mm | Height: = 2,000 mm
Packs of
1 pc(s).
Weight/pack
18 kg
Customs tariff number
94039910
EAN
4028177693852
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
TS Glazed door, for TS, TS IT, SE, for WH: 800x2000 mm
Feature: Viewing window dimensions and safety glass specification enable quick status checks without exposing sensitive components. Business Impact: Reduces mean time to repair and minimizes contamination risk, improving uptime in automated lines. Application: Ideal for TS and VX SE enclosures in manufacturing environments where accessibility and visibility are critical. Feature: Extruded aluminium frame with powder-coated finish provides corrosion resistance and long-term durability. Business Impact: Extends service life in harsh industrial spaces, lowering replacement costs. Application: Suitable for control cabinets in outdoor or damp factory floors. Feature: IP 55 ingress protection and CE compliance ensure safe operation in dusty and splash-prone areas. Business Impact: Meets regulatory requirements and protects critical electronics, reducing warranty claims. Application: Use across European facilities with strict safety standards. Feature: Large viewing window (660 mm x 1,840 mm) and 3 mm safety glass support clear diagnostics. Business Impact: Improves ergonomic inspection and reduces line downtime. Application: Facilitates rapid visual checks during routine maintenance. Feature: Includes door frame with safety glass, locking rod with double-bit insert, and 180° hinges (4). Business Impact: Simplifies installation and secure closure, improving enclosure integrity. Application: Fits 800x2000 mm TS configurations and similar TS IT / VX SE formats. Feature: Color coordination with frame and corner pieces in RAL 7035 and window mask in RAL 9005 enhances readability. Business Impact: Improves operator readability and reduces user error. Application: Standardized appearance across multi-bay installations.
Get a Quick Quote for a Rittal 8610805
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8610805?
Enquire Now
FAQs
The TS 8610.805 comes as a complete glazed door assembly designed for TS, TS IT, and VX SE enclosures. When replacing a rear panel, ensure the lock components are installed as part of the mounting process. Verify enclosure width of 800 mm and height of 2000 mm, and use the 180° hinges (four in total) for full access. The included frame and safety glass must be handled with care to preserve IP55 integrity.
The viewing window is 660 mm wide and 1,840 mm high, made with 3 mm safety glass. The window is set within a powder-coated aluminium frame, with a printed inner mask for clear readability. This configuration provides a large, easily inspected area while maintaining enclosure protection and structural rigidity.
Yes, the glazed door is CE compliant, aligning with European safety and performance standards. The IP55 rating signifies protection against limited dust ingress and protection from water jets from any direction, making it suitable for typical industrial environments where dust and splash exposure is possible.
This door is designed for TS, TS IT, and VX SE enclosures, with an overall footprint compatible with 800x2000 mm WH configurations. When mounting instead of a rear panel, ensure the locking components are installed and that mounting hardware accommodates four 180° hinges. The weight is distributed across the 18 kg per pack, so handle with care during installation.
Upgrading to the TS 8610.805 glazed door reduces downtime by enabling rapid visual checks without cabinet opening, lowers dust ingress risk, and improves operator safety. The durable powder-coated aluminium frame and glass window reduce replacement frequency, while CE and IP55 certification support regulatory compliance and long-term reliability in automated production lines.
