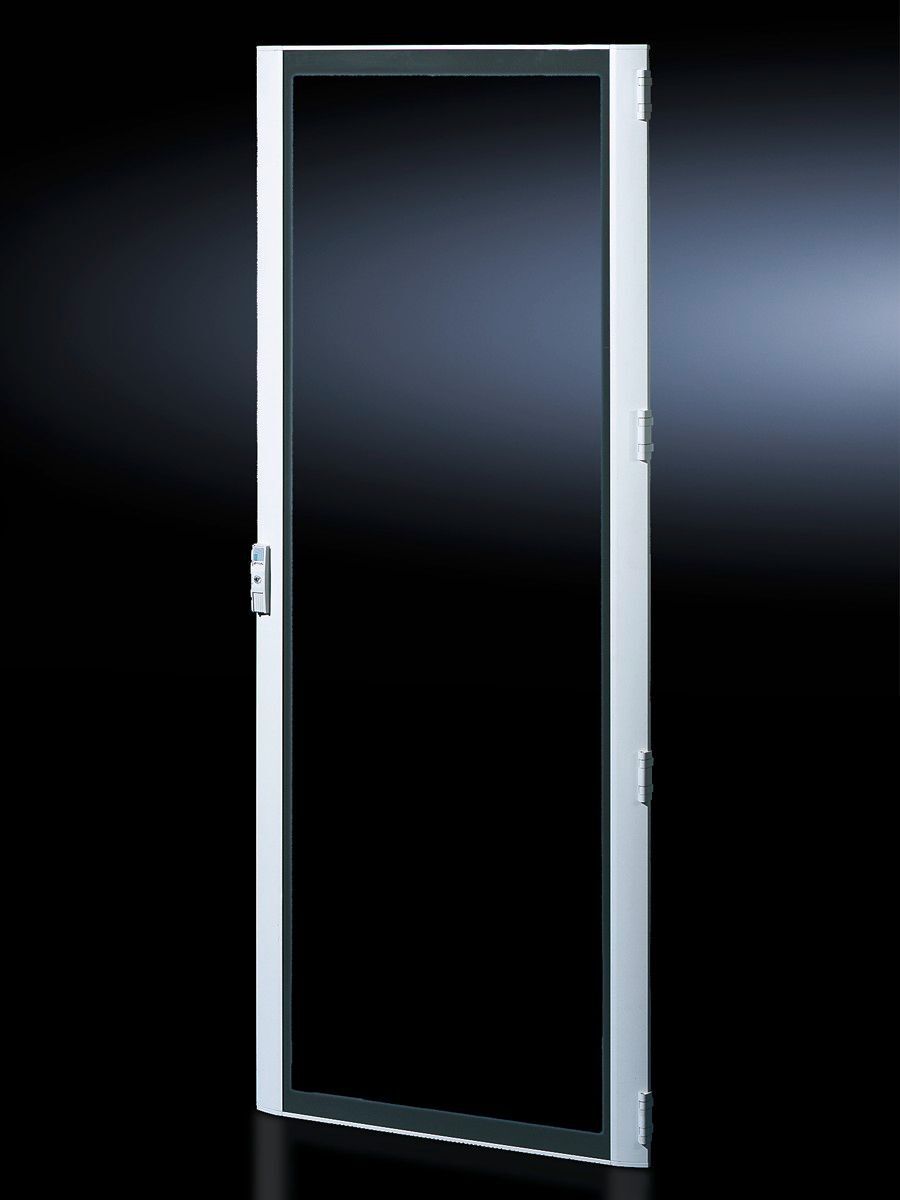

Rittal TS Glazed door TS 8610.825 - IP 55 rating
Part Number: 8610825
Quick Summary
Rittal TS Glazed door is a viewing door for TS enclosures used in electrical and control cabinet environments. Engineers often struggle with maintaining visibility while preserving IP protection and a clean, professional look in demanding industrial spaces. IP 55 protection ensures dust and water ingress resistance, while the frame’s powder-coated finish and safety glass support safe, compliant operation. CE considerations and common enclosure standards drive the need for reliable viewing access; this door aligns with TS, TS IT, and VX SE families, offering a consistent aesthetic and performance across projects. By standardizing on this glazed door, OEMs and integrators reduce part variety and accelerate commissioning while improving maintenance visibility and operator safety.
Product Information
Extended Description
8610825 Rittal: TS Glazed door, for TS, TS IT, SE, for WH: 800x2200 mm
Article number
TS 8610.825
Product description
Instead of a sheet steel door or rear panel.
Material
Frame: Extruded aluminium section | Corner pieces: Die-cast zinc | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
Colour
Frame: RAL 7035 | Corner pieces: RAL 7035 | Viewing window (printed mask on the inside): RAL 9005
Supply includes
Viewing door frame with safety glass | Locking rod with double-bit insert | 180° hinges (4)
Visible area
Viewing window width: 660 mm | Viewing window height: 2,040 mm
Viewing window height
2,040 mm
Assembly instruction
Lock components are required when mounting instead of the rear panel
IP protection category to IEC 60 529
IP 55
To fit
Enclosure type: TS | TS IT | VX SE | Width: = 800 mm | Height: = 2,200 mm
Packs of
1 pc(s).
Weight/pack
20 kg
EAN
4028177693876
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
TS Glazed door, for TS, TS IT, SE, for WH: 800x2200 mm
Feature → Business Impact → Application: The TS Glazed door uses an extruded aluminium frame with die-cast zinc corner pieces and a 3 mm safety glass viewing window, delivering a robust, corrosion-resistant enclosure accessory that reduces downtime and maintenance risk in harsh environments. This translates to measurable efficiency gains on the plant floor and simplified compliance with safety expectations for control cabinets in aerospace, food-and-beverage, and automotive facilities. Application-wise, the door is designed for TS, TS IT, and VX SE enclosures with a WH footprint of 800 × 2200 mm, making retrofit and standardization across multiple lines straightforward, while the 180° hinges and locking rod with double-bit insert streamline installation and future servicing. The powder-coated surface reduces repaint cycles and cosmetic wear, preserving a professional appearance over the equipment’s lifecycle. A single 1-piece pack (20 kg) simplifies logistics and reduces total cost of ownership in MRO programs.
Get a Quick Quote for a Rittal 8610825
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8610825?
Enquire Now
FAQs
The TS 8610.825 glazed door is designed for TS, TS IT, and VX SE enclosure families and fits a WH size of 800 mm width by 2,200 mm height. It ships as a single-pack accessory and includes a viewing door frame, safety glass, four 180° hinges, and a locking rod with double-bit insert. When mounting in place of a rear panel, ensure the required lock components are installed per the assembly instructions to maintain alignment and security.
The viewing window provides a width of 660 mm and a height of 2,040 mm, using a 3 mm single-pane safety glass within an extruded aluminium frame. This configuration delivers clear visibility while maintaining structural integrity and IP protection, suitable for routine inspection without compromising enclosure protection.
The door is rated IP 55, providing protection against limited dust ingress and water spray from all directions. This rating supports reliable operation in typical factory environments, improving enclosure reliability and reducing maintenance exposure in dusty or damp conditions.
Each pack includes the viewing door frame with safety glass, a locking rod with a double-bit insert, and four 180° hinges. The product is sold as a single pack, with an approximate weight of 20 kg, simplifying handling and installation in standard manufacturing settings.
Yes, the glazed door can replace a rear panel where viewing access is beneficial. Installation requires locking components when mounting in place of a rear panel, and you should follow the provided assembly instructions to ensure correct mounting, alignment, and secure operation within TS, TS IT, or VX SE enclosures.
