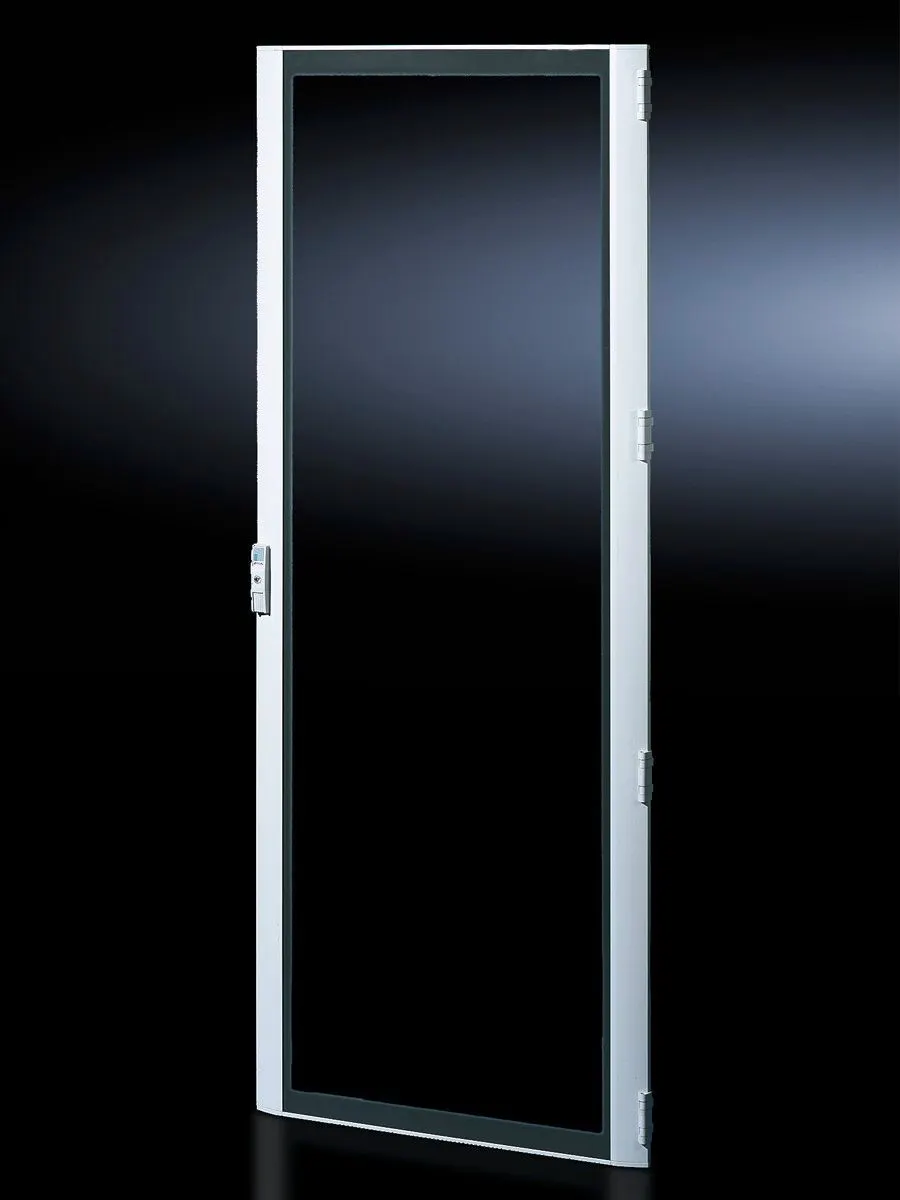

Rittal TS 8610.885 Glazed Door - IP55, 800x1800 mm
Part Number: 8610885
Quick Summary
Rittal TS 8610.885 Glazed Door provides a viewing access solution for TS enclosures, enabling safe inspection. For maintenance teams, replacing rear panels or sheet doors without a view slows diagnosis and increases downtime. With IP55 protection and CE compliance, it is engineered for harsh industrial environments and safe operation. Coupled with a powder-coated aluminium frame in RAL 7035 and a 660x1640 mm viewing area, it delivers faster service and reduced ownership costs. The door ships as a complete kit with viewing frame, safety glass, locking rod, and four 180° hinges. Its compatibility with TS, TS IT and VX SE enclosures simplifies procurement and supports scalable cabinet designs.
Product Information
Extended Description
8610885 Rittal: TS Glazed door, for TS, TS IT, SE, for WH: 800x1800 mm
Article number
TS 8610.885
Product description
Instead of a sheet steel door or rear panel.
Material
Frame: Extruded aluminium section | Corner pieces: Die-cast zinc | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
Colour
Frame: RAL 7035 | Corner pieces: RAL 7035 | Viewing window (printed mask on the inside): RAL 9005
Supply includes
Viewing door frame with safety glass | Locking rod with double-bit insert | 180° hinges (4)
Visible area
Viewing window width: 660 mm | Viewing window height: 1,640 mm
Viewing window height
1,640 mm
Assembly instruction
Lock components are required when mounting instead of the rear panel
IP protection category to IEC 60 529
IP 55
To fit
Enclosure type: TS | TS IT | VX SE | Width: = 800 mm | Height: = 1,800 mm
Packs of
1 pc(s).
Weight/pack
16.6 kg
EAN
4028177693838
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
TS Glazed door, for TS, TS IT, SE, for WH: 800x1800 mm
Feature → Business Impact → Application: The glazed viewing window uses 3 mm safety glass set in an extruded aluminium frame, delivering a clear inspection path while maintaining enclosure integrity. This translates to shorter maintenance cycles and quicker fault diagnosis on production lines built around TS enclosures. Application: Ideal for electrical cabinets where rapid visual access is needed without compromising protection. The lightweight, powder-coated frame (RAL 7035) resists corrosion in demanding environments, lowering repaint costs and extending service life. Application: Workshops and factory floors with exposure to dust and humidity. IP55 protection guards against ingress, enabling safe operation in damp or dusty zones and ensuring compliance with harsh setting requirements. Application: Automated warehouses and process lines where reliability matters. The kit includes 180° hinges (4) and a locking rod with double-bit insert, enabling straightforward installation and secure closure, reducing commissioning time and improving tamper resistance. Application: New plant installations and cabinet upgrades. The module fits TS, TS IT, and VX SE enclosures at 800x1800 mm, standardizing upgrades and simplifying procurement. Application: Medium-to-large control cabinets where a consistent enclosure footprint accelerates design wins and spare part planning. The integrated viewing area (660x1640 mm) supports ergonomic access for operators and technicians, boosting efficiency in routine checks and audits. Application: Maintenance workflows seeking safer, faster access.
Get a Quick Quote for a Rittal 8610885
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8610885?
Enquire Now
FAQs
Yes. The glazed door is designed to fit TS, TS IT, and VX SE enclosure types, with the standard 800x1800 mm footprint and mounting provisions that align with the TS family. This compatibility simplifies procurement, reduces part proliferation, and accelerates installation on mixed-portfolio lines.
The door features a 660 mm wide by 1640 mm high viewing window, using 3 mm single-pane safety glass. The frame is extruded aluminium with a powder-coated finish in RAL 7035, while corner pieces are die-cast zinc. The inside viewing mask is printed in RAL 9005 for contrast and visibility.
Installation requires the locking rod with a double-bit insert and four 180° hinges. Assembly instructions note that lock components are needed when mounting in place of a rear panel. This packaging supports quick, secure mounting and aligns with standard TS enclosure mounting patterns to minimize field adjustments.
The door is IP55 rated for protection against dust and water ingress, suitable for harsh industrial environments. It complies with CE safety standards. Product references include ETIM 9 EC000747 and ECLASS 8.0 27182204, aiding procurement metadata and cross-system classification.
By enabling direct viewing without rear-panel removal, maintenance time is reduced, uptime increases, and fault diagnosis is faster. The robust aluminium frame and powder-coated finish lower lifecycle costs, while the standardized 800x1800 mm footprint supports scalable cabinet design and easier part forecasting across multiple lines.
