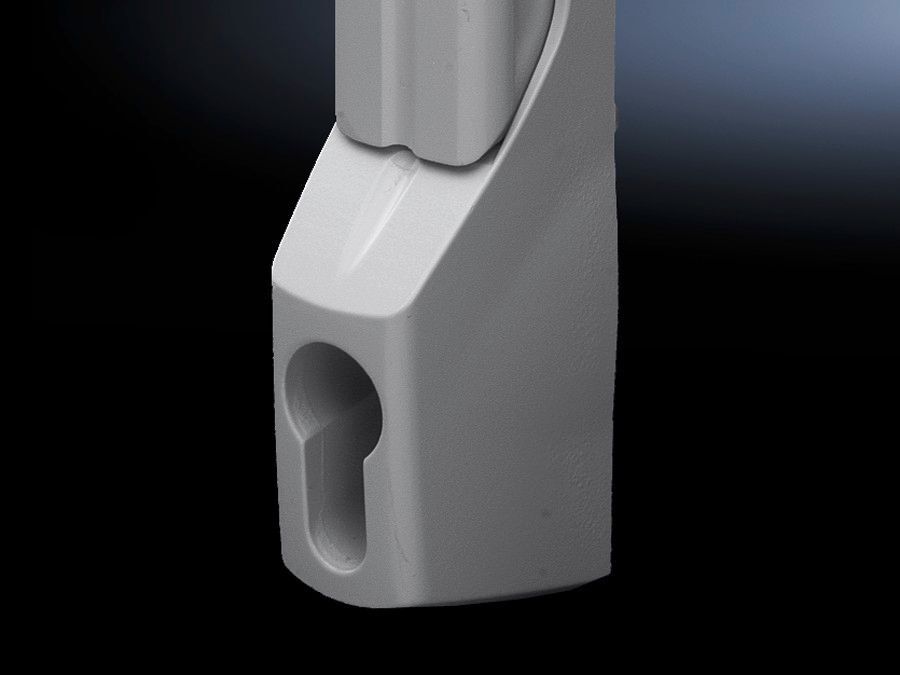

Rittal TS 8611.340 TS Comfort Handle - Folding action
Part Number: 8611340
Quick Summary
TS Comfort handle by Rittal provides folding action to free swing space on TS enclosure doors. Engineers often struggle with limited space for installed equipment; this design maximizes door surface area. Designed for DIN 18 252 lock compatibility and aligned with ETIM EC000327 and ECLASS 27409217 classifications, the solution supports CE-ready compliance where applicable. The combination of a die-cast zinc core and powder-coated chrome finish delivers durability, while installation remains straightforward, reducing downtime and service costs for panel builders. This approach translates to faster commissioning and consistent actuation across multiple TS enclosure lines.
Product Information
Extended Description
8611340 Rittal: TS Comfort handle, for TS, TS IT, SE, PC, IW, for semi-cylinder, matt chrome
Article number
TS 8611.340
Design
for profile half-cylinder
Product description
As the handle does not take up any swing space, due to its folding mechanism, the door surface area may be maximised for installed equipment.
Material
Die-cast zinc
Surface finish
Powder-coated
Colour
Matt, plated
Assembly instruction
The handle adaptor is required for mounting on glazed door TS, VX SE, lower door PC, designer door IW
Lock
Lock version:Â Prepared for the installation of profile semi-cylinders with an overall length of 40 or 45 mm (to DIN 18 252) or lock and push-button inserts with a length of 40 mm.
To fit enclosure type
TS
Packs of
1 pc(s).
Weight/pack
0.76 kg
Customs tariff number
83024110
EAN
4028177243033
ETIM 9
EC000327
ECLASS 8.0
27409217
Product description
TS Comfort handle, for TS, TS IT, SE, PC, IW, for semi-cylinder, matt chrome
Feature: Folding action eliminates swing space, increasing available door surface for equipment. Business Impact: enables tighter layouts and easier cable routing in TS enclosures. Application: ideal for TS, TS IT, SE, PC, and IW doors. Feature: Die-cast zinc construction with a powder-coated chrome finish ensures long-term durability in industrial environments. Business Impact: reduces replacement cycles and maintenance costs, supports CE-ready compliance where applicable. Application: suitable for demanding factory floors and control panel environments. Feature: Snap-mounted assembly and optional adaptor for glazed doors facilitate quick installation on TS, VX SE, and designer doors IW. Business Impact: streamlines retrofits and new builds, lowering installation time. Application: optimal for modern enclosure installations with mixed door types. Feature: Lock compatibility with 40 or 45 mm DIN 18252 profiles and push-button inserts. Business Impact: simplifies security upgrades without door replacement. Application: ideal for modular enclosure configurations. Feature: Comprehensive compatibility with ETIM EC000327 and ECLASS 27409217 classifications supports procurement integration. Business Impact: reduces sourcing friction and accelerates ordering processes. Application: fits standard parts catalogs and ERP systems.
Get a Quick Quote for a Rittal 8611340
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8611340?
Enquire Now
FAQs
The TS Comfort Handle is designed for TS enclosure doors and supports mounting on TS, TS IT, SE, PC, and IW families. It uses a snap-mounted system and includes an adaptor option for glazed doors, enabling rapid retrofit or new-build installations without extensive door modification.
Key specs include article number TS 8611.340, designed for profile half-cylinder, material die-cast zinc, surface powder-coated, weight 0.76 kg per pack, and a single-pack configuration. It is intended to fit TS enclosures with a 40 or 45 mm lock/profile option.
Yes. Assembly instructions indicate that a handle adaptor is required for mounting on glazed door TS, VX SE, lower door PC, and designer door IW, enabling flexible installation across mixed door types in a single enclosure line.
The lock version is prepared for profile semi-cylinders with lengths of 40 or 45 mm (DIN 18 252) or lock and push-button inserts with 40 mm length, allowing straightforward integration with standard security hardware in TS enclosures.
By maximizing door surface area, reducing swing space, and offering a quick snap-mounted installation with durable die-cast zinc and powder-coated finish, it speeds commissioning, lowers field adjustments, and supports reliable, long-term enclosure performance in industrial environments.
