Rittal 8612000 TS Punched Section - Zinc-plated
Part Number: 8612000
Quick Summary
The Rittal 8612000 TS Punched Section supports universal skeletons and partial assemblies inside TS enclosures. Installers struggle with precise alignment and secure mounting in tight spaces; this part simplifies both tasks and speeds up installs. Note: explicit SIL, CE, or IP certifications are not listed in the data; the product references ETIM EC002625 and ECLASS 27189234. For procurement and maintenance teams, the inner mounting level compatibility and 990 mm length translate to predictable stocking and faster changeouts. Designed for compatibility with VX SE, TP, PC, IW, and CableNet enclosures, it supports 1,000 mm width/depth and ships in packs of four for scalable projects.
Product Information
Extended Description

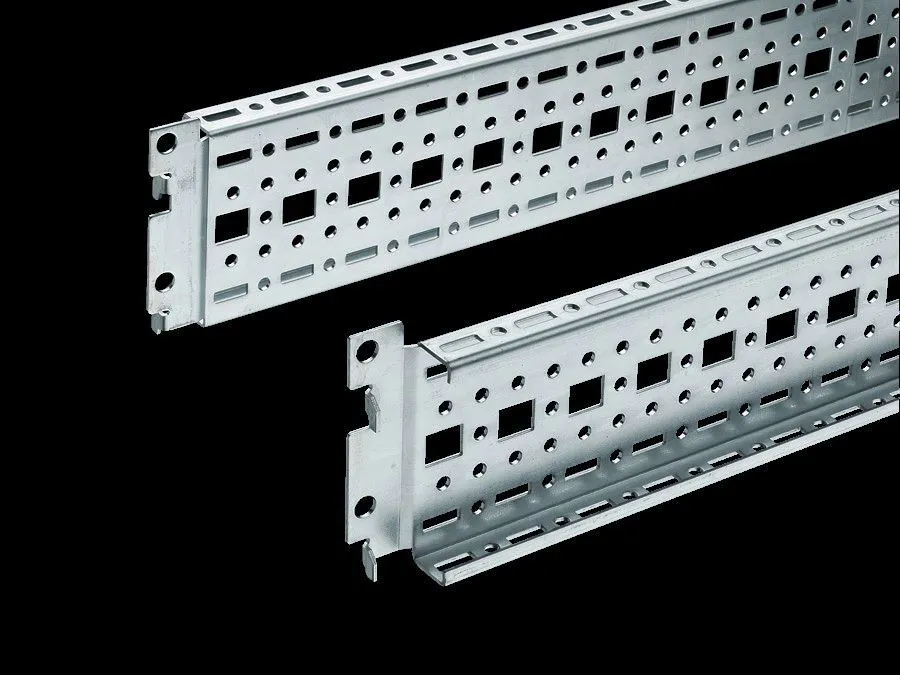

8612000 Rittal: TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 1000 mm, L: 990 mm
Article number
TS 8612.000
Design
for the inner mounting level
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
990 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW | TX CableNet | To fit width/depth: 1,000 mm
Packs of
4 pc(s).
Weight/pack
4.432 kg
PCF per pack (cradle-to-gate)
16.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177212053
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 1000 mm, L: 990 mm
Feature: TS punched section with mounting flange, 17 x 73 mm and a 990 mm length provides an inner mounting level. Business Impact: Enables modular, repeatable mounting with minimal on-site fabrication, reducing installation time and potential alignment errors for large enclosures. Application: Perfect for universal skeleton structures or partial assemblies inside VX SE, TP, PC, IW, and TX CableNet systems in 1,000 mm width/depth configurations. Feature: Zinc-plated sheet steel with assembly screws supplied. Business Impact: Delivers corrosion resistance in typical industrial environments and simplifies procurement by including hardware, lowering sourcing steps. Application: Ideal for internal mounting rails and vertical sections, ensuring consistent fastening into punched sections across multiple enclosure families. Feature: Installation options include height-offset on the inner mounting level and clear instructions for rail compatibility. Business Impact: Improves alignment accuracy and accommodates tall-control panels without rework, cutting install time and commissioning risk. Application: Install on the vertical TS, VX SE enclosure sections; for TP, the internal mounting rail is required. Feature: Pack of four with a total weight of 4.432 kg per pack; PCF per pack 16.9 kg CO2 eq (Cat B). Business Impact: Supports predictable logistics, reduces per-unit handling costs, and provides a quantifiable environmental footprint for cradle-to-gate reporting. Application: Useful for project planning, BOM creation, and sustainability metrics in controlled environments. Feature: Broad compatibility and fit notes include 1,000 mm width/depth fit and explicit product documentation (ETIM EC002625, ECLASS 27189234). Business Impact: Streamlines procurement and reduces guesswork during spec reviews, enhancing compliance and traceability. Application: Suitable for VX SE, TP, PC, IW, TX CableNet installations in industrial automation cabinets.
Get a Quick Quote for a Rittal 8612000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612000?
Enquire Now
FAQs
The 8612000 TS Punched Section is designed to fit VX SE, TP, PC, IW, and TX CableNet enclosures with a 1,000 mm width/depth. It uses a mounting flange on a zinc-plated sheet-steel rail and includes assembly screws. For TP installations, an internal mounting rail is required, and height-offset on the inner mounting level enables precise alignment during retrofit projects.
Key considerations include ensuring the internal mounting level rail is present for TP installations, utilizing the 990 mm length for proper clearance, and using the provided assembly screws. The product supports height-offset on the inner mounting level and is intended for 1,000 mm width/depth enclosures, which helps standardize mounting across multiple cabinet families.
Zinc-plated sheet steel provides corrosion resistance in typical industrial environments, extending component life and reducing maintenance needs. The 990 mm length and mounting flange enable secure, repeatable internal mounting with minimal fabrication. The included screws simplify procurement and on-site assembly, reducing project lead times and the risk of missing hardware during panel builds.
Each pack contains four sections with a combined weight of 4.432 kg and a cradle-to-gate PCF of 16.9 kg CO2 eq per pack (Cat B). Standardized packaging, included screws, and compatibility with multiple enclosure families reduce custom manufacturing and logistics costs while supporting sustainability reporting for enclosure projects.
Documentation is available via downloads and specification data: ETIM EC002625, ECLASS 27189234, and the EAN 4028177212053. The product is designed for VX SE, TP, PC, IW, and TX CableNet enclosures and ships as packs of four, with installation notes showing inner mounting level requirements and rail compatibility.
