Rittal 8612020 TS Punched Section - Inner mounting level
Part Number: 8612020
Quick Summary
The Rittal 8612020 TS punched section provides universal skeleton mounting for inner mounting level in enclosure interiors. Engineers often struggle with precise alignment and secure installation in compact cabinet bays, but this component locates directly into the Punchings and secures with included assembly screws, reducing field fiddling. While CE conformity and corrosion resistance are standard expectations for cabinet hardware, always verify specific CE/IP requirements from the official datasheet for your installation. The design is compatible with VX SE, TP, PC, and IW enclosure families, delivering scalable, cost-efficient mounting that supports repeatable assembly and predictable project timelines.
Product Information
Extended Description

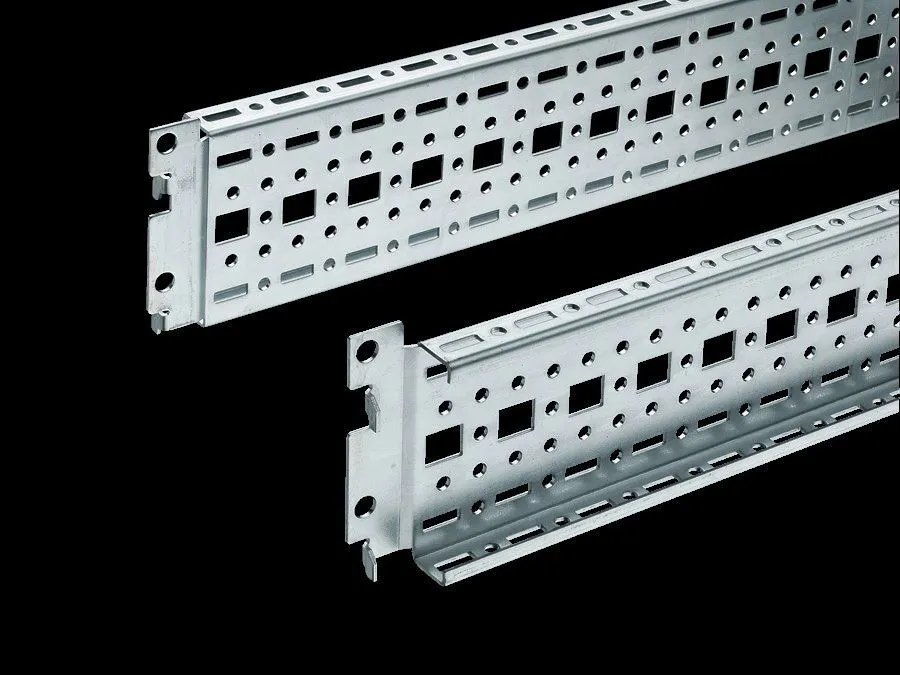

8612020 Rittal: TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 1200 mm, L: 1190 mm
Article number
TS 8612.020
Design
for the inner mounting level
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
1,190 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW | To fit width/depth: 1,200 mm
Packs of
4 pc(s).
Weight/pack
5.4 kg
Customs tariff number
73269098
EAN
4028177212060
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 1200 mm, L: 1190 mm
