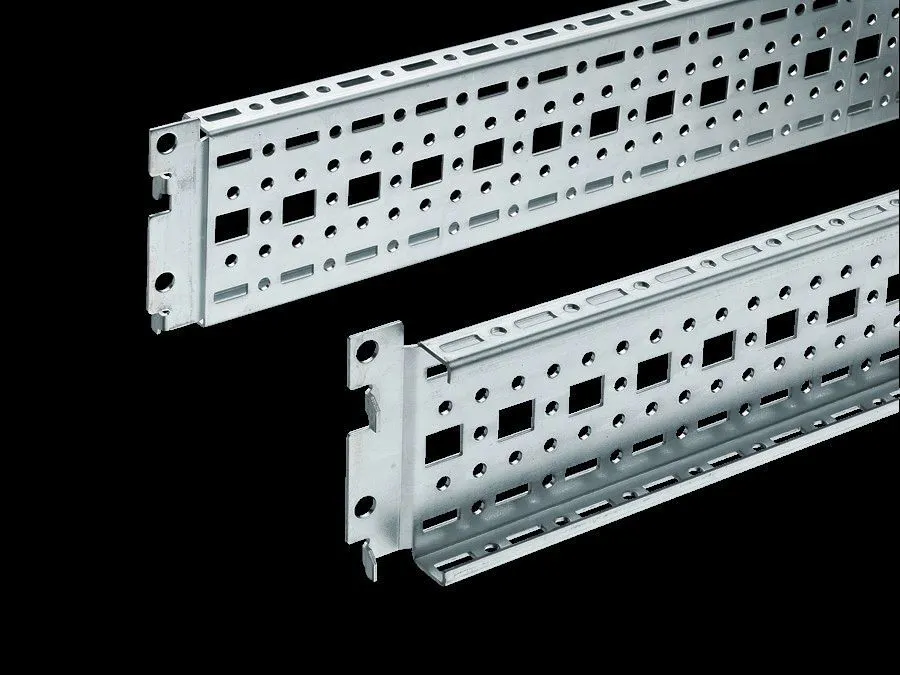

Rittal TS 8612.040 Punched Section - Zinc-Plated
Part Number: 8612040
Quick Summary
Rittal TS 8612.040 punched section with mounting flange enables secure inner mounting on enclosure skeletons. This component streamlines alignment and fastening when configuring VX SE, TP, PC, or IW enclosures, reducing field adjustments and rework. It aligns with ETIM EC002625 and ECLASS 27189234 data standards while the zinc-plated sheet steel construction delivers durability in demanding environments. Supplied with assembly screws, it supports fast, repeatable installations, helping OEMs and integrators cut installation time and lifecycle costs. With a 390 mm length and compatibility for 400 mm width/depth and 500 mm door width, it scales from small pilots to larger control panels, boosting asset uptime and overall project efficiency.
Product Information
Extended Description
8612040 Rittal: TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 400 mm, for door width: 500 mm, L: 390 mm
Article number
TS 8612.040
Design
For the inner mounting level and for mounting on doors
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
390 mm
To fit door width
500 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW | To fit width/depth: 400 mm
Packs of
4 pc(s).
Weight/pack
1.748 kg
PCF per pack (cradle-to-gate)
6.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177212077
ETIM 7.0
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 400 mm, for door width: 500 mm, L: 390 mm
Feature: Punched section with mounting flange enables secure inner mounting level. Business impact: simplifies alignment and reduces manual fastening, accelerating installation and improving repeatable results. Application: ideal for VX SE enclosure sections and other modular frames where a 17 x 73 mm rail fits the W/D 400 mm footprint. Feature: Sheet steel with zinc-plated finish provides durable, corrosion-resistant mounting against factory dust and humidity. Business impact: minimizes maintenance cycles and replacement costs in harsh environments. Application: suitable for industrial cabinets and heavy-use control panels. Feature: Pack details—four per pack; weight per pack 1.748 kg; assembly screws included. Business impact: lowers procurement steps and speeds job-site assembly. Application: convenient for stock-ready kits on production lines. Feature: Installation note—rail for internal mounting required when installing in TP. Business impact: reduces misalignment and repair work during retrofit. Application: ensures correct mounting behavior in TP configurations. Feature: PCF per pack 6.7 kg CO2 eq (Cat B) supports sustainability reporting. Business impact: helps meet green procurement goals and lifecycle assessments. Application: aligns with corporate ESG targets and supplier sustainability programs. Feature: Compatibility coverage—to fit VX SE, TP, PC, IW with width/depth 400 mm and door width 500 mm. Business impact: enables scalable upgrades and modular expansion without changing enclosures. Application: ideal for evolving control architectures and multi-bay cabinets.
