Rittal TS 8612.050 Punched Section - Zinc-plated
Part Number: 8612050
Quick Summary
Rittal TS 8612.050 Punched Section is a mounting rail for inner mounting levels in VX SE enclosures. Engineers often struggle with precise alignment and fast installation in tight cabinet spaces, and this rail simply locates into the punchings and secures. While the data does not list explicit SIL, CE, or IP ratings for this SKU, it is designed to integrate with CE-compliant enclosure ecosystems and supports secure mounting within IP-rated assemblies when used with approved enclosure systems. This accessory delivers reliable accelerator for enclosure build-outs, enhancing inner mounting work while reducing overall installation time and material handling. In practice, it complements other VX SE components and helps teams achieve repeatable, standards-aligned installations across modular enclosures.
Product Information
Extended Description

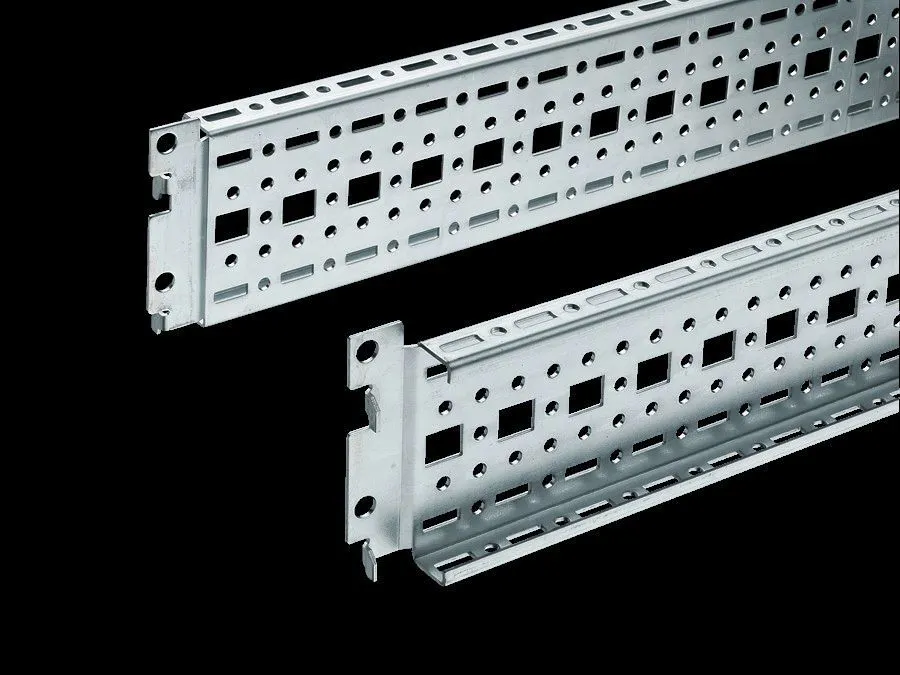

8612050 Rittal: TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 500 mm, for door width: 600 mm, L: 490 mm
Article number
TS 8612.050
Design
For the inner mounting level and for mounting on doors
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
490 mm
To fit door width
600 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW | To fit width/depth: 500 mm
Packs of
4 pc(s).
Weight/pack
2.264 kg
PCF per pack (cradle-to-gate)
8.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177212084
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 500 mm, for door width: 600 mm, L: 490 mm
Feature: Punched section with mounting flange and 17 x 73 mm profile, length 490 mm, designed for inner mounting level and for mounting on doors. Business Impact: Enables quick, repeatable positioning inside the cabinet and reduces manual alignment time during assembly. Application: Ideal for VX SE and TP enclosure configurations with a 500 mm W/D requirement and 600 mm door width. Feature: Zinc-plated sheet steel construction. Business Impact: Delivers corrosion resistance in harsh industrial environments, extending service life of the mounting hardware. Application: Suitable for factory floors, panel assembly lines, and automated cells where metal protection matters. Feature: Supplied with assembly screws. Business Impact: Cuts procurement steps and accelerates on-site installation, lowering labor costs. Application: Fits standard internal mounting on TS rails and is compatible with common enclosure accessories. Feature: Pack configuration and environmental footprint. Business Impact: Packs of 4 at 2.264 kg per pack enable predictable shipping and inventory planning, while PCF of 8.6 kg CO2 eq per pack (Category B) supports sustainability tracking. Application: Helpful for green procurement and lifecycle planning in large projects. Feature: Installation options and compatibility notes. Business Impact: Height-offset capability on the inner mounting level and vertical TS/VX SE alignment offer flexible fit within constrained spaces. Application: Particularly advantageous when retrofitting or upgrading existing VX SE, TP, PC, or IW enclosures. Feature: To fit and EN/ETIM alignment. Business Impact: Supports enclosure width/depth of 500 mm and compatibility with VX SE, TP, PC, IW families, ensuring a broad installation footprint. Application: Streamlines standardization across multiple project sites and product lines.
