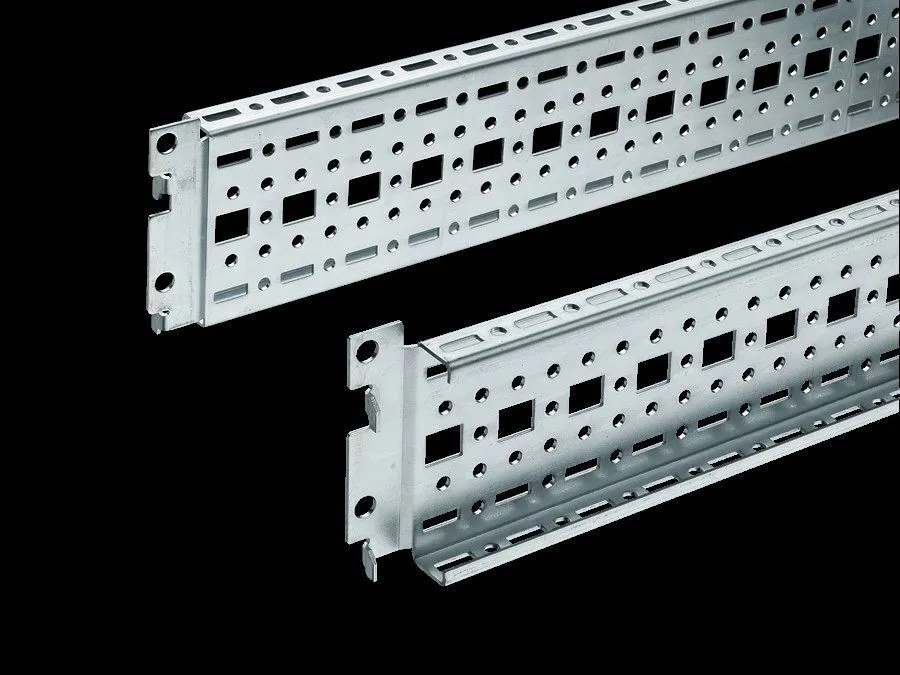

Rittal 8612060 TS Punched Section - Zinc-plated
Part Number: 8612060
Quick Summary
Rittal 8612060 TS punched section provides a secure inner mounting level for universal skeleton structures. When retrofitting or expanding enclosures, engineers often struggle to locate components quickly; this part simplifies locating into punchings and securing with assembly screws, reducing mounting time. Although specific SIL, CE, or IP certifications aren’t listed, the part aligns with industry classifications ETIM 9 EC002625 and ECLASS 8.0 27189234, and uses a zinc-plated sheet steel body for robust corrosion resistance. Designed for VX SE, TP, PC, and IW enclosures with a 600 mm footprint, it supports flexible configurations while maintaining a compact 590 mm length. With its universal fit and included hardware, it helps drive faster deployments and lowers field labor costs and project risk.
Product Information
Extended Description
8612060 Rittal: TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 600 mm, L: 590 mm
Article number
TS 8612.060
Design
for the inner mounting level
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
590 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW | To fit width/depth: 600 mm
Packs of
4 pc(s).
Weight/pack
2.648 kg
PCF per pack (cradle-to-gate)
10.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177212091
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 600 mm, L: 590 mm
Feature → Business Impact → Application: Inner mounting level rail integrated into the TS punched section enables quick locating into punchings and secure mounting, reducing assembly time on 600 mm-wide enclosures. This translates into faster panel builds and less field rework for VX SE, TP, PC, and IW series. Feature → Business Impact → Application: Zinc-plated sheet steel provides robust corrosion resistance in harsh industrial environments, extending service life and lowering maintenance costs for back-of-house cabinet installs and marine/offshore applications where damp or dusty conditions are common. Feature → Business Impact → Application: Supplied with assembly screws reduces loose hardware risk and simplifies procurement, enabling faster stocking and smoother job-site handoffs for integrators and OEMs. Feature → Business Impact → Application: The 590 mm length and 17 x 73 mm footprint match the inner mounting level requirements for standard 600 mm wide enclosures, ensuring a precise fit and minimizing drilling or machining on-site. Feature → Business Impact → Application: Packs of four with a weight of 2.648 kg per pack optimize logistics, packaging, and shipping costs while providing ample quantity for multi-unit installations. Feature → Business Impact → Application: Installation options including height-offset all-round on the vertical TS section provide flexible alignment with existing mounting rails, reducing need for additional spacers or adapters and speeding commissioning.
Get a Quick Quote for a Rittal 8612060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612060?
Enquire Now
FAQs
Yes. The TS 8612.060 is designed for 600 mm wide VX SE, TP, PC and IW enclosures and fits the inner mounting level with a 590 mm length. It ships with assembly screws and is intended for use on the vertical TS rail, with height-offset options to align mounting levels across sections.
The part locates directly into enclosure punchings and secures with included screws, eliminating the need for custom drilling or adaptors. Its standardized 17 x 73 mm profile and 590 mm length streamline mounting on 600 mm-wide enclosures, reducing assembly time and field labor costs.
The section is manufactured from sheet steel with a zinc-plated surface finish, delivering robust corrosion resistance. This combination is well-suited for typical industrial and mildly corrosive environments, helping extend service life and reduce maintenance intervals.
For TP installations, an internal mounting rail is required to support the inner mounting level. The product includes assembly screws, and its height-offset capability on the vertical TS section provides flexible alignment with existing rails, minimizing retrofit complexity.
While explicit SIL or IP ratings aren’t listed, the product aligns with ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications and provides a quantifiable environmental footprint by weight per pack and PCF metrics, supporting sustainable procurement discussions.
