Rittal 8612070 TS Punched Section - Zinc-Plated Mounting Flange
Part Number: 8612070
Quick Summary
Rittal TS 8612.070 punched section is designed to support mounting flanges for door-ready enclosures in industrial cabinets. This part simplifies assembly by locating into the punchings and securing, reducing tool time and potential misalignment during installation. Certification details are not listed in the provided data; verify CE marking, IP-related ratings, and other compliance notes via the official datasheets. The spec references ETIM EC002625 and ECLASS 27189234 for classification, which helps with procurement and cross-referencing in ERP systems. This combination supports streamlined sourcing, predictable lead times, and consistent mounting performance across VX SE, TP, PC, and IW enclosure families.
Product Information
Extended Description

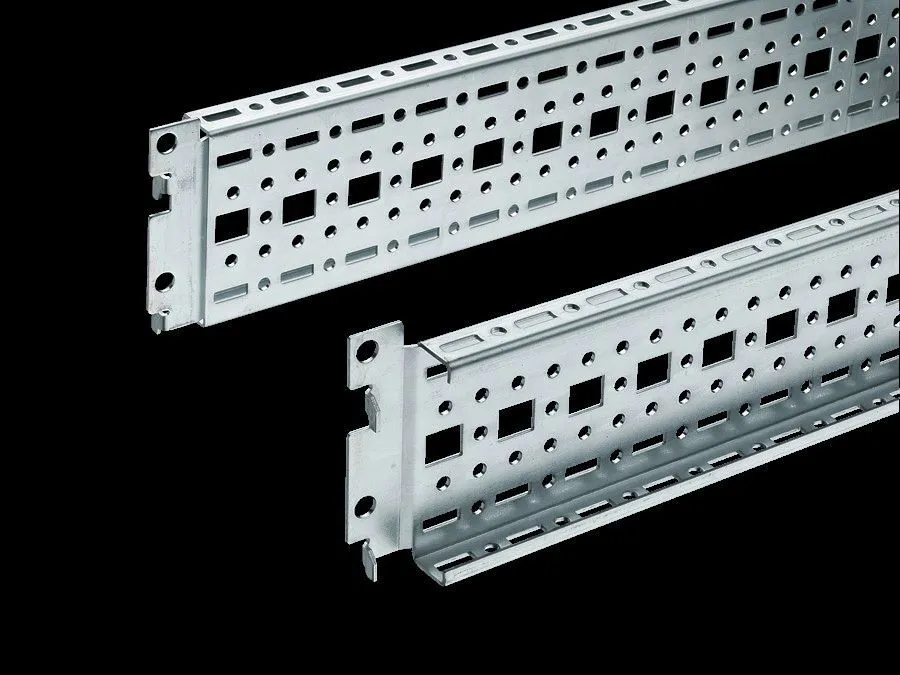

8612070 Rittal: TS punched section with mounting flange, 17 x 73 mm, for door width: 800 mm, L: 690 mm
Article number
TS 8612.070
Design
For mounting on doors
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
690 mm
To fit door width
800 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW
Packs of
4 pc(s).
Weight/pack
3.16 kg
Customs tariff number
73269098
EAN
4028177690318
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for door width: 800 mm, L: 690 mm
Feature: Mounting flange and door-mounted design enable quick, accurate alignment; Business impact: Reduces installation time and prevents misalignment, improving field productivity; Application: Ideal for door-ready VX SE and similar enclosures, minimizing rework. Feature: Material is sheet steel with a zinc-plated surface; Business impact: Enhances corrosion resistance and longevity in demanding environments; Application: Suitable for factory floors and outdoor-adjacent cabinets where moisture exposure occurs. Feature: Length of 690 mm and fit for 800 mm doors; Business impact: Ensures compatible integration with common enclosure sizes, reducing custom fabrication; Application: Standardized fitment for VX SE, TP, PC, IW series. Feature: Packs of four with weight per pack 3.16 kg; Business impact: Simplifies inventory planning and shipping logistics; Application: Efficient stocking for maintenance teams and distributors. Feature: Installation options include mounting on vertical TS and inner mounting level with height-offset all-round; Business impact: Provides flexible alignment and easier retrofits; Application: Works with VX SE enclosure sections and supports precise mounting with the required internal rail for TP installations.
Get a Quick Quote for a Rittal 8612070
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612070?
Enquire Now
FAQs
The TS 8612.070 is designed for door-mounted installation and fits VX SE as well as TP, PC, and IW enclosure families. It uses a mounting flange and 17 x 73 mm punched section that locates into door punchings and is secured with assembly screws. For TP installations, an internal mounting rail is required to achieve proper alignment and rigidity.
Key specs include a 690 mm length, 800 mm door width fit, sheet steel material with a zinc-plated surface, and packaging of four pieces per pack. Each pack weighs 3.16 kg. The product is described as suitable for universal skeleton structures or partial assembly and is intended for door-mounted mounting on enclosure doors.
Yes. The product description states it is for universal skeleton structures or partial assembly, allowing it to be located into door punchings and secured. This makes it a versatile accessory for a range of VX SE, TP, PC, and IW enclosures where modular mounting and quick assembly are priorities.
When installing in TP enclosures, the internal mounting rail is required to support proper mounting. The rail enables height-offset alignment all-round on the vertical TS section, ensuring secure, repeatable installation. Confirm door width compatibility (800 mm) and use the supplied assembly screws for proper torque and fixation.
Official downloads include a PDF page and multiple language technical details (CS, DA, DE, EN, ES, FI, FR, HU, IT, NL, NO, PL, RU, SV, TR, ZH). Access the downloads to view EN specifications, mounting instructions, dimensions, and compliance notes, ensuring you have the latest dimensional data and installation guidance.
