Rittal TS 8612.080 Punched Section - Zinc-plated
Part Number: 8612080
Quick Summary
Rittal TS 8612.080 is a punched section for inner mounting levels used in VX SE enclosures. It simplifies universal skeleton structures by locating into punchings and securing with assembly screws, reducing field fabrication time. While ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications are listed, explicit CE, SIL or IP ratings aren’t shown here; the data emphasizes compatibility, installation flexibility, and a zinc-plated sheet steel build for durable performance. This part supports scalable cabinet configurations and aligns with common industry standards, delivering reliable modularity, easy retrofits, and improved maintenance workflows for panel builders and system integrators.
Product Information
Extended Description

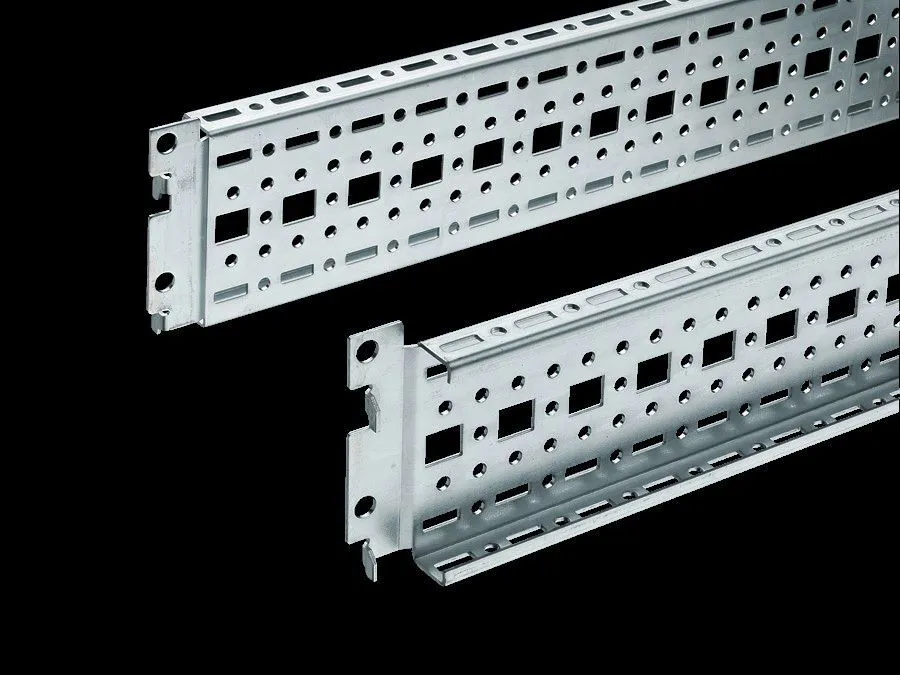

8612080 Rittal: TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 800 mm, for door width: 900 mm, L: 790 mm
Article number
TS 8612.080
Design
For the inner mounting level and for mounting on doors
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
790 mm
To fit door width
900 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW | TX CableNet | To fit width/depth: 800 mm
Packs of
4 pc(s).
Weight/pack
3.584 kg
PCF per pack (cradle-to-gate)
13.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177212107
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 800 mm, for door width: 900 mm, L: 790 mm
Feature → Business Impact → Application: The TS 8612.080 is a zinc-plated sheet steel punched section with a mounting flange that supports inner mounting levels, enabling quick, secure mounting without custom fabrication. Benefit: Faster assembly, reduced labor, and predictable panel spacing for VX SE enclosures; Application: Install in VX SE or similar enclosures requiring 17 x 73 mm rails at the 800 mm W/D level and 900 mm door width. Feature → Business Impact → Application: Length of 790 mm and compatibility with 800 mm width/depth ensures consistent fit within standard cabinet footprints. Benefit: Minimizes misalignment, supports standardized layouts, and streamlines procurement. Application: Use in enclosures—VX SE, TP, PC, IW, TX CableNet—for modular expansion and partial assemblies. Feature → Business Impact → Application: Includes assembly screws and a zinc-plated finish for corrosion resistance. Benefit: Fewer fastener calibers to stock, longer service life in typical industrial environments. Application: Field installations with frequent door access and environmental exposure. Feature → Business Impact → Application: Assembly instruction notes the need for an internal mounting rail when installing in TP. Benefit: Reduces installation errors, ensures proper mounting on the inner level, and lowers service calls. Application: TP-based projects requiring precise rail positioning. Feature → Business Impact → Application: Pack of four with a documented weight per pack (3.584 kg) and PCF data (13.7 kg CO2 eq). Benefit: Predictable logistics, simplified freight planning, and transparent environmental impact. Application: Procurement for multi-cabinet deployments and green manufacturing initiatives. Feature → Business Impact → Application: To fit door width 900 mm and W/D 800 mm with mounting on vertical TS, VX SE enclosure sections. Benefit: Broad compatibility with a wide family of enclosures and reduced part diversification. Application: Mixed cabinet builds using VX SE, TP, PC, IW, TX CableNet families.
