Rittal 8612.090 TS Punched Section - Zinc-plated
Part Number: 8612090
Quick Summary
TS punched section with mounting flange from Rittal enables quick, secure mounting for door-width enclosures. Many installers struggle with misalignment and slipping rails that slow installs and risk door seals. Note: CE, SIL or IP ratings are not listed in the provided data; confirm with Rittal for exact certifications relevant to your installation. This solution supports efficient, scalable enclosure integration across VX SE, TP, PC and IW families, reducing part variety and easing procurement. The zinc-plated sheet steel construction mitigates corrosion over time, and assembly screws are included to speed on-site assembly while maintaining a robust, durable fit.
Product Information
Extended Description

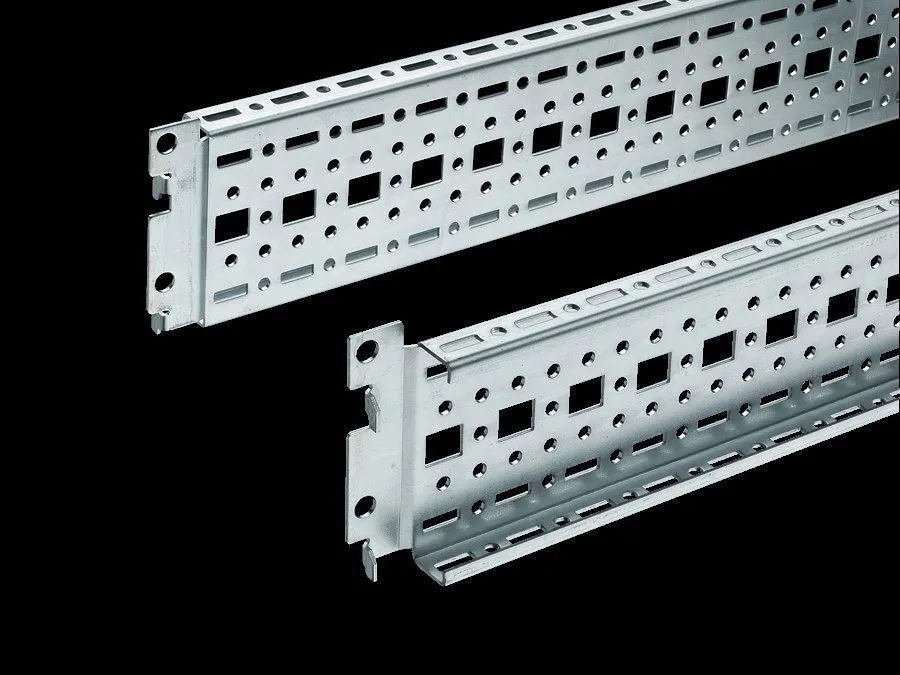

8612090 Rittal: TS punched section with mounting flange, 17 x 73 mm, for door width: 1000 mm, L: 890 mm
Article number
TS 8612.090
Design
For mounting on doors
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
890 mm
To fit door width
1,000 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW
Packs of
4 pc(s).
Weight/pack
4.1 kg
Customs tariff number
73269098
EAN
4028177232648
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for door width: 1000 mm, L: 890 mm
Feature: TS punched section with mounting flange provides precise anchor points directly into door-mounted enclosures. Business Impact: This minimizes field adjustments, reduces rework, and improves panel rigidity during vibration-prone operation. Application: Suitable for universal skeleton structures or partial assemblies, and it accepts the standard punchings within Rittal enclosures. Feature: Zinc-plated sheet steel and included assembly screws increase durability and ease of maintenance. Business Impact: The protective finish resists corrosion in harsh environments, extending service life and lowering lifecycle costs. Application: Compatible with VX SE, TP, PC, and IW enclosure types and the 1,000 mm door width requirement simplifies spec matching. Feature: 890 mm length tuned to 1,000 mm doors, with 17 x 73 mm cross-section. Business Impact: Streamlines stock planning and reduces variance in installation components. Application: Enables quick rail installation on vertical TS sections and inner mounting levels with height-offset options. Feature: Includes packs of four with a total weight of 4.1 kg per pack. Business Impact: Facilitates bulk procurement and reduces handling frequency on site. Application: Suits project runs requiring multiple sections without compromising consistency. Objection handling: The TP installation guidance requires an internal mounting rail; this solution integrates with that requirement to ensure reliable alignment and secure mounting across different enclosure families.
