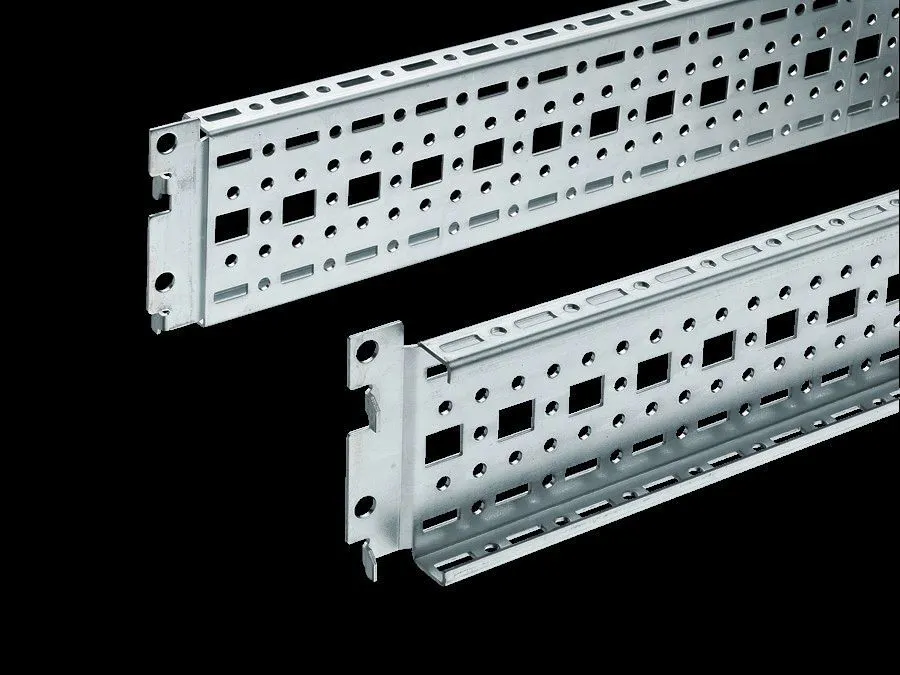

Rittal 8612100 TS punched section - Zinc-plated
Part Number: 8612100
Quick Summary
Rittal 8612100 TS punched section is a mounting rail designed for universal skeleton structures in 1,000 mm wide enclosures. Engineers often face misaligned punchings and varied mounting standards that slow installs and complicate field changes. This data lists ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications, and uses a durable zinc-plated sheet steel finish, though CE, SIL, and IP ratings are not specified here. By standardizing the outer mounting level and simplifying assembly, the part reduces rework and accelerates deployment. The result is a repeatable, long-lasting mounting solution that supports quick reconfiguration and lowers total cost of ownership for modern enclosure projects.
Product Information
Extended Description
8612100 Rittal: TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 1000 mm, L: 940 mm
Article number
TS 8612.100
Design
For the outer mounting level
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
940 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW | TX CableNet | To fit width/depth: 1,000 mm
Packs of
4 pc(s).
Weight/pack
4.3 kg
PCF per pack (cradle-to-gate)
16.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177212114
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 1000 mm, L: 940 mm
Zinc-plated sheet steel provides long-lasting corrosion resistance, lowering maintenance cycles and enhancing service life in harsh environments. The 17 x 73 mm punched profile with a dedicated mounting flange creates a stable outer mounting level that translates into reliable, repeatable installations across VX SE, TP, PC, IW and TX CableNet families. Assembly screws are included, reducing the need for additional hardware sourcing and enabling faster on-site assembly. Pack details—four pieces per pack, 4.3 kg per pack—support easy inventory management and predictable logistics. The component fits 1,000 mm width/depth enclosures, enabling cross-family reuse and modular configurations that minimize custom fabrication. Compatibility with inner mounting levels and height-offset options improve alignment accuracy and reduce commissioning time. Environmental metrics—PCF 16.4 kg CO2 eq per pack (Cat B)—support sustainability reporting and lifecycle planning.
Get a Quick Quote for a Rittal 8612100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612100?
Enquire Now
FAQs
The 8612100 TS punched section is designed for VX SE, TP, PC, IW, and TX CableNet enclosure families and supports the outer mounting level on 1,000 mm wide formats. It ships with assembly screws for immediate use and fits the 17 x 73 mm punched profile. This enables cross-family reuse and minimizes the need for custom rails, speeding up projects.
Assembly screws included with the TS punched section eliminate separate hardware sourcing and simplify on-site assembly. The 17 x 73 mm punched profile and dedicated mounting flange provide a stable outer mounting level, improving alignment accuracy across different enclosure bodies and reducing rework during commissioning. This translates into measurable time savings and more consistent build quality.
Yes. The TS 8612100 is intended for universal skeleton structures and partial assembly, allowing quick locating into punchings and securing. Its mounting flange supports outer mounting on 1,000 mm wide enclosures, making it versatile for skeleton-frame configurations and modular racks without custom modifications.
CE, SIL, and IP ratings are not specified in the provided data. The item lists ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications, and a zinc-plated steel construction with standard assembly screws. For regulatory compliance in your region, verify with Rittal through official channels or product datasheets.
PCF per pack is 16.4 kg CO2 eq (Cat B), and each pack weighs 4.3 kg, with four pieces per pack. This data supports sustainability reporting and lifecycle assessment by quantifying cradle-to-gate emissions. Coupled with the durable zinc-plated finish and standardized mounting, the solution can reduce waste, optimize inventory, and lower total cost of ownership over multiple enclosure programs.
