Rittal 8612120 TS punched section - Zinc-plated
Part Number: 8612120
Quick Summary
Rittal 8612120 TS punched section is a quick mounting rail for universal skeleton structures in enclosure systems, measuring 17 x 73 mm with a 1,200 mm W/D and 1,140 mm L. It streamlines the configuration of outer mounting levels and partial assemblies, reducing install time and the risk of misalignment. While projects often stall on rail alignment and fixture fit, this component locates into standard punchings and secures with included screws. Certification notes: SIL, CE, and IP ratings are not specified in the provided data; verify with your regulatory team before use. Designed to fit VX SE, TP, PC, IW enclosure types and to cover 1,200 mm width/depth, it offers a consistent mechanical interface for scalable builds. Crafted from zinc-plated sheet steel, it balances durability with cost-effective maintenance in harsh industrial environments.
Product Information
Extended Description

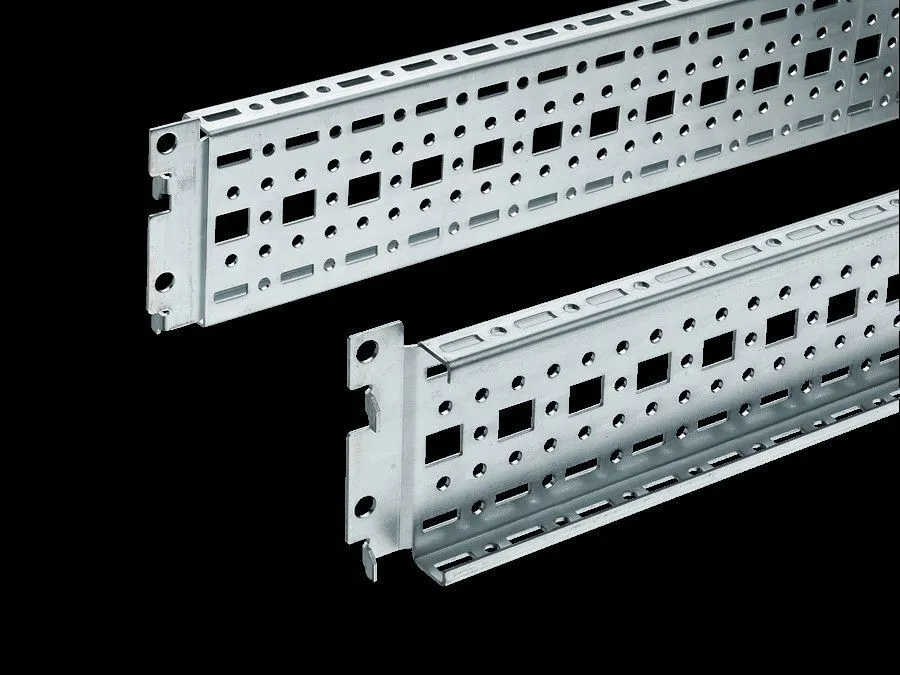

8612120 Rittal: TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 1200 mm, L: 1140 mm
Article number
TS 8612.120
Design
For the outer mounting level
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
1,140 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW | To fit width/depth: 1,200 mm
Packs of
4 pc(s).
Weight/pack
5.132 kg
Customs tariff number
73269098
EAN
4028177212121
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 1200 mm, L: 1140 mm
Feature: Mounting flange interface and outer mounting level support. Business Impact: Speeds up installation and reduces misalignment across projects, improving first-pass assembly efficiency. Application: Ideal for VX SE and VX-based skeleton structures where quick, repeatable mounting is required. Long-tail keywords involved: TS punched section, outer mounting level, enclosure skeleton, VX SE compatibility. Feature: Zinc-plated sheet steel construction. Business Impact: Provides corrosion resistance for harsh environments, extending component life and lowering maintenance costs. Application: Suitable for factories, control rooms, and outdoor-rated enclosures. Long-tail keywords involved: zinc-plated material, sheet steel hardware, durable enclosure hardware. Feature: Supplied with assembly screws in packs of four. Business Impact: Simplifies procurement and on-site readiness, reducing packing waste and logistics time. Application: Streamlines project kickoff for multiple enclosures with consistent parts. Long-tail keywords involved: packs of 4, assembly screws included, procurement efficiency. Feature: Compatibility with 1,200 mm width/depth and inner mounting level height-offset options. Business Impact: Enables flexible internal layouts and scalable configurations for evolving control needs. Application: Works with vertical TS, VX SE enclosure sections and inner mounting level adjustments. Long-tail keywords involved: internal mounting rail, height-offset, enclosure width/depth 1,200 mm. Objection mitigation: While explicit CE, SIL or IP ratings are not listed, the part follows standard industry practices for mechanical fitment in VX SE/TP/PC/IW families, and TP installations use the internal mounting rail as specified. These details support predictable performance and reuse across multiple projects.
