Rittal 8612130 Punched Section - Zinc-plated
Part Number: 8612130
Quick Summary
Rittal 8612130 Punched Section is used for universal skeleton structures or partial assembly in enclosure systems. For engineers and procurement teams, inconsistent mounting points across different enclosures can drive longer setup times and higher error rates. It aligns with ETIM 7.0 EC002625 and ECLASS 8.0 27189234, while the zinc-plated finish delivers dependable corrosion resistance in industrial environments. With assembly screws included and a compact 240 mm length, the part reduces sourcing steps, simplifies stock management, and speeds installations across VX SE, TP, PC, and IW system layouts. This translates into fewer project delays and more predictable delivery timelines across mechanical, electrical, and systems integrator teams.
Product Information
Extended Description

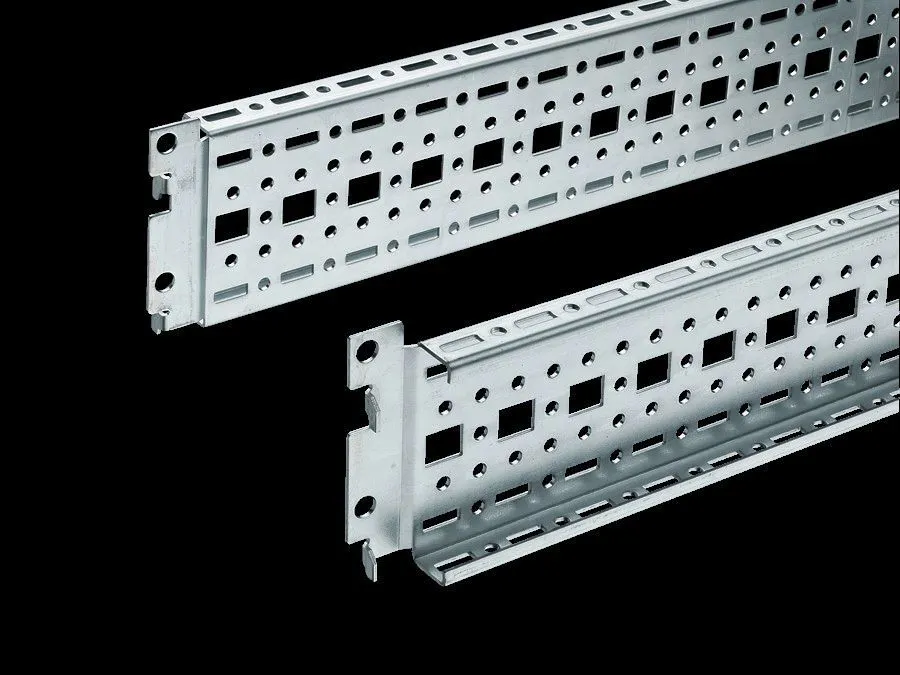

8612130 Rittal: TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 300 mm, L: 240 mm
Article number
TS 8612.130
Design
For the outer mounting level
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
240 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW | To fit width/depth: 300 mm
Packs of
4 pc(s).
Weight/pack
1.112 kg
PCF/PU (cradle-to-gate)
4.2 kg CO2 eq (Cat B)
Note on the PCF class
Category B: PCF value (cradle-to-gate) approximated based on product weight and self-declared
Customs tariff number
73269098
EAN
4028177500327
ETIM 7.0
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 300 mm, L: 240 mm
Feature: Outer mounting level compatibility with VX SE, TP, PC, IW enclosures enables universal skeleton structures and partial assembly. Business impact: Standardized mounting points reduce the need for custom brackets and accelerate component placement. Application: Works across varied enclosure configurations, shrinking lead times. Feature: Zinc-plated sheet steel provides corrosion resistance in harsh industrial environments. Business impact: Longer service life and reduced maintenance costs over the life of the enclosure. Application: Suitable for factory floors, outdoor cabinets, and other challenging environments where mounting hardware is exposed to chemicals or humidity. Feature: Supplied with assembly screws. Business impact: Streamlines on-site installation and minimizes the risk of missing hardware, saving labor time. Application: Ideal for field upgrades and parts replenishment in ongoing projects. Feature: Pack configuration and environmental data. Business impact: Facilitates project planning with predictable packaging (4 pcs per pack) and carbon footprint awareness (PCF 4.2 kg CO2 eq, Cat B). Application: Supports green procurement and lifecycle assessments for large-scale deployments. Feature: Clear installation guidance and fitment details. Business impact: Reduces installation errors and accelerates commissioning through defined mounting options (inner/outer levels, height-offsets) and enclosure compatibility. Application: Improves maintenance readiness and upgrade paths across VX SE, TP, PC, and IW platforms.
Get a Quick Quote for a Rittal 8612130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612130?
Enquire Now
FAQs
The TS 8612.130 is designed for outer mounting level configurations and fits VX SE, TP, PC, and IW enclosure families. It supports the TS punching system with a 300 mm width/depth requirement and ships with assembly screws for quick, standardized installs. This compatibility minimizes the need for custom brackets and reduces project lead times.
Key specs include a 17 x 73 mm punched section, 240 mm length, zinc-plated sheet steel, weight per pack 1.112 kg, packs of four, and assembly screws included. It fits enclosure widths/depths of 300 mm and is intended for outer mounting level applications on VX SE, TP, PC, and IW series.
Using this part standardizes mounting points, reduces the need for separate brackets, and simplifies stocking with four-piece packs. The included screws and clear installation guidance cut on-site labor and mistake rates, accelerating commissioning across multiple enclosure models and improving overall project predictability.
The product aligns with ETIM 7.0 EC002625 and ECLASS 8.0 27189234 classifications. It features a zinc-plated finish for corrosion resistance and a cradle-to-gate PCF value of 4.2 kg CO2 eq (Cat B), supporting sustainability reporting in procurement decisions.
Installation requires the rail for internal mounting when using in TP configurations, and mounting on the vertical TS VX SE sections may involve height-offset on the inner mounting level. Ensure enclosure width/depth is 300 mm and use the supplied assembly screws for secure attachment.
