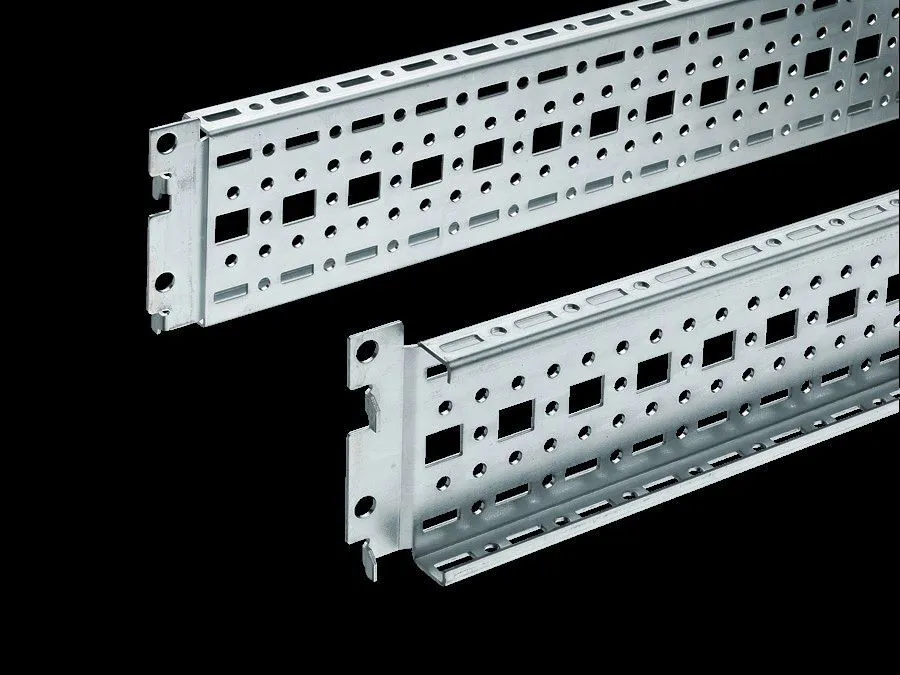

Rittal TS 8612.140 Punched Section - Zinc-plated
Part Number: 8612140
Quick Summary
The TS 8612.140 punched section with mounting flange is a versatile outer mounting level solution for 400 mm wide enclosures. It simplifies skeleton structure assembly by allowing quick locate-and-secure mounting into standard punchings with included assembly screws. This design addresses common misalignment and setup delays that slow projects, especially during retrofit or modular builds. While exact CE, SIL, or IP certifications aren’t listed in the provided data, the part is classified under ETIM EC002625 and ECLASS 27189234, promoting consistent procurement and cross-compatibility. For value-driven decisions, this component reduces installation time, enables reliable mounting across multiple enclosure families, and leverages a zinc-plated steel construction for long-term reliability.
Product Information
Extended Description
8612140 Rittal: TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 400 mm, L: 340 mm
Article number
TS 8612.140
Design
For the outer mounting level
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
340 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW | To fit width/depth: 400 mm
Packs of
4 pc(s).
Weight/pack
1.588 kg
PCF per pack (cradle-to-gate)
6.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177212138
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 400 mm, L: 340 mm
Feature: Outer mounting level with a mounting flange and 17 x 73 mm punch section. Business Impact: Enables fast, repeatable alignment for universal skeleton structures, reducing commissioning time. Application: Best suited for VX SE, TP, PC, IW enclosures where standardized mounting is required. The TS 8612.140 provides a consistent footprint that streamlines design-in and field assembly. Feature: Material and finish are sheet steel with zinc-plated surface. Business Impact: Improves corrosion resistance and lifecycle cost, extending enclosure integrity in demanding environments. Application: Ideal for industrial settings with exposure to humidity or dust where long-term rigidity matters. Feature: Packaged in sets of four with assembly screws included; weight per pack is 1.588 kg. Business Impact: Simplifies logistics and inventory planning while ensuring immediate readiness on site. Application: Facilitates quick stocking for field teams and maintenance crews. Feature: Installation options include height-offset on the inner mounting level and compatibility with vertical TS and VX SE enclosure sections. Business Impact: Increases installation flexibility, enabling precise alignment without custom fabrication. Application: Useful for modular installations and retrofits across diverse enclosure families. Feature: To fit 400 mm width/depth; supports foreseen enclosure types VX SE, TP, PC, IW. Business Impact: Reduces the need for multiple part variants, cutting procurement complexity and costs. Application: Syncs with standard 400 mm enclosures for scalable asset management. Feature: PCF per pack is 6.1 kg CO2 eq (Cat B). Business Impact: Supports sustainability goals with a quantified environmental footprint. Application: Aligns with green procurement strategies and lifecycle thinking.
Get a Quick Quote for a Rittal 8612140
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612140?
Enquire Now
FAQs
TS 8612.140 is designed for outer mounting levels on VX SE, TP, PC, and IW enclosure families with a 400 mm width/depth. It uses a 17 x 73 mm punched section and mounting flange to simplify alignment, reduce field adjustments, and ensure a consistent mounting footprint across these enclosure types.
Installation in TP enclosures requires the rail for internal mounting when installing in the TP configuration. The kit includes assembly screws and is intended for easy locate-and-secure mounting into punchings, with height-offset options on the inner mounting level for precise alignment.
The part is made from sheet steel with a zinc-plated surface finish for corrosion resistance. Each pack contains four pieces and weighs 1.588 kg per pack. The length is 340 mm, and the mounting flange accommodates outer mounting at 400 mm W/D.
Yes. The PCF per pack is 6.1 kg CO2 eq (Cat B). This value helps support cradle-to-gate environmental accounting and product-level sustainability reporting without impacting installation performance.
Order packs of four, with assembly screws included. The product is listed under the customs tariff 73269098 and has the EAN 4028177212138. It fits 400 mm width/depth enclosures and aligns with ETIM EC002625 and ECLASS 27189234 classifications for straightforward procurement and cross-system compatibility.
