Rittal TS 8612.160 Punched Section - Outer mounting level
Part Number: 8612160
Quick Summary
Rittal TS 8612.160 punched section is a modular mounting component for universal enclosure skeletons. Engineers often struggle with quick, secure mounting alignment and corrosion protection during panel builds. This part aligns with industry classifications ETIM EC002625 and ECLASS 27189234, ensuring compatibility across catalogs and procurement systems. For procurement teams, it delivers reliable sourcing, simple installation with assembly screws included, and scalable performance as enclosure projects grow, while offering durable zinc-plated sheet steel for long-lasting service. It also supports 600 mm width/depth enclosures and 540 mm length, helping standardize parts across VX SE, TP, PC, and IW families, reducing stocking complexity and total cost of ownership.
Product Information
Extended Description

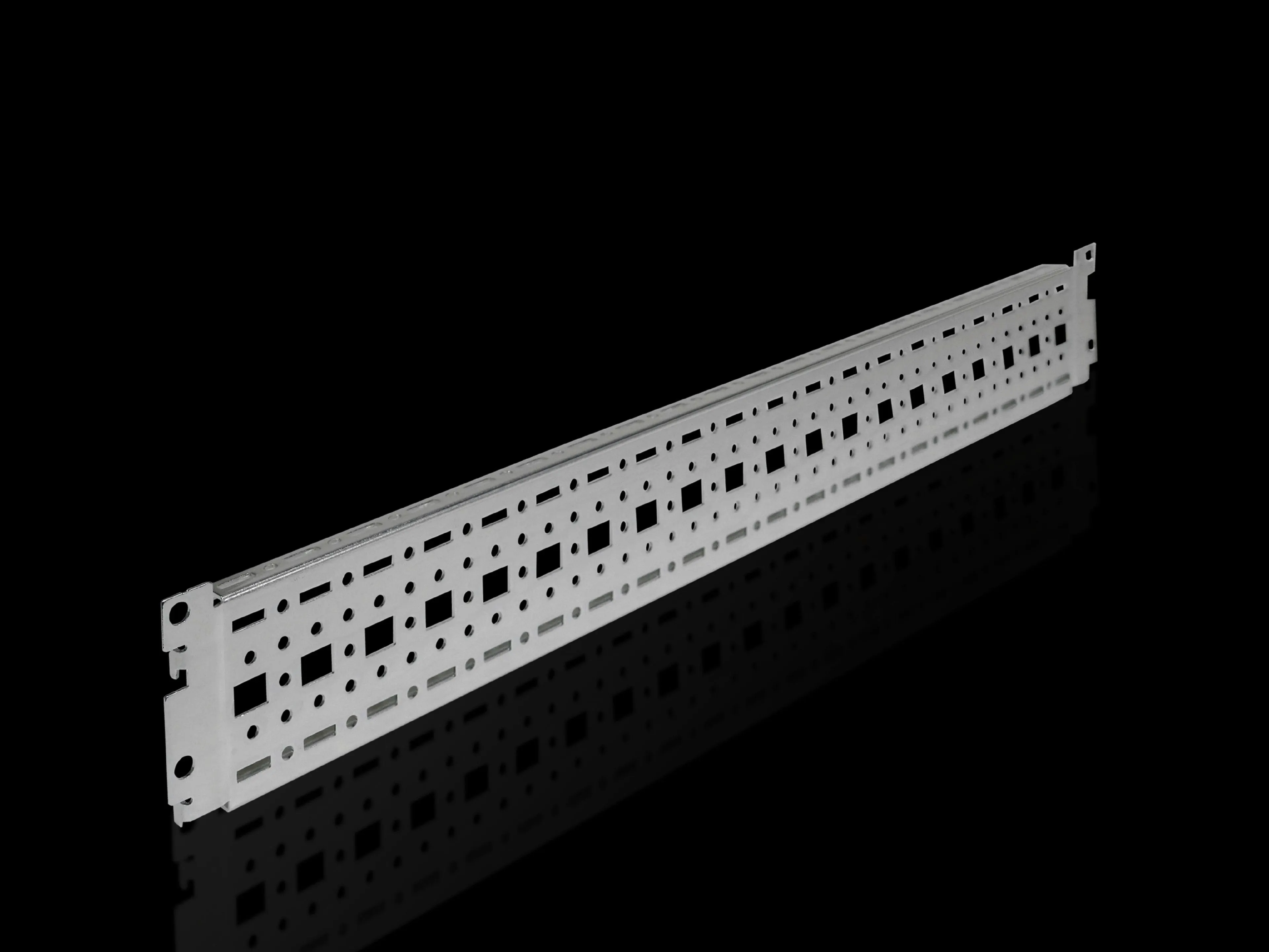

8612160 Rittal: TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 600 mm, L: 540 mm
Article number
TS 8612.160
Design
For the outer mounting level
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
540 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW | To fit width/depth: 600 mm
Packs of
4 pc(s).
Weight/pack
2.452 kg
PCF per pack (cradle-to-gate)
9.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177212152
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 600 mm, L: 540 mm
Feature: Punched section with mounting flange, 17 x 73 mm, for outer mounting level. Business Impact: Enables quick, precise positioning in enclosure punchings and secure fastening, reducing on-site adjustment time. Application: Used across VX SE, TP, PC, IW enclosures with a 600 mm width/depth footprint, streamlining project setup and standardization. This improves installation reliability and speeds up commissioning. Long-tail keywords addressed include outer mounting level, enclosure skeleton structures, and modular mounting components.
Get a Quick Quote for a Rittal 8612160
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612160?
Enquire Now
FAQs
The TS 8612.160 is designed for VX SE, TP, PC, and IW enclosure families and fits the outer mounting level with a 600 mm width/depth. It uses a 17 x 73 mm cross-section and a 540 mm length, simplifying cross-family compatibility and inventory. For TP installations, an internal mounting rail may be required according to installation guidance.
TS 8612.160 facilitates quick locating into punchings and secure fastening, with assembly screws included in each pack. The four-piece pack size streamlines bulk purchasing and reduces BOM steps, while zinc-plated sheet steel provides durable protection, lowering maintenance and rework times during panel builds.
The part is made from sheet steel with a zinc-plated finish for corrosion resistance. It features a 17 x 73 mm cross-section and a 540 mm length, designed for outer mounting level applications in standard enclosure systems and to fit 600 mm width/depth footprints.
Each pack contains four pieces with a total weight of 2.452 kg and a cradle-to-gate PCF of 9.3 kg CO2 eq (Category B). This data supports responsible procurement decisions and greener design considerations within enclosure projects.
Follow the installation guidance for vertical TS enclosure sections: use inner mounting level height-offset all-round where applicable, and ensure rails are installed for internal mounting in TP configurations. The parts are intended to fit VX SE, TP, PC, IW enclosures at a 600 mm width/depth, with included assembly screws to streamline setup.
