Rittal 8612180 TS punched section - Zinc-plated
Part Number: 8612180
Quick Summary
Rittal 8612180 TS punched section enables universal skeleton structures in control panels and outer mounting levels. Installing rails and securing components can be time-consuming when alignment is inconsistent, leading to rework and delays. It aligns with ETIM EC002625 and ECLASS 27189234 classifications, and the zinc-plated sheet steel finish provides durable corrosion resistance for harsh industrial environments. With 800 mm outer mounting compatibility and a 740 mm length, plus assembly screws included, it supports fast, repeatable installs for VX SE, TP, PC, IW and TX CableNet systems while simplifying procurement and maintenance planning.
Product Information
Extended Description

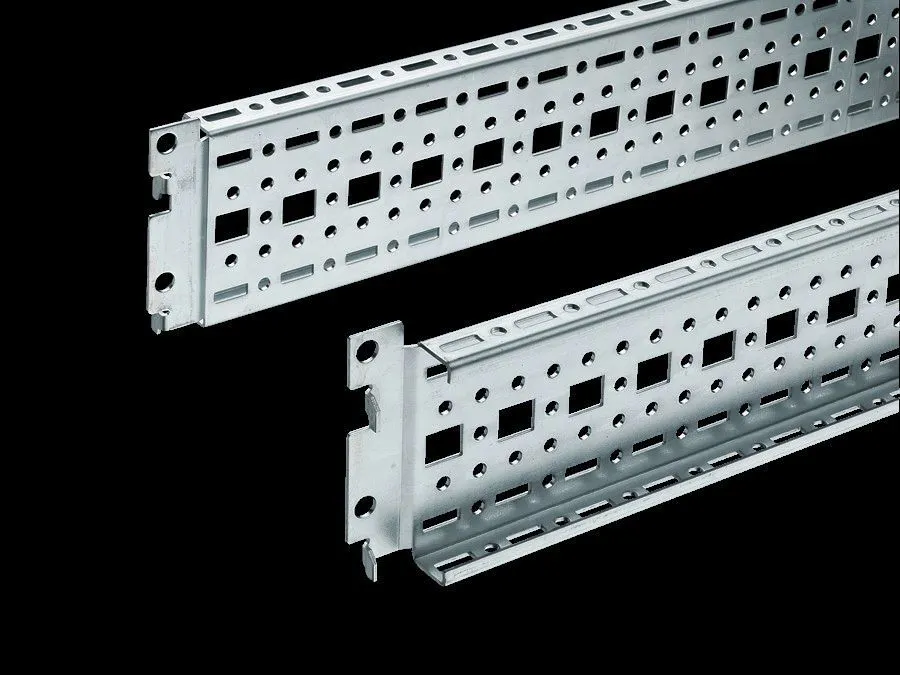

8612180 Rittal: TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 800 mm, L: 740 mm
Article number
TS 8612.180
Design
For the outer mounting level
Product description
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
740 mm
Installation options
On the vertical TS, VX SE enclosure section: On the inner mounting level, height-offset all-round
Assembly instruction
The rail for internal mounting is required when installing in TP
To fit
Enclosure type: VX SE | TP | PC | IW | TX CableNet | To fit width/depth: 800 mm
Packs of
4 pc(s).
Weight/pack
3.372 kg
PCF per pack (cradle-to-gate)
12.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177212169
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 800 mm, L: 740 mm
Feature → Business Impact → Application. The TS punched section with mounting flange delivers a standardized 17 x 73 mm cross-section that aligns securely with factory punchings, reducing misalignment risk and enabling faster panel assembly across multiple enclosure families. This structural consistency translates to measurable time savings during installation and easier future upgrades in production lines and data centers. Application: VX SE and TP enclosures, PC and IW systems, TX CableNet configurations. The zinc-plated sheet steel finish offers corrosion resistance in demanding environments, extending service life and reducing maintenance cycles. Application: industrial environments with exposure to humidity or pollutants. Supplied with assembly screws, which reduces stocking complexity and on-site sourcing—supporting lean procurement and faster project completion. Application: assembly teams and system integrators. Each pack contains four pieces (weight 3.372 kg per pack), enabling efficient logistics and predictable replenishment for larger installations. Application: warehouse and job-site planning. Installation options include inner mounting height-offset adjustments on the vertical TS and VX SE sections, with the rail for internal mounting required when installing in TP, providing flexible configuration. Application: scalable enclosure builds. The product fits 800 mm width/depth enclosures and is compatible with VX SE, TP, PC, IW and TX CableNet families, ensuring broad interoperability. Application: system integrators seeking a universal mounting solution. Additional data such as ETIM EC002625, ECLASS 27189234, and 73269098 tariff classification simplifies procurement, cataloging, and compliance processes. Application: data-driven purchasing and regulatory alignment.
