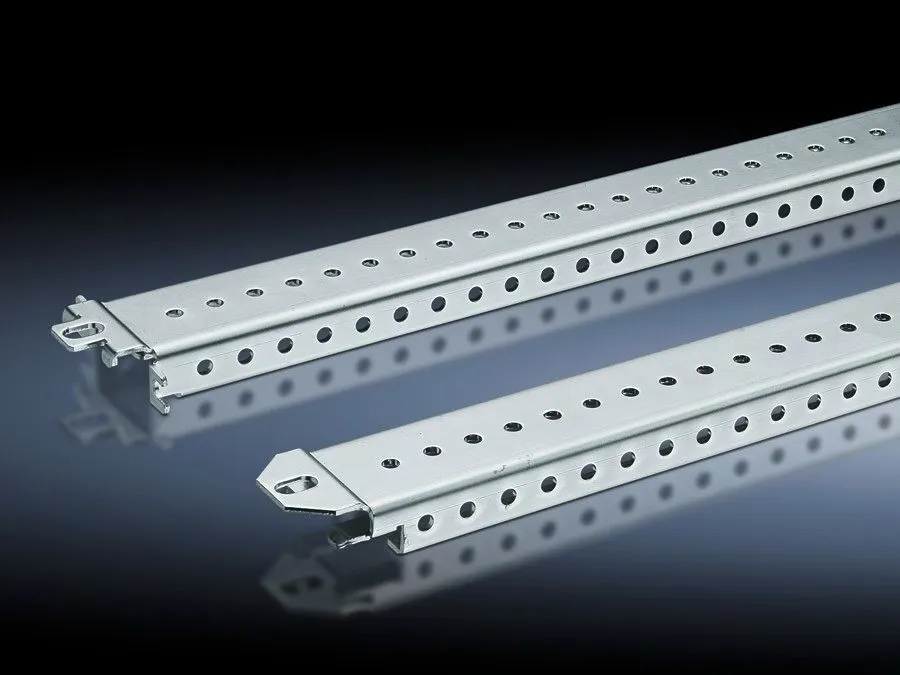

Rittal TS 8612.240 Punched Rail - 18x38 mm, 400 mm W/D
Part Number: 8612240
Quick Summary
Rittal TS 8612.240 Punched Rail enables quick mounting inside TS enclosures for compact control panels. Installing reliably in tight spaces has long been a pain point for panel builders and maintenance teams, often requiring multiple parts and adjustment time. There are no explicit CE, SIL, or IP certifications listed in the provided data; verify with official datasheets for compliance before deployment. This rail supports vertical TS sections and outer VX SE mounting levels, and it aligns with base configuration rails for CM, helping standardize installations across projects. By using a consistent 18 x 38 mm profile and a 400 mm reach, you can simplify inventory, reduce assembly errors, and improve serviceability across industrial control panels.
Product Information
Extended Description
8612240 Rittal: TS Punched rail 18 x 38 mm, for W/D: 400 mm
Article number
TS 8612.240
Product description
Simply locate and secure with a screw. The location system makes assembly and dismantling easier. It only needs to be secured on one side, but may be secured on both sides if required.
Material
Sheet steel
Supply includes
Assembly screws
Installation options
On the vertical TS, VX SE enclosure section on the outer mounting level
Note
In enclosures with a mounting plate, 2 punched rails are already included with the supply.
To fit
To fit width/depth: 400 mm
Packs of
4 pc(s).
Weight/pack
1.656 kg
Customs tariff number
73269098
EAN
4028177213081
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Punched rail 18 x 38 mm, for W/D: 400 mm
Feature: The TS 8612.240 uses a punched-rail profile of 18 × 38 mm, delivering consistent mounting geometry. Business impact: improved alignment, fewer adjustment steps, and faster installation, which reduces downtime and labor costs. Application: designed for W/D 400 mm TS enclosures and is suitable for vertical TS sections and outer VX SE mounting levels. Feature: Sheet steel construction provides robust mechanical support. Business impact: withstands typical industrial conditions, resisting deformation and maintaining structural integrity over time. Application: ideal for control panels subjected to routine reconfigurations. Feature: Supply includes assembly screws. Business impact: minimizes hardware sourcing and ensures fast, reliable securement. Application: ready-to-install on site without hunting for fixings; compatible with standard CM mounting plate configurations. Feature: Note that in enclosures with a mounting plate, 2 punched rails are already included. Business impact: reduces procurement complexity and total part count. Application: streamlines project planning for mounting plates and outer rail integrations. Feature: Packs of 4 rails per pack; Weight per pack 1.656 kg. Business impact: easier inventory management and predictable shipping. Application: simplifies stock control for multi-rack deployments and large-scale panel builds.
Get a Quick Quote for a Rittal 8612240
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612240?
Enquire Now
FAQs
Install by aligning the 18 × 38 mm punched-rail with the TS enclosure channels, secure with the included assembly screws, and set on a single side if desired. For mounting plate configurations, note that two rails may already be supplied. The rail supports vertical TS sections and outer VX SE mounting levels for flexible deployment.
Key specs include a 18 × 38 mm profile, sheet steel construction, and a 400 mm width/depth. Each pack contains four rails with a total weight of approximately 1.656 kg. Compatibility spans TS enclosure vertical and outer mounting levels, and it’s suitable for CM base configurations when used with the relevant mounting plate.
Yes. The installation options include mounting on the vertical TS and the VX SE enclosure’s outer mounting level, and it fits with CM base configurations. This enables consistent mounting across multiple enclosure types and simplifies design layouts for scalable control panels.
The provided data does not list CE, SIL, or IP certifications for this part. For regulatory compliance in your region, consult the official Rittal datasheet or contact the supplier to confirm certifications before deployment.
Expect reduced assembly time due to pre-sized 18 × 38 mm rails and included assembly screws, lower part variance with a standardized mounting interface, and easier reconfiguration or maintenance thanks to straightforward locate-and-secure fastening and the option to reuse rails across TS enclosure sections.
