Rittal TS 8612.250 Punched Rail - 500 mm W/D
Part Number: 8612250
Quick Summary
Rittal TS 8612.250 Punched Rail secures mounting rails in 500 mm wide TS enclosures for straightforward panel assembly. Engineers often struggle with alignment and retrofit downtime; this rail's location system makes attachment quick and predictable. ETIM EC002625 and ECLASS 27189234 data support seamless cataloging, while sheet-steel construction adds durable, time-tested strength. Compatible with vertical TS sections and VX SE outer-mount rails, it speeds installations and reduces field adjustments. With four pieces per pack and assembly screws included, you can outfit multiple enclosures from a single purchase, improving logistics and uptime. This aligns with European practice and standard data integration for procurement teams. In practice, installation on vertical TS sections or outer mounting levels requires precise alignment to avoid misfits and downtime during maintenance. Manufacturers and integrators rely on robust, predictable rails to speed commissioning and ensure long-term compatibility with TS enclosures.
Product Information
Extended Description

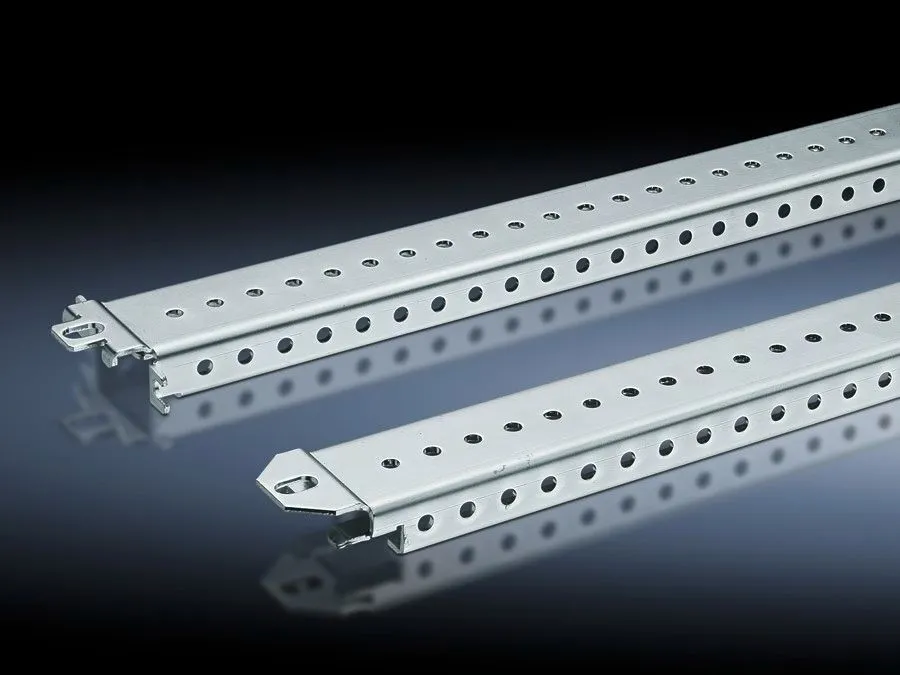

8612250 Rittal: TS Punched rail 18 x 38 mm, for W/D: 500 mm
Article number
TS 8612.250
Product description
Simply locate and secure with a screw. The location system makes assembly and dismantling easier. It only needs to be secured on one side, but may be secured on both sides if required.
Material
Sheet steel
Supply includes
Assembly screws
Installation options
On the vertical TS, VX SE enclosure section on the outer mounting level
Note
In enclosures with a mounting plate, 2 punched rails are already included with the supply.
To fit
To fit width/depth: 500 mm
Packs of
4 pc(s).
Weight/pack
2.164 kg
Customs tariff number
73269098
EAN
4028177213098
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Punched rail 18 x 38 mm, for W/D: 500 mm
Feature: Quick-location rail with a simple one-sided securing method. Business impact: Shortens enclosure install time and reduces alignment errors. Application: Suitable for vertical TS sections and outer mounting levels. Feature: Punched rail profile 18 x 38 mm with 500 mm W/D compatibility. Business impact: Enables a standardized mounting grid across 500 mm wide/deep enclosures, improving part interchangeability. Application: Ideal for TS enclosures requiring consistent mounting spacings. Feature: Pack contents four rails per pack with assembly screws; weight per pack 2.164 kg. Business impact: Simplifies on-site procurement and reduces trips to supplier, improving logistics and ensuring timely project completion. Application: Works across facilities with standard TS rails and multiple enclosures. Feature: Note that enclosures with mounting plates include two punched rails in the supply. Business impact: Improves compatibility and reduces ancillary purchases. Application: Mounting plate configurations across TS systems. Feature: Material is sheet steel. Business impact: Delivers durability and rigidity in harsh industrial environments, lowering maintenance costs. Application: Industrial cabinets, control panels, and 500 mm TS enclosures. Feature: Installation options include vertical TS sections and VX SE outer mounting level. Business impact: Provides flexible deployment across standard TS configurations, accelerating commissioning and retrofits. Application: New builds and retrofits in automation and electrical installations.
Get a Quick Quote for a Rittal 8612250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612250?
Enquire Now
FAQs
Yes. TS 8612.250 is designed for installation on vertical TS sections and VX SE enclosure sections with outer mounting levels. The supply includes four rails per pack and assembly screws, enabling rapid retrofit or new builds without unique adapters. Note that enclosures with mounting plates may include two punched rails already, further simplifying installation.
The rail has an 18 x 38 mm punched profile and is sized for a 500 mm width/depth (W/D). It is manufactured from sheet steel, offering robust mechanical strength suitable for industrial environments. Each pack contains four rails and screws for quick mounting, with a total pack weight of 2.164 kg.
Absolutely. TS 8612.250 is specifically described as TS Punched rail for W/D 500 mm, making it an ideal match for 500 mm wide and deep TS enclosures. It supports secure, repeatable mounting aligned to standard TS dimensions, accelerating installation and ensuring compatibility with related TS components.
Procurement data aligns with ETIM 9 EC002625 and ECLASS 8.0 27189234, which provide interoperable product classifications and technical attributes. The EAN 4028177213098 helps with traceability, and the customs tariff 73269098 is noted for import categorization. This makes cataloging, sourcing, and compliance straightforward for engineering teams.
The four-pack with assembly screws reduces site trips and sourcing steps, speeding commissioning and replacements. Quick one-sided mounting lowers install time and minimizes handling errors, while durable sheet steel resists wear in demanding environments. Overall, this rail helps shorten project timelines, reduce maintenance windows, and improve uptime for TS enclosure installations.
