Rittal TS 8612.280 TS Punched Rail - 800 mm W/D
Part Number: 8612280
Quick Summary
Rittal TS 8612.280 TS Punched Rail is a mounting rail for TS enclosures, enabling quick 800 mm W/D component install. Engineers often struggle with modularity and fast assembly in control cabinets; this rail supports simple one-side securing, or double-sided if needed. It aligns with ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications for consistent procurement, and carries the EAN 4028177213111 for traceability. This combination of robust sheet steel construction and a practical fastening system translates to fewer installation errors and faster changes in busy automation environments. In addition to TS mounting versatility, you’ll find compatibility with vertical TS sections and outer mounting levels, with 4-pack efficiency for professional integration.
Product Information
Extended Description

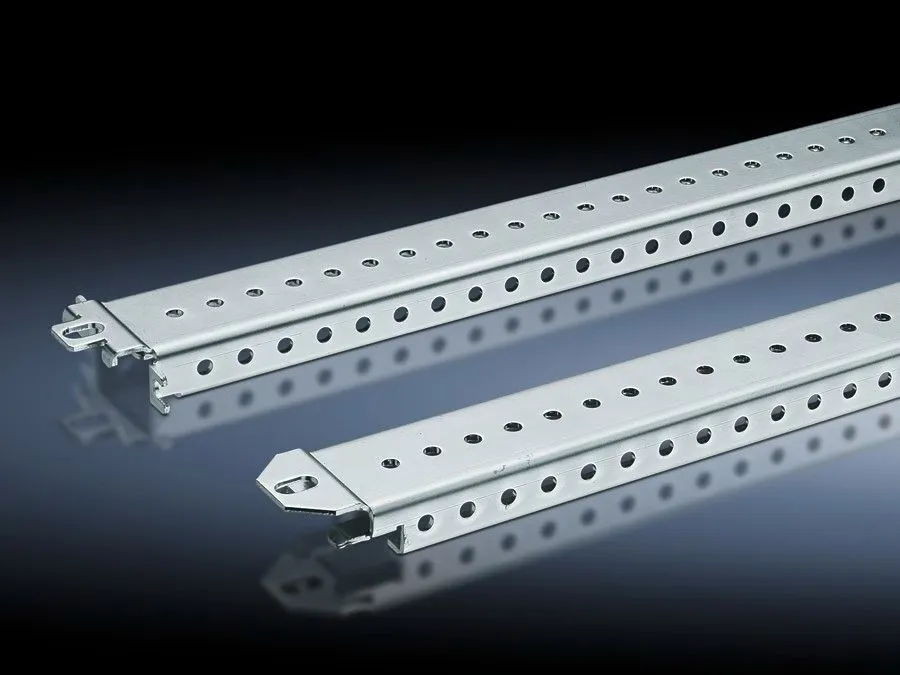

8612280 Rittal: TS Punched rail 18 x 38 mm, for W/D: 800 mm
Article number
TS 8612.280
Product description
Simply locate and secure with a screw. The location system makes assembly and dismantling easier. It only needs to be secured on one side, but may be secured on both sides if required.
Material
Sheet steel
Supply includes
Assembly screws
Installation options
On the vertical TS, VX SE enclosure section on the outer mounting level
Note
In enclosures with a mounting plate, 2 punched rails are already included with the supply.
To fit
To fit width/depth: 800 mm
Packs of
4 pc(s).
Weight/pack
3.696 kg
Customs tariff number
73269098
EAN
4028177213111
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Punched rail 18 x 38 mm, for W/D: 800 mm
Feature → Business Impact → Application: TS 8612.280 is a punched rail with an 18 x 38 mm cross-section, designed for W/D 800 mm enclosures; the standardized grid reduces layout time and simplifies future upgrades in automation cabinets. Benefit: faster, repeatable assembly lowers labor costs and minimizes drift when reorganizing wiring; Application: ideal for control panels where space is at a premium and modularity is essential. Feature → Business Impact → Application: The location system allows locating and securing with a single screw, with option for dual-sided mounting; Benefit: easier dismantling and quicker maintenance, reducing downtime during routine service. Application: retrofit projects and console updates in TS and VX SE enclosure sections. Feature → Business Impact → Application: Supplied with assembly screws and a note that two rails may be included in mounting-plate setups; Benefit: reduces BOM complexity and ensures immediate install readiness; Application: new builds and replacement rails in existing enclosures. Feature → Business Impact → Application: Material is sheet steel, offering durability and cost efficiency; Benefit: long service life in harsh industrial environments while keeping overall weight manageable; Application: cabinet interiors subject to vibration and handling. Feature → Business Impact → Application: Packs of four with a weight of 3.696 kg per pack; Benefit: efficient logistics and lower shipping costs per install; Application: multi-cabinet deployments and large-scale projects.
Get a Quick Quote for a Rittal 8612280
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612280?
Enquire Now
FAQs
The TS 8612.280 uses a simple locating system and one-sided (or dual-sided) securing method. Position the rail on the vertical TS or VX SE outer mounting level, align with the enclosure’s punched slots, and fasten with the included assembly screws. This minimizes trial-and-error during mounting and speeds up panel integration.
Installation options include the vertical TS enclosure section on the outer mounting level, and it is suitable for enclosures with a mounting plate where two punched rails may already be included. This provides flexible retrofits and straightforward upgrades for TS and VX SE sections.
The rail is a punched rail with 18 x 38 mm cross-section, intended for W/D 800 mm. It is manufactured from sheet steel and ships in packs of four, with each pack weighing 3.696 kg. The supply includes assembly screws for quick installation.
Product data references ETIM 9 EC002625 and ECLASS 8.0 27189234, which support standardized procurement and compatibility. While explicit CE markings aren’t listed in the data, these classifications help with technical alignment and regulatory awareness during sourcing.
Using a standardized punched rail reduces installation time, minimizes tooling changes, and lowers maintenance downtime. The four-pack packaging improves logistics efficiency for large deployments, delivering faster cabinet builds and simpler future modifications, which translates to measurable labor savings and lower project risk.
