Rittal 8612520 TS 8612.520 Punched Section - ETIM EC002625
Part Number: 8612520
Quick Summary
Rittal 8612520 TS 8612.520 is a punched-section with mounting flange for inner mounting levels in VX SE enclosures. It helps avoid misalignment and reduces installation time by replacing slotted holes with captive nuts and threaded blocks. Aligned with ETIM 9 EC002625 and ECLASS 8.0 27189234, it ensures interoperability and procurement clarity across facilities. This solution supports efficient assembly and scalable rack layouts, complementing inner mounting levels and standard enclosure sections. Designed for 1,200 mm W/D inner mounting, it provides robust support while keeping wiring channels accessible. Customers benefit from plug-and-play installation and a long service life thanks to zinc-plated sheet steel and included assembly screws.
Product Information
Extended Description

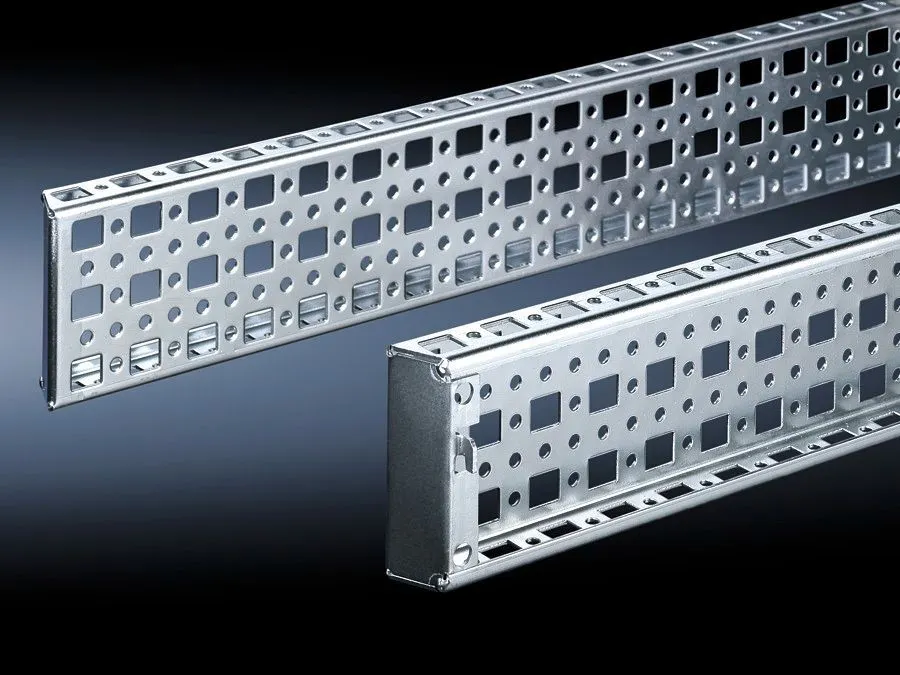

8612520 Rittal: TS TS punched section with mounting flange, 23 x 73 mm, for inner mounting level: W/D: 1200 mm
Article number
TS 8612.520
Product description
The alternative to the TS punched section with mounting flange 17 x 73 mm, with punchings for captive nuts/threaded blocks instead of the slotted holes top and bottom. Simply locate and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Installation options
On the vertical TS, VX SE enclosure section
To fit
Enclosure type: the inner mounting level | To fit width/depth: 1,200 mm
Packs of
4 pc(s).
Weight/pack
5.396 kg
Customs tariff number
73269098
EAN
4028177370555
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS TS punched section with mounting flange, 23 x 73 mm, for inner mounting level: W/D: 1200 mm
Feature: Material and finish is sheet steel with zinc plating. Business impact: Delivers corrosion resistance and long-term reliability in harsh cabinet environments, reducing maintenance cycles. Application: Ideal for inner mounting levels in 1,200 mm VX SE sections and similar TS enclosures. Feature: Mounting flange design with punchings for captive nuts and threaded blocks. Business impact: Speeds up assembly, minimizes misalignment, and eliminates the need for separate hardware searches. Application: Useful during rapid cabinet outfitting and when upgrading existing TS sections. Feature: Dimensions and compatibility with 1,200 mm W/D. Business impact: Ensures precise fit and predictable enclosure layouts, enabling scalable installations across multiple bays. Application: Fits standard VX SE enclosure sections and vertical TS members. Feature: Pack configuration and included hardware. Business impact: Four-piece packs with assembly screws reduce stock assortment, simplify logistics, and enable quick replenishment. Application: Ideal for project-wide rollouts and maintenance schedules. Feature: Documentation and standards alignment ETIM/ECLASS. Business impact: Improves procurement clarity, searchability, and cross-system compatibility, lowering total cost of ownership. Application: Fits with a wide range of Rittal accessories and enclosure components.
