Rittal TS 8612.550 TS Punched Section - Zinc-plated
Part Number: 8612550
Quick Summary
Rittal TS 8612.550 TS punched section provides secure inner mounting for 500 mm enclosures. Many installation projects struggle with mounting hardware that ignores captive nuts or threaded blocks, causing delays. Key references include ETIM 9 EC002625 and ECLASS 8.0 27189234, plus a zinc-plated sheet steel body for corrosion resistance. Designed to fit the inner mounting level in 500 mm wide enclosures, it helps standardize assemblies, reduce SKU counts, and shorten lead times. This, along with included assembly screws, lowers installation costs, simplifies field service, and improves overall cabinet uptime. With included assembly screws, it minimizes supplier variability and speeds up retrofit projects.
Product Information
Extended Description

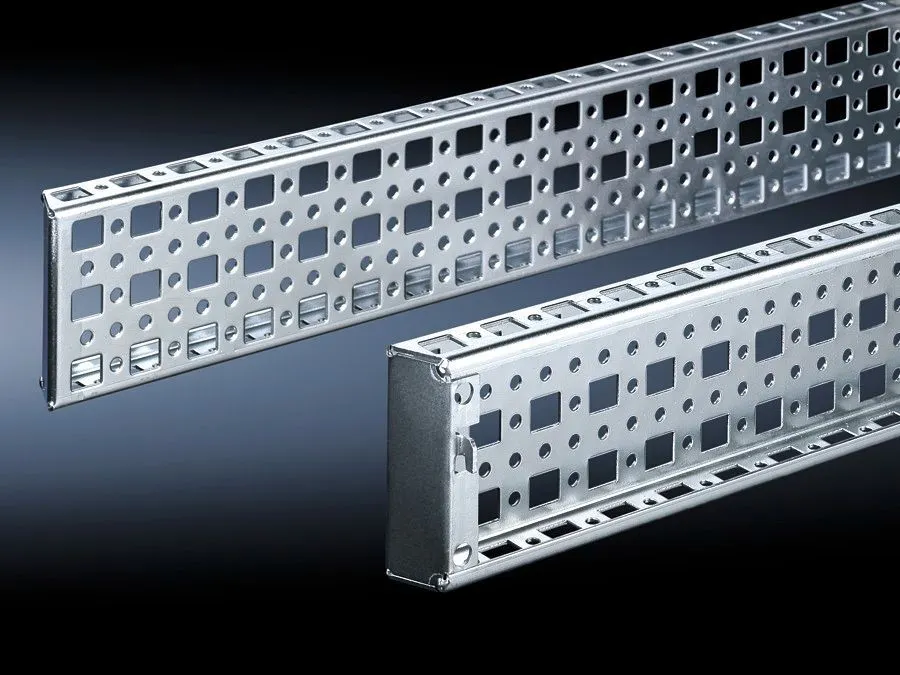

8612550 Rittal: TS TS punched section with mounting flange, 23 x 73 mm, for inner mounting level: W/D: 500 mm
Article number
TS 8612.550
Product description
The alternative to the TS punched section with mounting flange 17 x 73 mm, with punchings for captive nuts/threaded blocks instead of the slotted holes top and bottom. Simply locate and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Installation options
On the vertical TS, VX SE enclosure section
To fit
Enclosure type: the inner mounting level | To fit width/depth: 500 mm
Packs of
4 pc(s).
Weight/pack
2.284 kg
Customs tariff number
73269098
EAN
4028177236264
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS TS punched section with mounting flange, 23 x 73 mm, for inner mounting level: W/D: 500 mm
Feature: Mounting flange with captive-nut punchings replaces traditional slotted holes. Business Impact: Delivers precise alignment and faster, error-free location. Application: Ideal for inner mounting levels in 500 mm wide enclosures, enabling repeatable installs in production lines and control cabinets. Feature: Sheet steel construction with a zinc-plated finish. Business Impact: Enhances corrosion resistance, extending service life in harsh or damp environments. Application: Suitable for industrial automation panels and outdoor or semi-exposed installations where longevity matters. Feature: Assembly screws included; packs of four; weight per pack 2.284 kg. Business Impact: Reduces procurement complexity and on-site waste, streamlines stocking, and shortens project lead times. Application: Quick kit for installers upgrading or expanding Rittal systems. Feature: Installation option on vertical TS, VX SE enclosure sections. Business Impact: Facilitates seamless retrofits and expandable configurations. Application: Compatibility across TS families simplifies upgrades. Feature: Compliance and data alignment: ETIM 9 EC002625, ECLASS 8.0 27189234, and customs tariff 73269098. Business Impact: Improves procurement traceability and ERP integration. Application: Supports standard BOMs and cross-supplier sourcing. Industry context: The component is designed to integrate with standard Rittal enclosure ecosystems, contributing to overall manufacturing efficiency and predictable maintenance planning.
Get a Quick Quote for a Rittal 8612550
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612550?
Enquire Now
FAQs
Begin by aligning the 23×73 mm mounting flange with the inner mounting level of the 500 mm wide enclosure. Use the included assembly screws to secure captive nuts or threaded blocks, ensuring precise alignment before final tightening. This setup is designed for quick, repeatable installations on vertical TS and VX SE sections.
The part is a sheet steel, zinc-plated mounting section with a 23×73 mm flange. It ships in packs of four, weight 2.284 kg per pack, and is intended for inner mounting levels in 500 mm wide enclosures. It includes assembly screws and supports standard ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications for procurement.
Yes. The installation options indicate compatibility with vertical TS and VX SE enclosure sections, enabling straightforward retrofits and standardized mounting across Rittal enclosure families.
The part aligns with ETIM 9 EC002625 and ECLASS 8.0 27189234, with a zinc-plated sheet steel construction. It also lists the customs tariff number 73269098, supporting import and compliance processes for procurement and ERP systems.
Standardized mounting with captive nuts reduces misalignment, speeds installation, lowers SKU complexity, and extends cabinet longevity thanks to corrosion-resistant zinc plating. This translates to faster commissioning, easier maintenance, and lower total cost of ownership in automation panels.
