Rittal 8612650 TS punched section - inner mounting level
Part Number: 8612650
Quick Summary
Rittal 8612650 TS punched section is a rugged inner mounting level designed for 500 mm WD enclosures used in control panels and industrial cabinets. Installing heavy equipment inside confined enclosures can be time-consuming and prone to misalignment. Key classifications include ETIM 9 EC002625 and ECLASS 8.0 27189234, with the EAN 4028177267053 enabling reliable procurement data. This accessory supports efficient interior installation and offers durable, zinc-plated sheet steel construction, delivering faster assembly and enhanced serviceability for high-demand environments. By standardizing mounting on TS sections, technicians can reuse assembly parts across machines, reducing downtime and inventory complexity while maintaining consistent, robust fitment.
Product Information
Extended Description
8612650 Rittal: TS TS punched section without mounting flange, 45 x 88 mm, for inner mounting level: for WD: 500 mm
Article number
TS 8612.650
Design
for the inner mounting level
Product description

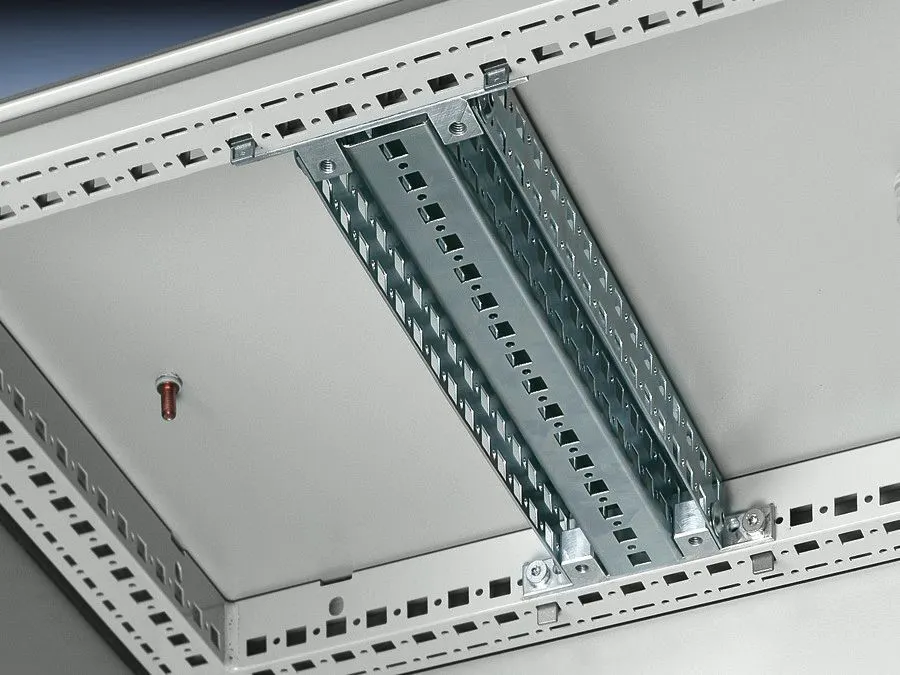

Heavy top-mounted equipment mounted directly on the internal surfaces (e.g. roof) is supported. Mounted on the side or rear, the enclosure can then be screw-fastened securely to the machine. The twin profile with 11 rows of holes offers numerous additional opportunities for interior installation.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
On the vertical and horizontal TS, VX SE enclosure section
To fit
Enclosure type: the inner mounting level | To fit width/depth: 500 mm
Packs of
2 pc(s).
Weight/pack
2.612 kg
Customs tariff number
73269098
EAN
4028177267053
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS TS punched section without mounting flange, 45 x 88 mm, for inner mounting level: for WD: 500 mm
Feature: Inner mounting level designed for 500 mm WD enclosures. Business Impact: Streamlines interior installation and ensures precise alignment for components, reducing rework and service time. Application: Ideal for control panels with space constraints in vertical or horizontal TS configurations. The result is faster commissioning and lower labor costs. Feature: 45 x 88 mm punched section with zinc-plated sheet steel. Business Impact: Provides durable, corrosion-resistant support that extends enclosure life in challenging industrial environments. Application: Suitable for areas with exposure to moisture or coupling with stainless or coated components. Feature: Includes assembly parts and ships in packs of two. Business Impact: Simplifies procurement and reduces project stocking complexity, lowering total cost of ownership. Application: Makes reordering straightforward for multi-unit installations. Feature: Installation options for vertical and horizontal TS, VX SE enclosure sections. Business Impact: Maximizes compatibility across Rittal enclosures and streamlines retrofits or expansions. Application: Useful during line upgrades or modular cabinet integrations in automation environments. Feature: Material and surface finish specifics. Business Impact: Zinc-plated sheet steel balances strength with cost-efficiency, delivering reliable mechanical performance while controlling maintenance cycles. Application: Suitable for standard industrial cabinets and control housings in manufacturing facilities.
Get a Quick Quote for a Rittal 8612650
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612650?
Enquire Now
FAQs
Yes. The TS 8612650 is designed for the inner mounting level in 500 mm wide enclosures and supports mounting on both vertical and horizontal TS sections, including VX SE variants. Packs of two units are supplied with assembly parts to simplify installation and ensure a secure fit within standard 500 mm WD cabinets.
Key specs include a 45 x 88 mm punched section, sheet steel material, zinc-plated surface finish, and a packaging of two units with assembly parts. It is intended for inner mounting levels, supports WD 500 mm, and is listed under ETIM 9 EC002625 and ECLASS 8.0 27189234 for precise classification.
The inner mounting level provides a rigid, standardized interface for interior components, reducing misalignment and speeding up assembly. With pre-included assembly parts and compatibility with vertical and horizontal TS, VX SE sections, it minimizes custom fabrication and supports repeatable, scalable mounting across multiple enclosures.
This TS punched section is classified under ETIM 9 EC002625 and ECLASS 8.0 27189234, with the EAN 4028177267053 for traceability. While not listing CE or IP ratings in the provided data, these classifications help ensure compatibility within standardized industrial automation ecosystems.
Consider installation options on both the vertical and horizontal TS, as well as VX SE enclosure sections. Ensure the enclosure width/depth matches 500 mm and that assembly parts are included in the pack. This part is designed to integrate smoothly with TS-based frames and supports efficient retrofits and modular expansions.
