Rittal TS 8612.680 Punched Section - EC002625
Part Number: 8612680
Quick Summary
Rittal TS 8612.680 is a punched-section component designed to support heavy top-mounted equipment inside enclosure interiors. When mounting on the side or rear, the enclosure can be screw-fastened securely to the machine, preserving enclosure integrity and simplifying integration. While the data sheet provides classifications such as ETIM EC002625 and ECLASS 8.0 27189234 for procurement alignment, actual compliance should be verified in your project specs. The zinc-plated sheet steel construction delivers durability in harsh industrial environments, and the inner mounting level designed for 800 mm WD supports flexible interior layouts. This accessory reduces custom fabrication costs and speeds up installation across TS and VX SE enclosure sections, delivering tangible efficiency gains for panel builders and system integrators.
Product Information
Extended Description
8612680 Rittal: TS TS punched section without mounting flange, 45 x 88 mm, for inner mounting level: for WD: 800 mm
Article number
TS 8612.680
Design
for the inner mounting level
Product description

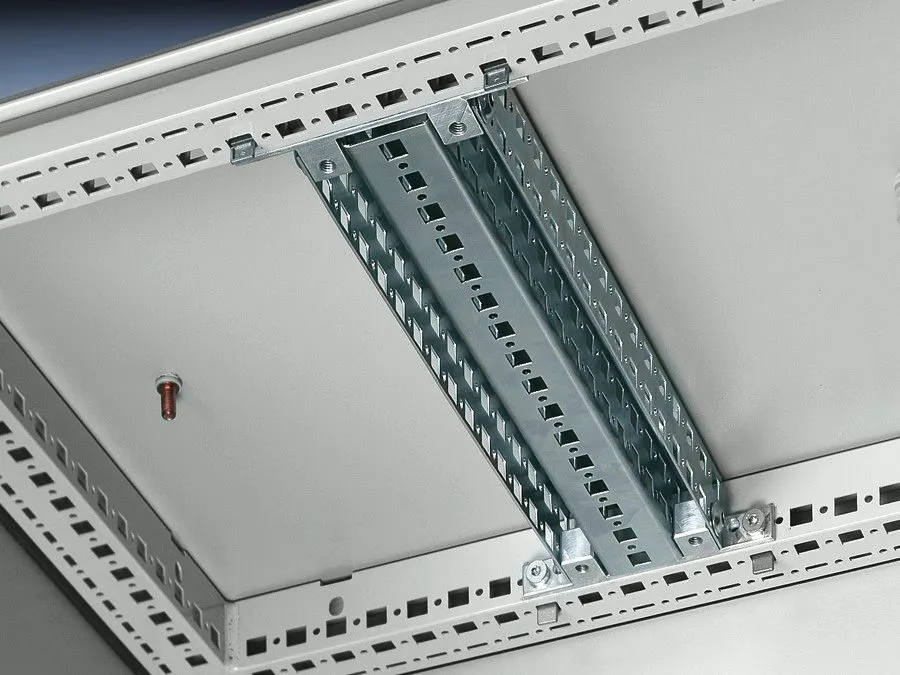

Heavy top-mounted equipment mounted directly on the internal surfaces (e.g. roof) is supported. Mounted on the side or rear, the enclosure can then be screw-fastened securely to the machine. The twin profile with 11 rows of holes offers numerous additional opportunities for interior installation.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
On the vertical and horizontal TS, VX SE enclosure section
To fit
Enclosure type: the inner mounting level | To fit width/depth: 800 mm
Packs of
2 pc(s).
Weight/pack
3.838 kg
Customs tariff number
73269098
EAN
4028177267077
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS TS punched section without mounting flange, 45 x 88 mm, for inner mounting level: for WD: 800 mm
The 45 x 88 mm punched TS profile provides a dedicated inner mounting level for flexible interior layouts. Business impact: enables installation without on-site drilling and minimizes modification time, lowering lead times and labor costs. Application: ideal for enclosures where heavy top-mounted equipment must be supported on internal surfaces before side or rear attachment. The design is without mounting flange, allowing secure screw-fastening to the machine after interior mounting, preserving enclosure aesthetics and rigidity. Business impact: reduces external bracing needs and preserves enclosure integrity in dynamic industrial environments. Application: compatible with vertical and horizontal TS, VX SE enclosure sections for streamlined integration. The material is sheet steel with a zinc-plated finish, delivering corrosion resistance in demanding settings. Business impact: longer service life and reduced maintenance costs. Application: suitable for factory floors, automation cabinets, and high-load panels. Each packs 2 pieces with a weight of 3.838 kg per pack, supporting scalable installations. Business impact: predictable handling and efficient stocking. Application: 800 mm WD inner mounting level width aligns with common enclosure formats. The installation options cover TS and VX SE sections, enabling quick adaptation to existing cabinet lines. Business impact: speeds up retrofits and reduces downtime. Application: industrial automation projects requiring robust interior mounting solutions. The product includes assembly parts, simplifying logistics and on-site assembly. Business impact: fewer separate fittings to source and verify, improving procurement certainty. Application: standardized components for repeatable cabinet builds. Overall, the TS 8612.680 offers compatibility, reliability, and cost efficiency for modern panel builders.
Get a Quick Quote for a Rittal 8612680
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612680?
Enquire Now
FAQs
Begin by confirming the 800 mm WD requirement and ensure compatibility with the vertical or horizontal TS or VX SE enclosure sections. Remove any obstructions from the interior, align the 45 x 88 mm profile to the mounting plane, and secure using the included assembly parts. The two-pack provides redundancy for multiple positions and reduces downtime from part shortages.
The TS 8612.680 uses a 45 x 88 mm punched profile designed for the inner mounting level with WD: 800 mm. It fits within TS and VX SE enclosure sections and is zinc-plated sheet steel, offering secure interior mounting without requiring external mounting flanges. The weight per pack is 3.838 kg, with two parts per pack.
Yes. This punched-section component is designed to support heavy top-mounted equipment on internal surfaces, enabling secure side or rear attachment to the machine. Its steel construction and zinc-plated finish provide durability in industrial environments, while the inner mounting level supports rigid, vibration-resistant installations.
The TS 8612.680 is classified in ETIM as EC002625 and ECLASS 8.0 as 27189234, aligning with common industrial procurement taxonomies. It carries the EAN 4028177267077 and a customs tariff code of 73269098, supporting accurate logistics and compliance documentation.
Using the TS 8612.680 reduces on-site fabrication and assembly time by providing a ready-made inner mounting solution, with assembly parts included. The 2-pack configuration lowers stocking costs, while compatibility with TS and VX SE sections streamlines retrofits and standardizes interior mounting across multiple enclosure lines.
