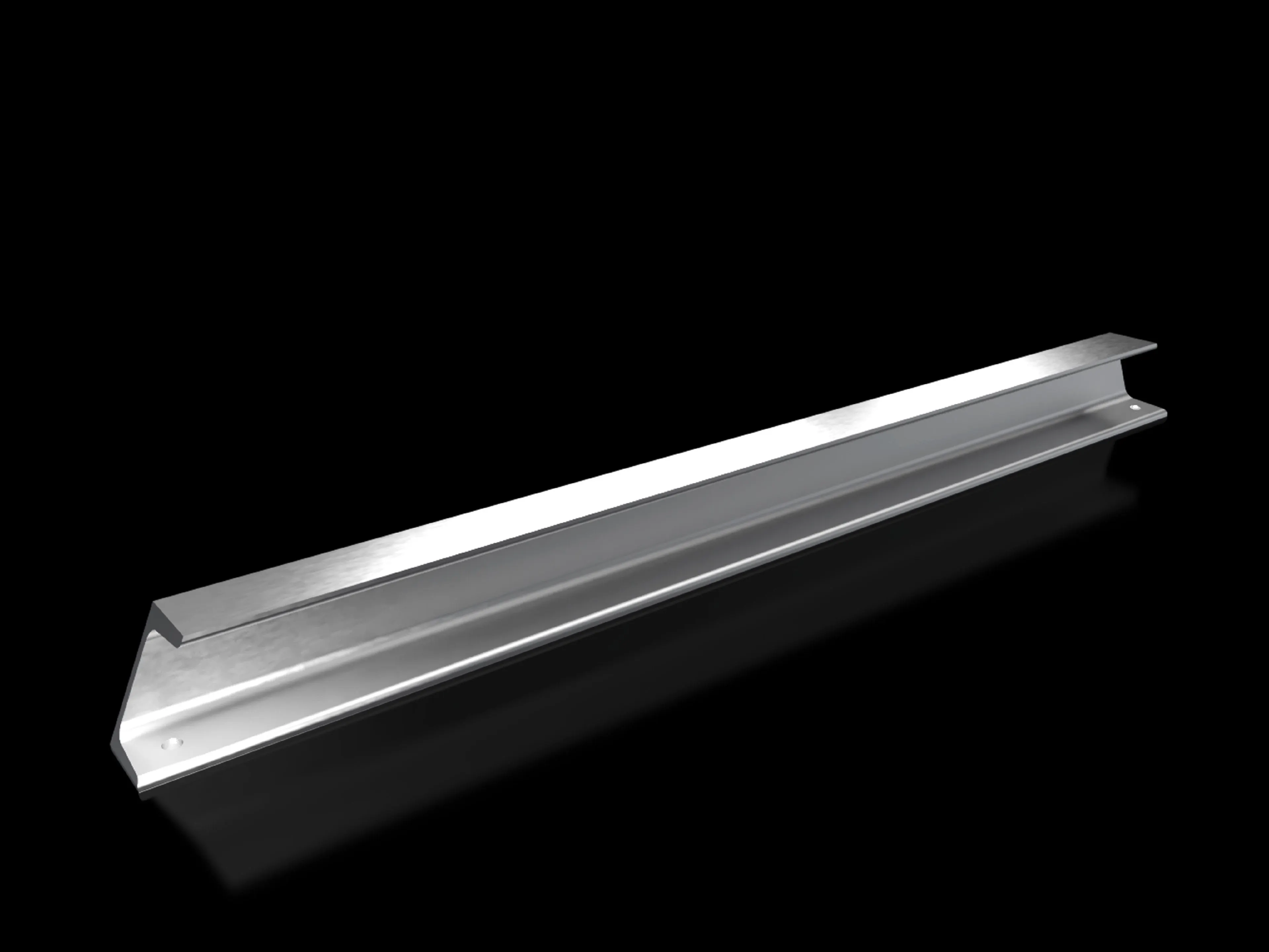

Rittal TS 8612.980 TS Support rail - Zinc-plated steel
Part Number: 8612980
Manufacturer
Rittal
Part number
8612980
Alt Part Number
TS 8612.980
Quick Summary
Rittal TS 8612.980 TS Support rail securely mounts heavy equipment like transformers. Engineers often struggle with stable mounting in VX or TS enclosures where space and alignment are critical. In this category, CE compliance and IP-rated protection are common expectations, with SIL compatibility depending on the connected equipment. This accessory simplifies installation with pre-matched assembly parts, clear weight specifications, and predictable mounting for reliable long-term operation, reducing field labor and project risk. Its zinc-plated steel construction provides corrosion resistance in demanding electrical installations, supporting costly assets such as base isolators.
Product Information
Extended Description
8612980 Rittal: TS Support rail 65 x 42 mm, for TS, SE, for W: 800 mm
Article number
TS 8612.980
Product description
For heavy installed equipment such as base isolators or transformers.
Material
Steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
On the inner mounting level of the VX enclosure section
To fit
Enclosure type: VX | TS | VX SE | Width: = 800 mm
Packs of
2 pc(s).
Weight/pack
10.434 kg
PCF per pack (cradle-to-gate)
39.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177522886
ETIM 9
EC001285
ECLASS 8.0
27189234
Product description
TS Support rail 65 x 42 mm, for TS, SE, for W: 800 mm
Feature: 65 x 42 mm rail profile and 800 mm width; Business Impact: enables stable mounting for heavy electrical equipment; Application: suited for base isolators and transformers inside TS and VX enclosures. Feature: Steel construction with zinc-plated surface finish; Business Impact: durable, corrosion-resistant hardware that lowers maintenance costs over the asset life; Application: industrial environments with harsh exposure. Feature: Supplied with assembly parts and two-pack configuration; Business Impact: reduces procurement steps and speeds up installation, cutting on-site labor and scheduling risk; Application: rapid deployment across multiple cabinets. Feature: Compatibility with VX, TS, and VX SE enclosure families; Business Impact: minimizes fitment issues and engineer rework; Application: 800 mm wide enclosures standard. Feature: Inner mounting level installation option; Business Impact: simplifies integration into existing VX mounting studies; Application: precise alignment and load transfer. Feature: Weight per pack 10.434 kg and 2 packs per order; Business Impact: predictable handling and shipping planning; Application: project logistics and cost control.
Get a Quick Quote for a Rittal 8612980
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8612980?
Enquire Now
FAQs
The TS 8612.980 fits the VX, TS, and VX SE enclosure families with a width of 800 mm. It is designed to be installed on the inner mounting level of the VX section and is supplied as a two-pack with accompanying assembly parts, ensuring a clean, compatible fit across TS and SE systems.
Install the rail on the inner mounting level within the VX enclosure section using the supplied assembly parts. Ensure alignment with the enclosure’s mounting rails and secure all fasteners. The two-pack configuration simplifies site logistics, and weight per pack (10.434 kg) aids handling and planning for installation crews.
The rail is designed for heavy equipment such as base isolators or transformers inside TS and VX enclosures. While exact load ratings depend on the mounted assembly, the product is specified at 10.434 kg per pack with two packs per order, supporting precise load transfer and stable installation in demanding electrical installations.
The provided data highlights material and finish (steel, zinc-plated) and enclosure compatibility, with typical industry expectations like CE marking and IP protection in this product class. For project qualification, verify CE compliance and enclosure-specific standards with your procurement team or Rittal representative, especially for mission-critical installations.
By delivering pre-matched assembly parts, a defined 800 mm width, and inner-m mounting level compatibility, the rail reduces on-site configuration steps and misalignment risk. This translates to faster commissioning, decreased labor hours, and long-term reliability for assets such as transformers and base isolators in industrial facilities.
