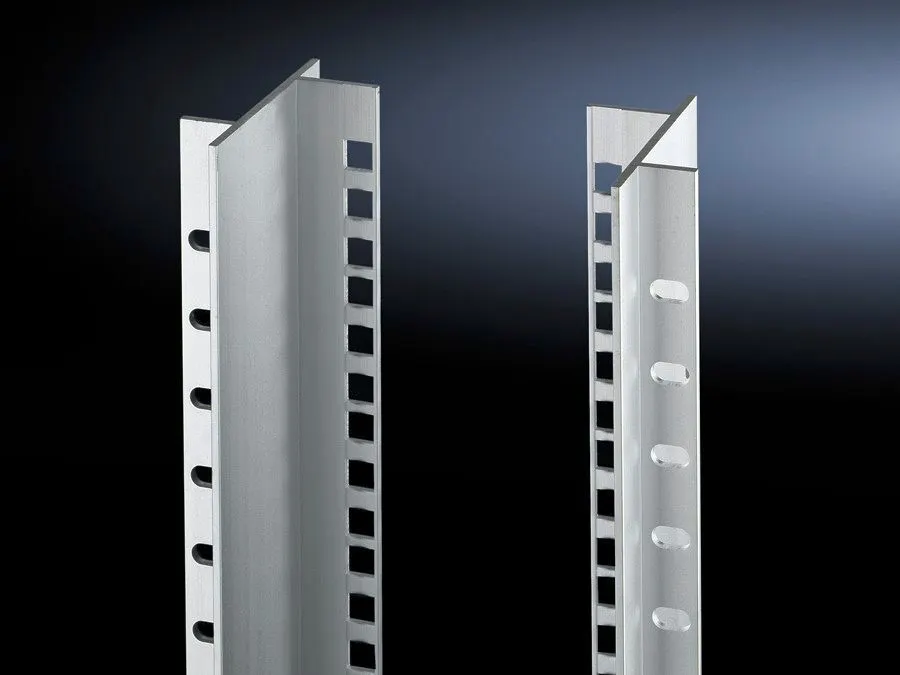

Rittal TS 8613000 Adaptor Sections - 482.6 mm depth (19")
Part Number: 8613000
Quick Summary
Rittal TS Adaptor sections enable precise subrack installations inside TS enclosures. This solution streamlines the mounting process for partial assemblies, minimizing waste and reducing installation time. It aligns with industry classifications ETIM EC002625 and ECLASS 27189234, supporting procurement accuracy and interoperability across supplier catalogs while remaining mindful of regional compliance expectations such as CE where applicable. For teams managing standardized rack configurations, these adaptor sections offer predictable dimensions and repeatable results. By enabling 42 U capacity and a 600 mm wide fit, the system delivers consistent performance in automation cabinets and data-center enclosures, delivering measurable business value through faster builds, easier maintenance, and improved interoperability across vendor ecosystems.
Product Information
Extended Description
8613000 Rittal: TS Adaptor sections, 482.6 mm (19'') for TS, for H: 2000 mm, 42 HE
Article number
TS 8613.000
Product description
For the installation of subracks and other equipment. Adaptor sections are easily shortened for partial assemblies.
Material
Extruded aluminium section
Supply includes
Assembly parts
Units
42 U
Installation dimensions
Installation depth for components:Â 482.6 mm | Installation width for components:Â 19"
Note
The 482.6 mm (19") measurement applies when mounting on the frame of 600 mm wide enclosures.
To fit
Enclosure type:Â TS | Width:Â = 600 mm | Height:Â = 2,000 mm
Packs of
4 pc(s).
Weight/pack
7.452 kg
Customs tariff number
76042990
EAN
4028177212176
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Adaptor sections, 482.6 mm (19'') for TS, for H: 2000 mm, 42 HE
Adaptor sections provide a 482.6 mm installation depth tailored for TS enclosures, delivering precise alignment for subracks and equipment. Business impact: reduced rework and improved mounting accuracy, which translates to faster project timelines and lower labor costs. Application: ideal for 600 mm wide, 2,000 mm high TS frames in automation and process environments. The extruded aluminium construction delivers high rigidity with manageable weight, enabling easier handling on site and lower transport costs. Weight per pack at 7.452 kg and packs of four streamline stocking, shipping, and on-site deployment, boosting inventory efficiency and reducing downtime during rack assembly. The 42U capacity supports standard modular rack layouts, while the supplied assembly parts simplify installation and ensure consistent results. This solution also accommodates shortening for partial assemblies, minimizing material waste and supporting lean manufacturing initiatives. Compatible with TS enclosures and compatible with subrack mounting standards, it helps engineers standardize fixtures across multiple lines and sites.
Get a Quick Quote for a Rittal 8613000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8613000?
Enquire Now
FAQs
TS adaptor sections are designed to mount within TS frames, offering a precise 482.6 mm installation depth and 600 mm width to accommodate standard 42U subracks and equipment. They ship as four-pack sets and include assembly parts for straightforward, repeatable mounting, ensuring alignment across multiple racks and sites. This reduces rework and speeds up project timelines.
Key dimensions are 482.6 mm installation depth, 600 mm enclosure width, and 42U height capacity, with overall length suitable for 2,000 mm tall frames. Packs of 4 pieces weigh 7.452 kg per pack, which simplifies handling and stocking. Using these specs helps accurate rack budgeting, component ordering, and space planning in automation and control cabinet projects.
Yes. The adaptor sections are explicitly specified for 600 mm wide TS enclosures and a total height of 2,000 mm, delivering a 42U capacity. This alignment supports standard TS rack configurations used in automation, electrical control, and data-center applications, ensuring a consistent, repeatable fit across multiple installations.
The product references ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications, which aid in procurement consistency and interoperability. While the datasheet emphasizes these cataloging standards, verify your regional regulatory requirements (for example CE/UL and IP ratings) with your enclosure and system integrator to ensure full compliance for your installation.
Using the TS adaptor sections reduces installation time through pre-cut, easily shortened sections and predefined 42U capacity, minimizing field cuts and rework. Lightweight aluminium construction lowers handling effort, while the four-pack packaging streamlines inventory and logistics. Over a typical project, you’ll see faster rack assembly, lower labor costs, and improved lifecycle reliability due to repeatable, reliable mounting.
